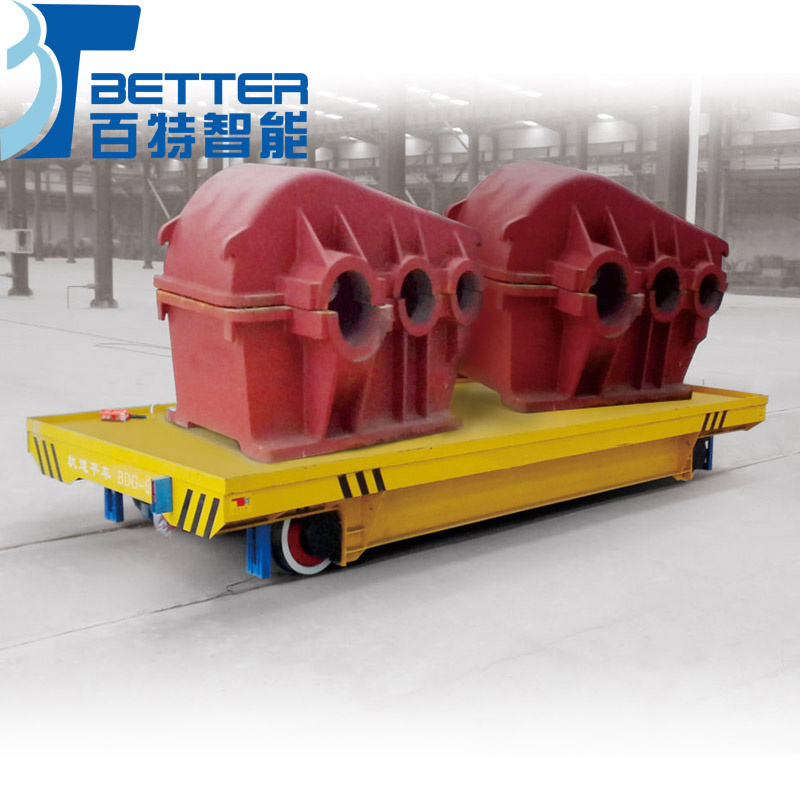

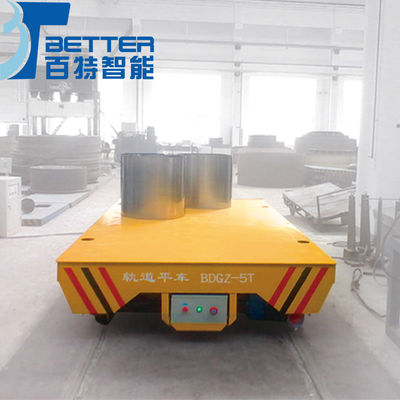

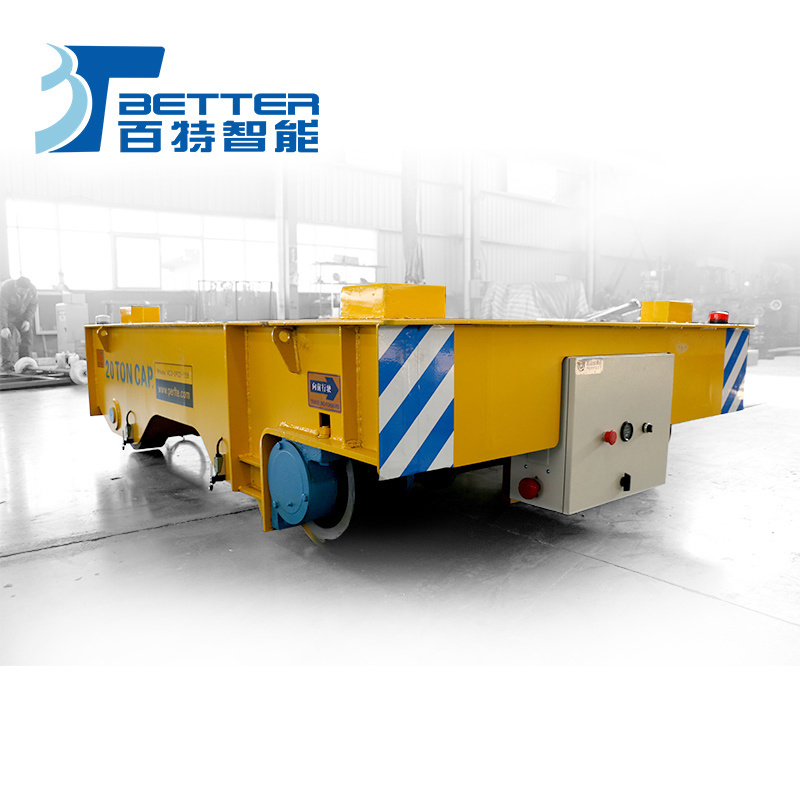

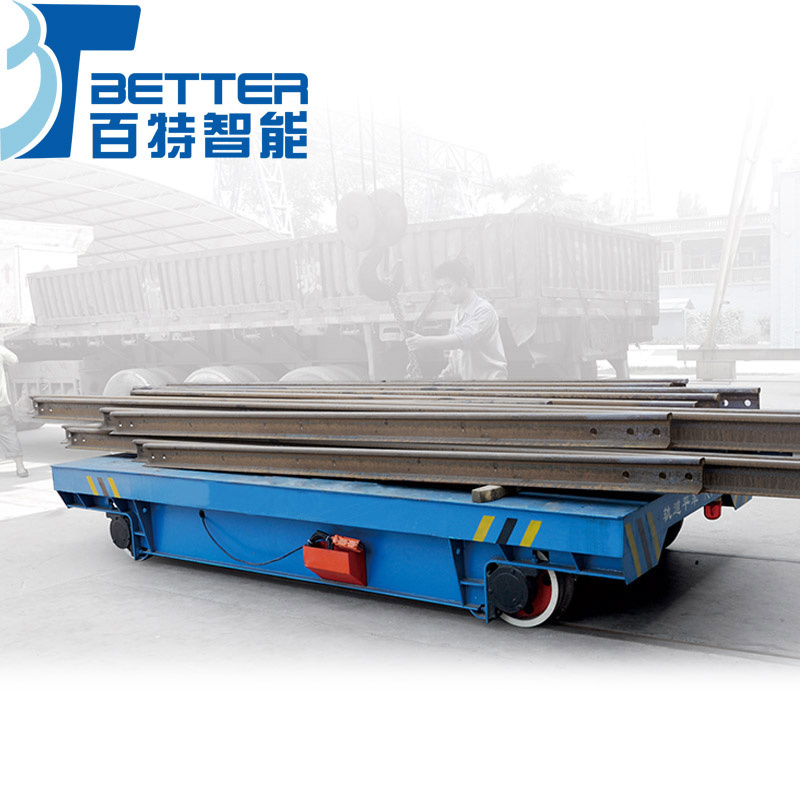

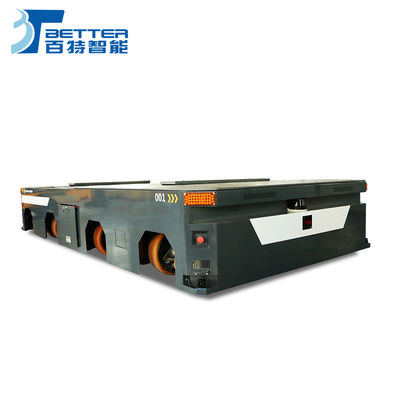

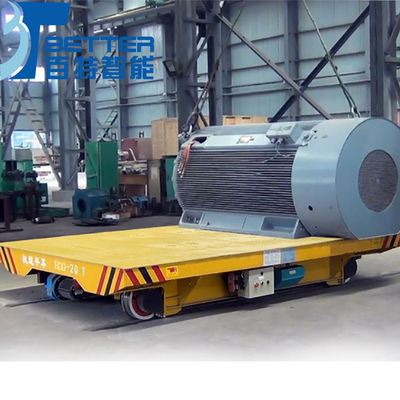

220 Ton Heavy Loads Warehouse Transportation Electric Platform Transfer Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BXC |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 220 Ton platform transfer cart,Electric platform transfer cart,Heavy Loads flat transfer cart |
||
Product Description
220Ton Heavy Loads Warehouse Transportation Electric Platform Transfer Cart
Designed for large-scale warehouses and logistics centers, this heavy-duty electric cart efficiently handles the transportation of bulky and heavy loads. Its low-profile platform, reinforced structure, and multi-wheel balancing system ensure smooth and precise operation under a 220-ton load.
Compatible with rail guidance, laser navigation, or magnetic strip navigation, the cart supports automated route planning and accurate cargo positioning. The anti-slip platform can be equipped with securing accessories for various heavy goods. With an integrated management system for real-time status and cargo monitoring, it significantly improves warehouse logistics efficiency and safety, making it ideal for storing heavy equipment, building materials, and industrial supplies.
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
| Application |
Warehousing and logistics for super-heavy goods
In special heavy-duty warehouses (such as steel warehouses and equipment warehouses), it is responsible for the entry and exit of 220-ton class overweight goods (such as large equipment and heavy steel) and the relocation within the warehouse.
Large-span warehouse cross-regional transfer
With the stable drive of the electric platform, the efficient and reliable transfer of overweight goods between different functional areas (such as the receiving area, storage area, and shipping area) within a large warehouse is achieved.
Connection of heavy cargo loading and unloading points
Drive directly to the loading and unloading platform, precisely connect with the hoisting equipment or truck, complete the rapid loading and unloading of overweight goods, and optimize the loading and unloading operation process.
In special heavy-duty warehouses (such as steel warehouses and equipment warehouses), it is responsible for the entry and exit of 220-ton class overweight goods (such as large equipment and heavy steel) and the relocation within the warehouse.
Large-span warehouse cross-regional transfer
With the stable drive of the electric platform, the efficient and reliable transfer of overweight goods between different functional areas (such as the receiving area, storage area, and shipping area) within a large warehouse is achieved.
Connection of heavy cargo loading and unloading points
Drive directly to the loading and unloading platform, precisely connect with the hoisting equipment or truck, complete the rapid loading and unloading of overweight goods, and optimize the loading and unloading operation process.
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
