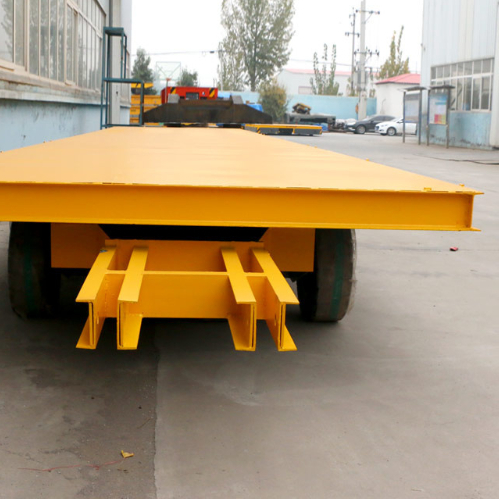

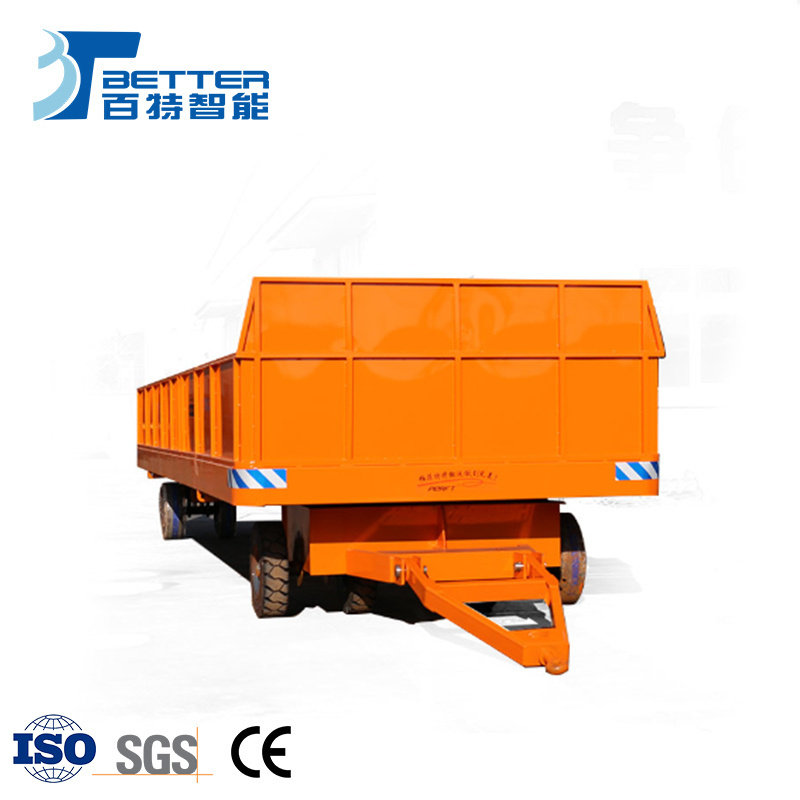

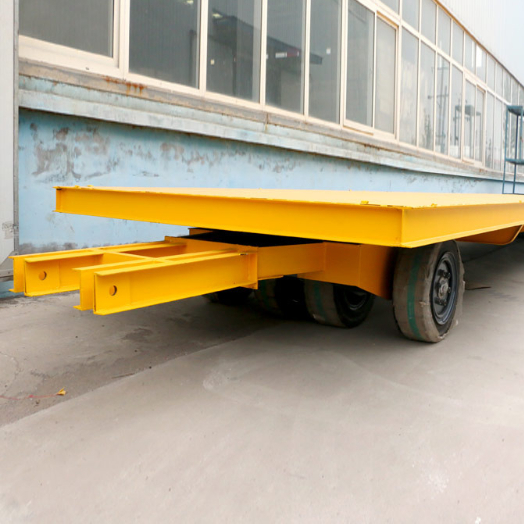

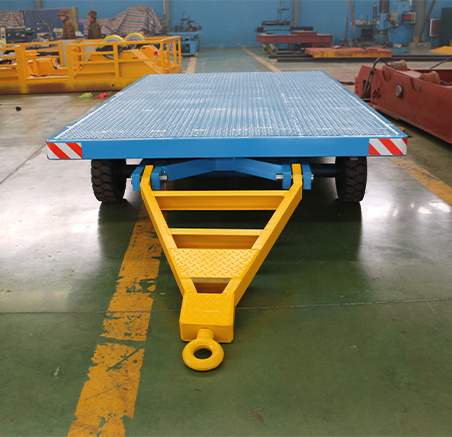

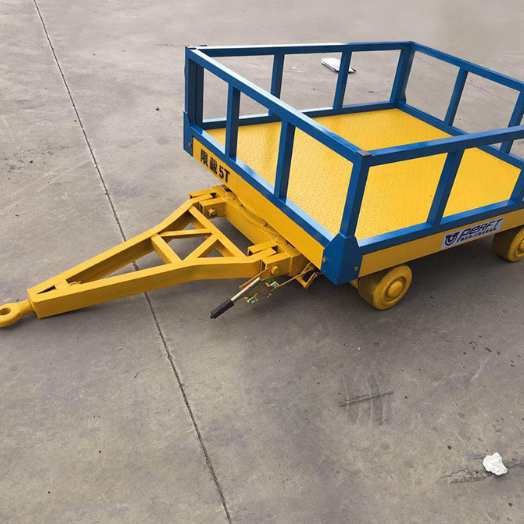

5t Yellow Four Side Rails Baggage Dolly Trailer Industrial Trailer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 5t Industrial Trailer,Baggage Industrial Trailer,Four Side Rails steel trailers |
||
Product Description
Car Trailers, Equipment Trailers, Landscape Trailers
Product Description
1. Introduction of industrial workshop trailers
The workshop trailers are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift (of adequate capacity). They are a cost effective alternative to purchasing another powered transfer cart. For on-rail applications, a winch can be used to move carts. Pull type transfer carts are versatile and can be easily customized to suit applications.
Henan BETTER Material Handling line of Industrial Trailers include vary models and features to meet the needs of all major industries including Automotive, Basic Metals, Heavy Manufacturing, Rigging, Stamping, and more.
Product Parameters
2. Paremeters of industrial workshop trailers
| Model | BP-2t | BP-5t | BP-10t | BP-16t | BP-20t | BP-25t | BP-30t | BP-40t | BP-50t | BP-63t | BP-80t | BP-100t | BP-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
3. Application of industrial workshop trailers
The transfer carts vehicle of BETTER allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production lien, and son on.
4. Features of industrial workshop trailers to customize
-----Towed by forklifts , tractor or other machine.
------Welded construction of structural steel
------Two swivel casters and two rigid casters
------Coupling connection for towing
5. Special function of industrial workshop trailers to customize
• Urethane wheels
• Steel rail wheels
• Wheel brakes
• Wheel locks
• Fork lift pockets for transporting
• Weigh scales
• Stainless steel decking
