30 Tons Heavy Loads Flat Cart Self Propelled Transfer Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BXC |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Highlight | 30 Tons self propelled transfer cart,Heavy Loads self propelled transfer cart,Flat agv material handling |
||
Product Description

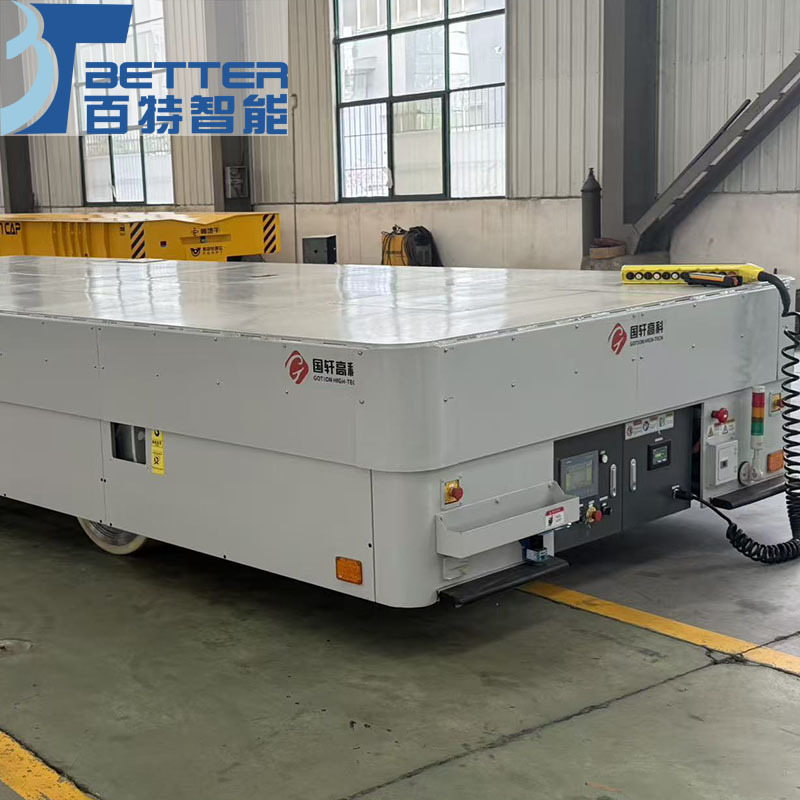

30 tons Heavy Loads Flat Car Self-Propelled Transport Platform
Introduction of Self-Propelled Transport Platform
Our line of Self-Propelled Transport Platform are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Customized of Self-Propelled Transport Platform
Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated Self-Propelled Transport Platform, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Component
| Model | AGV-5T | AGV-20T | AGV-30T | AGV-40T |
| Carrier type | Backpack | |||
| Appearance dimensions(mm) | 3200L*2000W*800H | 4000L*2000W*800H | 3500L*2200W*800H | 5200L*2000W*800H |
| Load(customizable) | 5,000KG | 20,000KG | 30,000KG | 40,000KG |
| Navigation method | Magnetic stripe navigation | Magnetic stripe navigation | Magnetic navigation | Magnetic stripe navigation |
| Driving mode | Wheel drive | Wheel drive | Steering wheel drive | Wheel drive |
| Communication method | Industrial WIFI | |||
| Walking direction | Forward/Backward/Up/down | Forward/Backward/Up/down | Move forward/backward/Drive in a straight arc/Turn left or right | Forward/Backward/Up/down |
| Operating speed | 20m/min | |||
| Stop accuracy | ±10mm | |||
| Navigation accuracy | ± 10mm | |||
| Working mode | 12 hours | 8 hours | 24 hours | 12 hours |
| Climbing ability | ≦ 3% | |||
| Special function | Lifting and lowering | Remote call | ≧4200mm(Magnetic strip laying radius) | Fixed mold |
| Power supply mode | Battery-powered | Battery-powered | Automatic charging/manual charging/battery replacement | Battery-powered |
| Safety sensing range | Adjustable within 3 meters, emergency braking distance less than 20mm | |||
| Alarm form | Dual alarm: voice playback and warning light indication | |||
| Safety protection | Front and rear area scanning obstacle detection sensors + emergency stop button | |||
Application of Self-Propelled Transport Platform
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Applicable sites of Self-Propelled Transport Platform
PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
Advantages of Self-Propelled Transport Platform
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Our Factory
Q&A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
