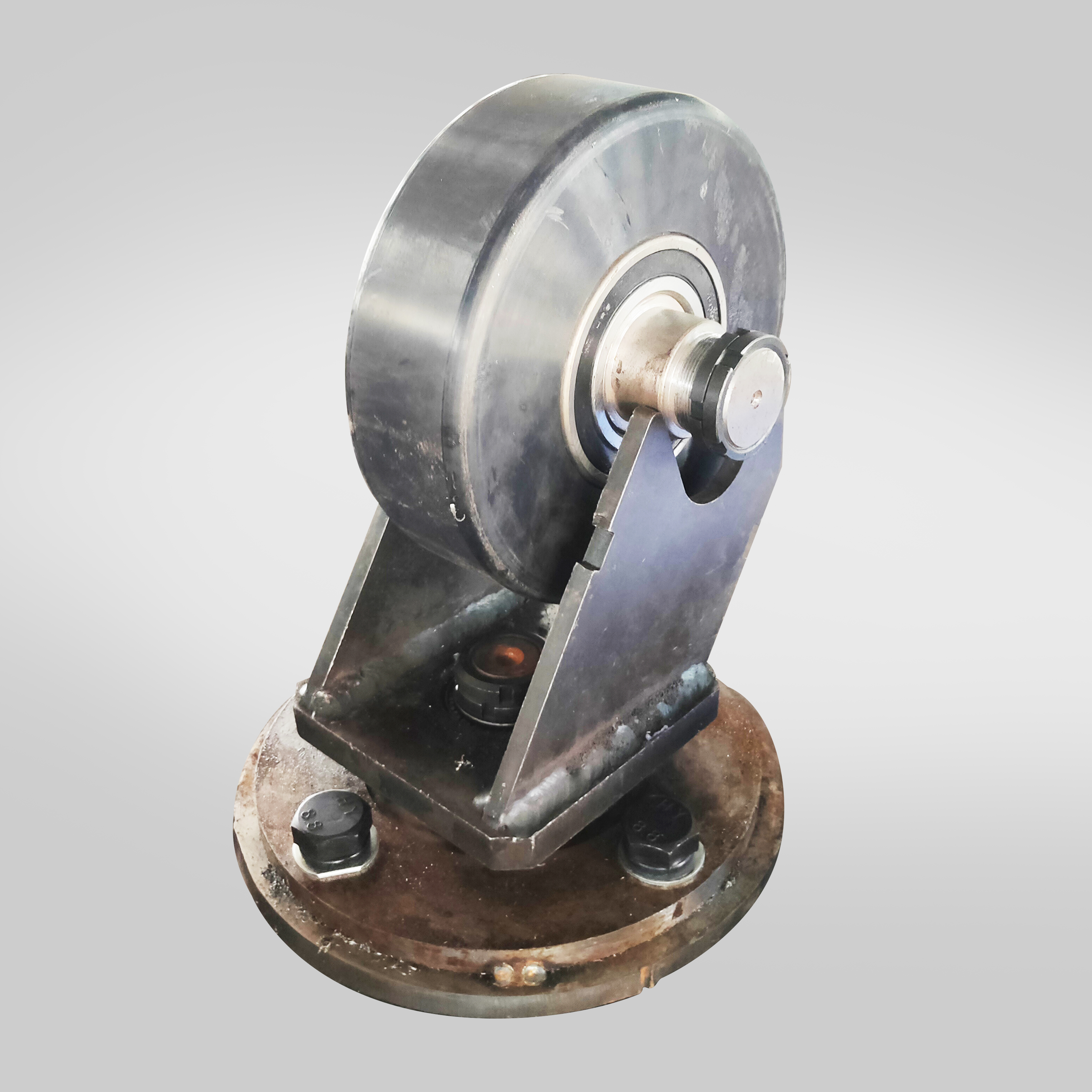

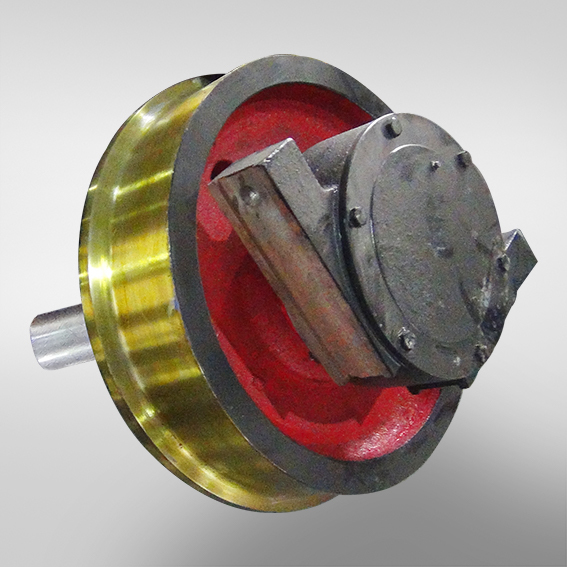

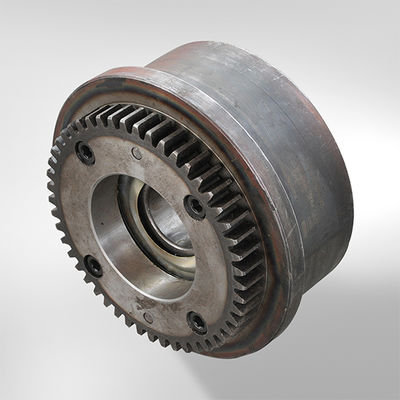

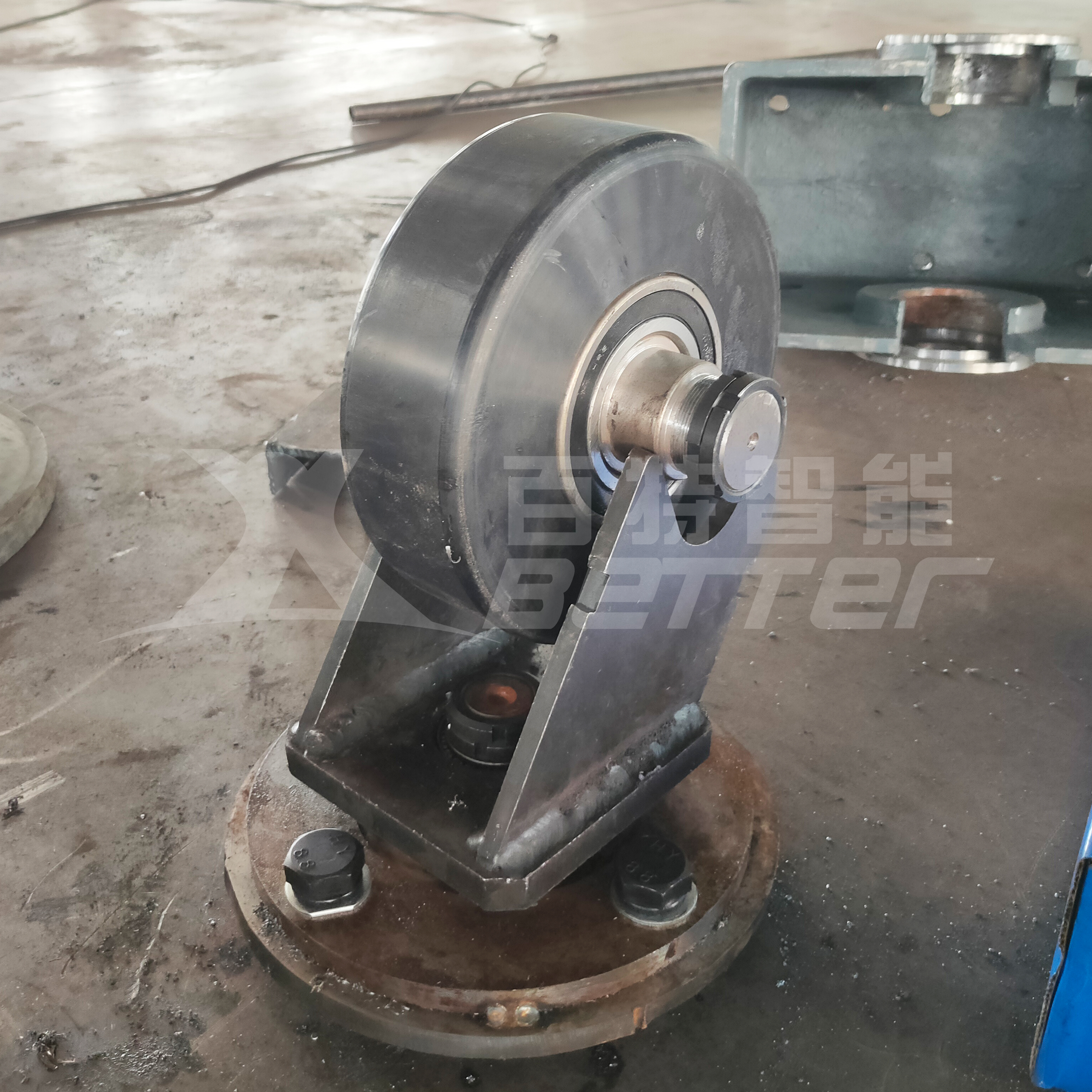

Steel Casting Railway Wagon Wheel For Rail Transfer Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | Wheel |
| Minimum Order Quantity | 50 Piece |
| Price | US$100-150 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Wheel | Product Name | Steel Casting Railway Wagon Wheel |
|---|---|---|---|
| Usage | Heavy Duty Material Transportation | Application | Steel Industry, Factory, Warehouse, Port |
| Material | Steel | Load Capacity | 1-1500 Tons |
| Control Mode | Pendant/Remote/PLC Control | Control Way | Hand Pendant/Remote Controller |
| Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Transport Package | Other |
| Trademark | BETTER | Origin | China |
| HS Code | 84289090 | Production Capacity | 5000/Years |
| Highlight | Steel Casting railway wagon wheel,1500T railway wagon wheel,1000kg railway carriage wheels |
||
Product Description
Steel Casting Railway Wagon Wheel For Rail Transport Cart
1) Material: 60#,65#,65Mn,50SiMn,42CrMoA (according to client's requirement)
2) wheel diameter: Φ150-1200mm
3) Tread Hardness:300-380HB OR Trand surface and rim quench hardness: HRC45-55 Trand surface and rim quench depth: 15-18mm
4) Measuring & testing equipment:Projecting profile, roughness tester, hardness tester, concentricity tester ect, UT ultrasonic detecting instrument
5)Size:Special designs are available,Making according to clients demand.Precise measurement and surface finishes are available
6)Inspection:In-house and the third party.Inspection:all items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
7)Deliver Time: 10~45 days after order. good quality with reasonable price,timely delivery and great customer service.is finally manufactured to ensure that best quality product goes out in the market.
Production Process of Rail steel wheel,polyurethane steel wheel
1. Drawing control
Confidentiality-Be confidential to the customer's drawings.
Check- Technician checks the drawings and confirms dimensions
Confirmation - Confirm the production process & inspection process according to the drawings
2. Mold making control
Inspect the dimensions and material according to drawing.
Send test reports and photos to customers.
3. Raw Casting control
Produce according to the production tracking form
Use advanced inspection equipments to ensure internal quality of the product.
Check the test bar and record relevant information to each bulk.
Send the photos and test data of each step to customers.
4. Machining process control
Produce the samples according to the confirmed casting process.
Train the relevant staff before producing according to the machining and inspection process.
5. Packing and Delivery control
Determine the size & material of the box according to the shape & number of products.
Taking different anti-rust protection to products according the delivery time
Put dimensional reports, chemical & mechanical documents, test bar and photos into the packing box
Confidentiality-Be confidential to the customer's drawings.
Check- Technician checks the drawings and confirms dimensions
Confirmation - Confirm the production process & inspection process according to the drawings
2. Mold making control
Inspect the dimensions and material according to drawing.
Send test reports and photos to customers.
3. Raw Casting control
Produce according to the production tracking form
Use advanced inspection equipments to ensure internal quality of the product.
Check the test bar and record relevant information to each bulk.
Send the photos and test data of each step to customers.
4. Machining process control
Produce the samples according to the confirmed casting process.
Train the relevant staff before producing according to the machining and inspection process.
5. Packing and Delivery control
Determine the size & material of the box according to the shape & number of products.
Taking different anti-rust protection to products according the delivery time
Put dimensional reports, chemical & mechanical documents, test bar and photos into the packing box
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Company profile
Henan BETTER Handling Equipment Co., Ltd is a professional manufacturer of all kinds of wheels,with cheap price and good quality. The overhead Crane Wheel is our main products, We have our own forging shop,machining shop,heat treatment shop.
Rail steel wheel,polyurethane steel wheels have been exported to more than 30 countries,such as Namibia, Bahrain,Australia,South Africa ,etc.We can provide you the good quality product and best transport solution.
