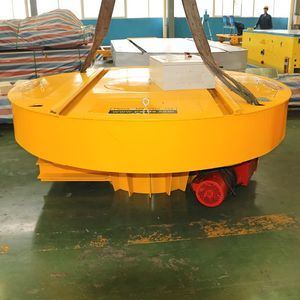

Insulated Rotary Rail Transfer Cart Electric Turntable 1-1500 Tons
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | BXC | Product Name | Heavy Load Transport Cart |
|---|---|---|---|
| Usage | Heavy Duty Material Transportation | Application | Steel Industry, Factory, Warehouse, Port |
| Material | Steel | Load Capacity | 1-1500 Tons |
| Control Mode | Pendant/Remote/PLC Control | Control Way | Hand Pendant/Remote Controller |
| Color | Red, Blue, Yellow, Black, Etc. | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | China |
| HS Code | 84289090 | Production Capacity | 3000/Years |
| Highlight | 1500 Tons rail transfer cart,Rotary rail transfer cart,1 Ton Electric Turntable |
||
Product Description
Insulated Rail Rotary Transfer Cart System
1. The introduction of Transfer Cart
3. Customizable of Transfer Cart
4. Application of Transfer Cart
5. Other products we can offer
7.Company and Certificates
8. Q & A: How to choose?
1. The introduction of Transfer Cart
This product is an insulated track-type intelligent transfer trolley specially developed for special industrial environments. Adopting an original insulated track system and anti-electric shock protection technology, it can operate safely in high-voltage environments, achieving precise transportation of large objects and 360° intelligent rotation positioning, and solving the material transportation problems in live-line operation scenarios.
2.Detail image of Transfer Cart
Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
3. Customizable of Transfer Cart
Mechanical Options Include:
1.Deck Railings
2.Wood Decking Material
3.Screw-Jack Lift Deck
4.Paint Color (customer specified)
5.Rail Guides
6.Floor Rail
7.End Stops
8.Urethane Wheels (not available on guided carts)
9.Live Axle
1.Deck Railings
2.Wood Decking Material
3.Screw-Jack Lift Deck
4.Paint Color (customer specified)
5.Rail Guides
6.Floor Rail
7.End Stops
8.Urethane Wheels (not available on guided carts)
9.Live Axle
4. Application of Transfer Cart
PERFECT focuses on the design and manufacture of high-performance Railway Transfer turntables. This equipment is mainly used to solve the problem of switching and connecting track flatcars between tracks in different directions.
Its core function is to achieve multi-directional diversion, precise positioning and direction conversion of rail vehicles within a limited space. For instance, in the metallurgical workshop, the turntable is used to transfer the flat car loaded with steel coils from the longitudinal main road to the transverse storage track. In the large manufacturing plant area, the turntable forms the core hub of the circular logistics network, significantly enhancing the flexibility and space utilization of the rail transportation system.
This device has reliable load-bearing capacity, can achieve precise positioning control, and can also be customized in design. It is an indispensable professional equipment for industrial rail logistics layout.
Its core function is to achieve multi-directional diversion, precise positioning and direction conversion of rail vehicles within a limited space. For instance, in the metallurgical workshop, the turntable is used to transfer the flat car loaded with steel coils from the longitudinal main road to the transverse storage track. In the large manufacturing plant area, the turntable forms the core hub of the circular logistics network, significantly enhancing the flexibility and space utilization of the rail transportation system.
This device has reliable load-bearing capacity, can achieve precise positioning control, and can also be customized in design. It is an indispensable professional equipment for industrial rail logistics layout.
5. Other products we can offer
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
6. Packing and Shipping
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
7.Company and Certificates
8. Q & A: How to choose?
Please provide the answers below:
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
