Intelligent Trackless Coil Transfer Truck, Efficient Replacement Of Truck/Forklift
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Duty Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | intelligent trackless coil transfer truck,efficient coil transfer cart,forklift replacement coil truck |
||
Product Description

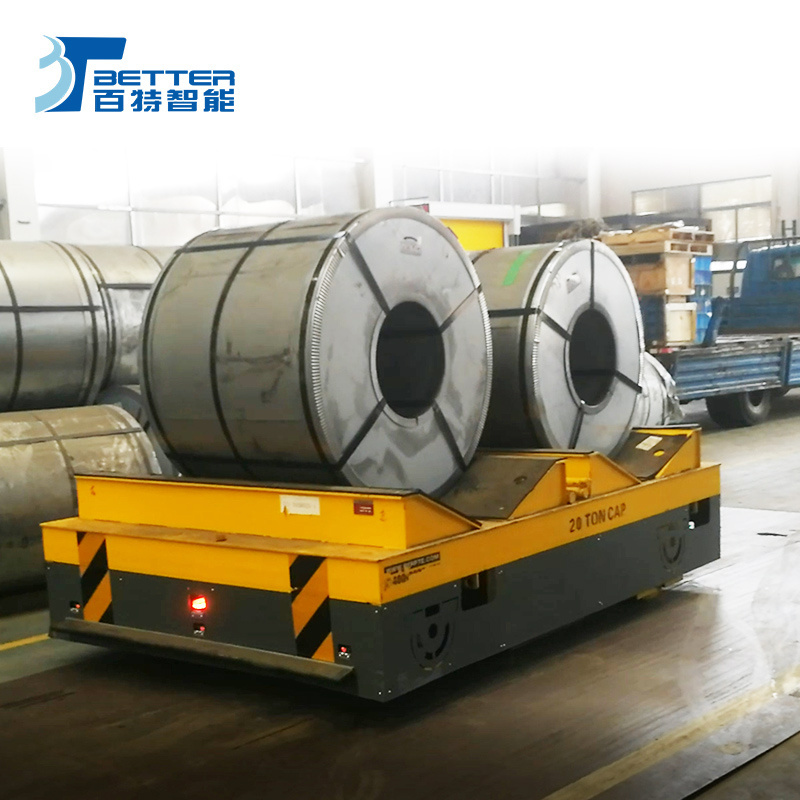

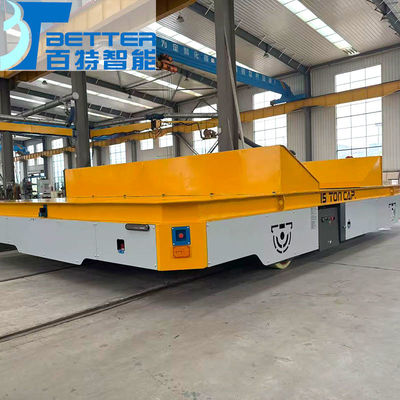

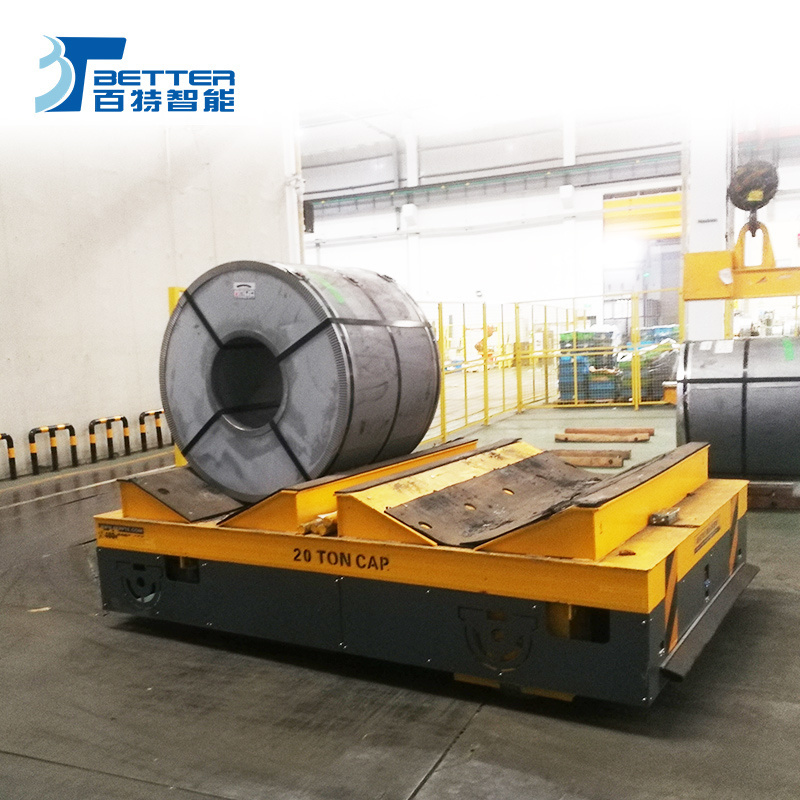

Intelligent Trackless Coil Transfer Truck
An efficient autonomous solution replacing traditional trucks and forklifts for coil material handling in industrial applications.
Product Overview
The intelligent trackless transfer vehicle is an autonomous mobile handling device specifically engineered for coil materials in steel, non-ferrous metals, and papermaking industries. Integrating laser navigation, servo drive, and intelligent electronic control technologies, it operates without requiring track installation and delivers precise, efficient, and flexible coil transfer within workshop environments.
- Load Capacity: Standard models from 5T to 300T with customizable tonnage options
- Coil Compatibility: Standard V-shaped saddle accommodates steel/paper coils with outer diameters of 800mm to 2500mm and inner diameters of 508mm/610mm
- Walking Mechanism: High-strength heavy-duty steel structure with four or six-wheel layout
- Drive System: Full servo motor drive with smooth operation and ±5mm positioning accuracy
- Navigation: Intelligent obstacle avoidance with automatic path planning
Product Details
Security Configuration:
- Three-level protection: Laser anti-collision + mechanical anti-collision strip + emergency stop button
- Sound and light warning systems with obstacle avoidance sensors
- Advanced anti-rollover control systems
Customized Functions:
Available with lifting, rotating, and specialized saddle mechanisms for cold storage, explosion-proof, and clean workshop environments.
Core Functions:
- Automatic Transportation: Complete material handling cycle from pickup to unloading
- Precise Alignment: Automatic alignment with uncoilers, rolling mills, and shelves (±5mm accuracy)
- Multi-Vehicle Dispatching: Centralized system for coordinated multi-vehicle operations
- Load Monitoring: Real-time display of load capacity, battery status, and operational parameters
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Typical Applications
Steel coil storage in steel plants, material racks for rolling mills, paper roll warehouses, slitting machine feeding, and intermediate turnover in aluminum foil/copper foil workshops.
Manufacturing Process
Packaging & Transportation
Complete machine packaging with anti-rust protection, key component safeguarding, and wooden crate packaging. Supports domestic land and sea transportation.
Company Strength
- 15 Years Expertise: Specialized in heavy-duty AGVs and intelligent logistics
- Modern Production Facility: In-house processing of large structural components
- Extensive Experience: Served over 200 enterprises including Baowu, Shagang, and Nine Dragons Paper
Customer Visits
We welcome customer visits to inspect our test workshop and implemented projects (appointment required) for direct equipment operation experience.
Certifications & Patents
Holds 12 national patents including trackless AGV drive structure and coil centering devices. Products certified with CE certification and ISO9001 quality management system.
Pre-Sale & After-Sale Services
Pre-Sale Services:
- Direct communication with 12-hour response guarantee
- Personalized service and customized solutions
- Warm reception for customer visits
- Flexible payment options
After-Sale Services:
- 12-month warranty for complete machine
- 24/7 technical support via phone, email, WhatsApp/Skype
- Comprehensive English manuals and operation videos
- Overseas engineer service availability
- Repair technology support and replacement parts during warranty
- Discounted pricing for replacement parts after warranty period
