Heavy Duty Battery Powered Transfer Cart with Intelligent Electric Drive and Modular Design for Handling of Overweight Molds and Presses
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | heavy duty battery transfer cart,intelligent electric drive transfer cart,modular transfer cart for molds |
||
Product Description

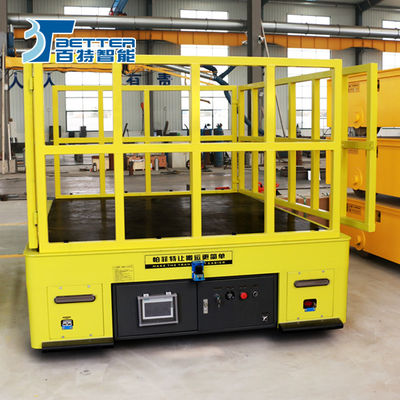

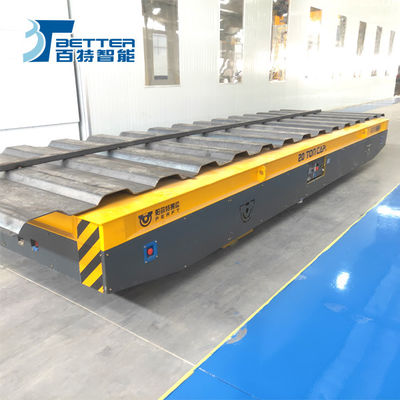

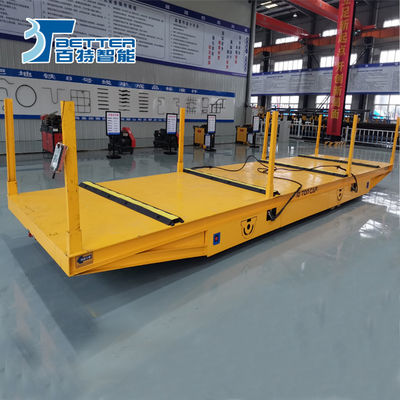

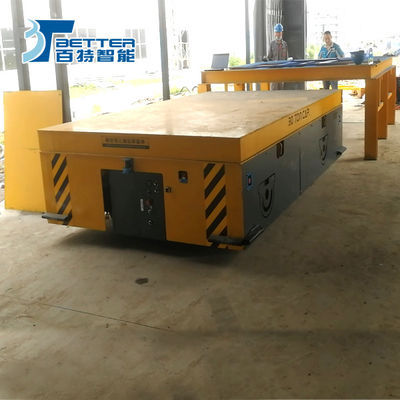

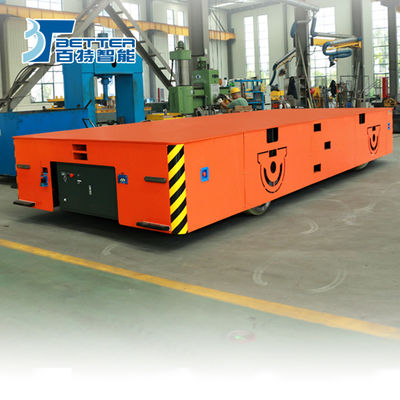

Heavy Duty Battery Powered Transfer Cart
This battery-powered transport vehicle is specially designed for the heavy manufacturing industry, featuring an innovative intelligent electric drive system and modular architecture. It safely, efficiently, and flexibly transports super-heavy molds, press parts, and large industrial equipment, solving the pain points of traditional handling methods such as high risk, low efficiency, and reliance on fixed infrastructure.
Core Configuration
- Drive System: High-torque intelligent electric drive wheel set with vector control technology for smooth start/stop and precise speed regulation
- Power System: High-energy-density lithium battery pack with smart charger and quick battery swap interface
- Load Capacity: Standard models range from 1 ton to 300 tons with modular combination capability
- Structural Design: Fully modular steel structure platform with expandable bridge modules
- Control System: Integrated intelligent controller supporting handheld remote control, cab operation, and automatic route operation
Core Functions
- Intelligent Electric Drive: Integrated motor, reducer and brake design for fast response and energy efficiency
- Modular Expansion: Standard bridge modules and connecting beams for quick combination/disassembly
- All-round Movement: Optional omnidirectional gear train for straight, sideways, diagonal travel and in-place rotation
- Ultra-low Pressure Design: Multiple wheelset load sharing to protect workshop floors
Safety Configuration
- Multiple Braking Systems: Electromagnetic, hydraulic and mechanical parking brakes
- Structural Safety: Finite element analysis optimized with high-strength alloy steel components
- Intelligent Monitoring: Real-time battery status, motor temperature, load weight and level monitoring
- Emergency Measures: Emergency descent valves and manual pumps for safe unloading during power failure
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L×W×H (mm) | 2000×1500×450 | 3500×2000×500 | 3600×2000×500 | 4000×2000×550 | 4000×2200×550 | 4500×2200×600 | 4500×2200×600 | 5000×2500×650 | 5500×2500×650 | 5600×2500×700 | 6000×2600×800 | 6500×2800×900 | 10000×3000×1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
Customized Functions
- Vehicle Customization: Hydraulic lifting systems, mold-specific positioning fixtures, rotary platforms, or heavy-duty ball discs
- Navigation Customization: Laser or visual navigation upgrades for fully automatic path planning
- Environmental Customization: Special versions for explosion-proof, clean workshop, or high humidity environments
Product Applications
Designed specifically for scenarios requiring transportation of overweight, oversized, and high-value materials:
- Automobile Stamping: Replacement, storage and maintenance transfer of large stamping dies
- Heavy-duty Press: Installation and maintenance of press components like movable crossbeams and bases
- Wind Power & Heavy Machinery: Assembly and movement of large gearboxes, nacelles, and structural components
- Aerospace: Precision transfer of composite material molds and large aircraft components
Customization Inquiry
Please provide the following details for customized transfer cart solutions:
- Load type and weight of heaviest lift
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift)
- Travel area specifications (rail/cement floor, indoor/outdoor)
- Distance to travel
- Other relevant operating conditions
Our Advantages
- Low Noise Operation: Minimal noise level for improved working environment
- Maximum Safety: Comprehensive safety features protecting operators and materials
- Easy Operation: User-friendly design with comprehensive support and training
- Easy Implementation: Operates on standard floors without complex permanent installation
- Versatile Capacity: Suitable for all weight ranges with modular fabrication up to 300 tons
Packaging & Shipping
- Dimensions under 6m length × 2.2m width: 20ft container
- Length 5.9m-12m: 40ft container
- Multiple units: Full container shipping
- Single unit: LCL container shipping
- Oversized dimensions: Flat rack or bulk cargo shipping
Company Strength & Customer Visits
We specialize in ultra-heavy-duty intelligent mobile solutions with full-chain capabilities from hundred-ton structural design to complex system integration. Successful cases cover multiple heavy manufacturing fields. We invite you to visit our heavy equipment testing field and assembly workshop.
