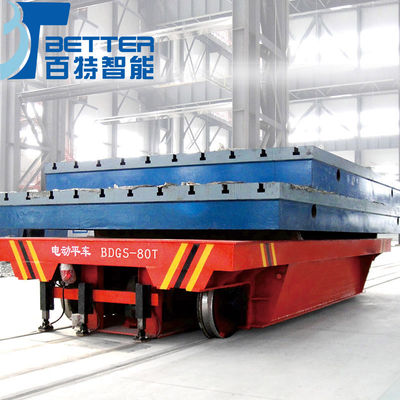

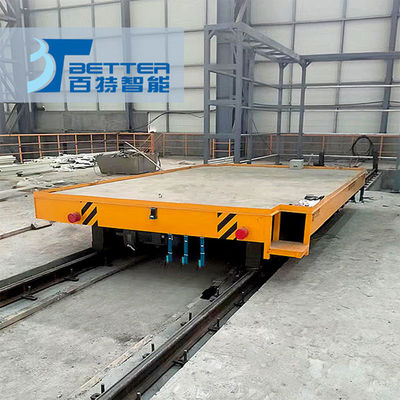

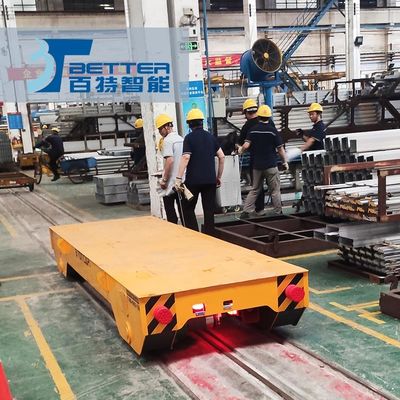

Heavy Duty Rail Transfer Cart Electric Motorized 130 Ton Capacity for Industrial Material Handling and Steel Coil Transport
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | Heavy duty rail transfer cart,Electric motorized rail cart,130 ton capacity rail cart |
||
Product Description
Heavy Duty Rail Transfer Cart - 130 Ton Capacity
Electric motorized rail transfer cart designed for industrial material handling and steel coil transport with a maximum capacity of 130 tons.
Product Overview
A rail-mounted electric transfer vehicle specially engineered for industrial heavy-duty logistics, featuring a core carrying capacity of up to 130 tons. This system provides a stable, efficient, and easily integrated solution for heavy and high-frequency in-plant fixed-point transportation, particularly suited for heavy manufacturing and steel industry applications.
Core Configuration
- Load Capacity: Rated 130 tons with high structural safety factor, capable of handling impact loads
- Drive System: High-power AC variable frequency motor drive for smooth starting, braking, and precise speed control
- Power Supply: Standard safety sliding contact line continuous power supply, with options for low-voltage track power supply or cable drum power supply
- Track System: Compatible with QU100 and above heavy-duty rails
- Countertop Configuration: Standard heavy-duty flat plate with optional V-shaped saddle or adjustable coil bracket for steel coil transportation
Core Functions
- Stable Heavy Load Operation: Low center of gravity and large wheel diameter design ensures smooth driving under 130-ton loads
- Precise Point Docking: Frequency conversion control and encoder positioning achieve repeatable docking accuracy of ±5mm
- Multiple Control Modes: Supports cab operation, ground wired control box, or wireless remote control
- High Reliability: Industrial-grade components with simple design for easy maintenance and high-intensity continuous operation
Safety Configuration
- Operation Safety: Heavy-duty anti-collision beams at both ends with sound and light alarms and emergency stop switches
- Electrical Safety: Multiple electrical protections including overcurrent, overload, and phase loss
- Emergency Braking: Equipped with electromagnetic braking and mechanical parking brake (handbrake)
Customization Options
- Vehicle Customization: Special saddles for steel coil sizes, or hydraulic lifting and rotating platforms
- Automation Integration: Multiple preset sites with factory MES/WMS system linkage for automatic scheduling and operation
Product Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific workplace activities. Transfer carts are more accommodating for moving long loads through restrictive passageways or doorways. For heavier loads, transfer carts provide an affordable solution with excellent heavy load handling capabilities. Their compact design works well in areas with limited floor space, and the deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partial products
- Sub-Assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly processes (integrated screw-jack table)
- Sand casting (flat decking)
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of the heaviest load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Distance to travel
- Other relevant information or using conditions
Our Advantages
- Low Noise: Operates with minimal noise levels
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly design for immediate productivity
- Easy Implementation: Operates on standard floors without complex permanent installation
- Suitable for All Weights: Modular fabrication handles both small and extremely large loads up to 300 tons per trolley
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container. For length between 5.9m and 12m: Transported by 40ft container. Multiple sets can be shipped in full containers, while single sets use LCL containers. For equipment beyond standard dimensions, flat rack or bulk cargo shipping options are available.
