Heavy Duty Battery Powered Transfer Cart with Remote Control for Safe and Die Transport on Rails in Industrial Environments
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Application | Steel Industry, Factory, Warehouse, Port |
| Transport Package | The Whole Cart Will Be Packed By Tarp. | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | Xinxiang |
| HS Code | 84289090 | Production Capacity | 50 Sets/Month |
| Highlight | heavy duty battery transfer cart,remote control transfer cart,industrial rail transport cart |
||
Product Description

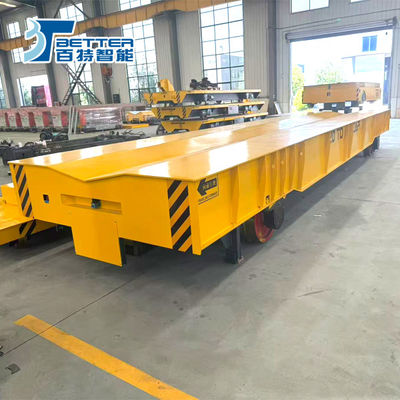

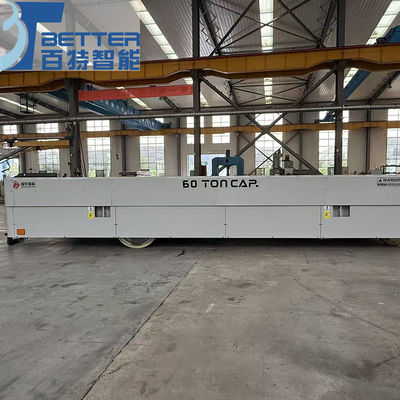

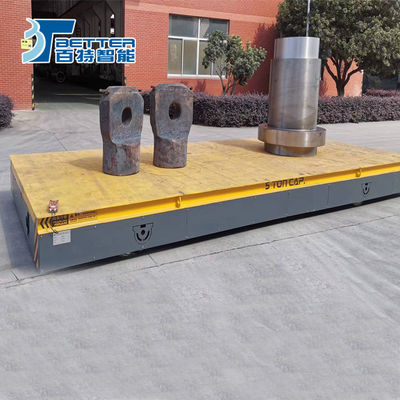

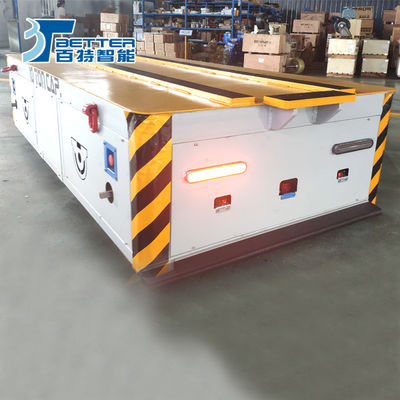

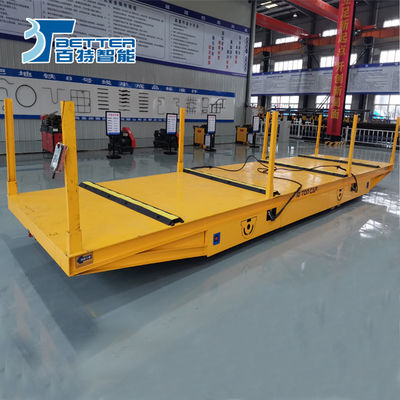

Heavy Duty Battery Powered Transfer Cart with Remote Control
This industrial-grade electric handling equipment is specifically engineered for the safe and efficient transportation of heavy molds, tooling, and large components on tracks in manufacturing environments. Featuring large-capacity battery power and wireless remote control, it eliminates cable constraints and operator safety risks while providing flexible, clean rail transportation for mold replacement and maintenance in stamping, injection molding, and forging industries.
Core Configuration
Load Capacity & Power System
- Load capacity: Standard series from 10 tons to 300 tons to meet diverse mold transportation requirements
- Power supply: Large-capacity industrial lead-acid battery pack supporting single-shift or continuous operation with optional fast charging or battery swapping
- Drive system: AC variable frequency motor for smooth operation and precise start/stop control
- Control method: Industrial-grade wireless remote control for flexible operation from safe distances
- Track system: Compatible with QU70-QU100 type rails for stable guidance
Core Functions
- Wireless remote control: Operator maintains safe distance from load with optimal control perspective
- Cable-free operation: Battery-powered design enables navigation through complex track layouts without entanglement risks
- Precise positioning: Variable frequency control allows low-speed crawling and millimeter-level docking for precise mold alignment
- Clean and quiet: Pure electric drive eliminates exhaust emissions and reduces operating noise
Safety Configuration
- Control safety: Dual-circuit emergency stop systems (remote control and vehicle body) with automatic braking on signal loss
- Operation safety: Physical anti-collision blocks and audible/visual alarms at both ends
- Battery safety: Comprehensive battery management system with overcharge, overdischarge, over-temperature, and short-circuit protection
Customization Options
- Platform customization: Flat plates, T-slot platforms, or integrated hydraulic lifting fine-tuning devices
- Auxiliary functions: Mold positioning pins, side shift devices, weighing systems, or automation interfaces
- Environmental adaptability: Special versions for explosion-proof, dust-proof, or low-temperature applications
Product Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 |
| Table Size H (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 |
Industrial Applications
Specifically designed for fixed-point track transportation of heavy materials in industrial environments:
- Automobile stamping workshop: Rapid die changing and transportation between storage areas and multiple presses
- Plastic injection molding industry: Replacement, maintenance and transportation of heavy-duty injection molds
- Metal casting and forging: Workshop circulation of large molds and mold bases
Customization Inquiry
How can Transfer Carts be customized?
Please provide the following information for customized solutions:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Distance to travel
- Other relevant information or operating conditions
Key Advantages
- Low noise operation: Minimal noise levels for improved working environment
- Maximum safety: Comprehensive safety features protecting operators and materials
- Easy operation: Intuitive controls for immediate productivity
- Easy implementation: Operates on standard floors without complex installation
- Versatile capacity: Suitable for both small and extremely large loads up to 300 tons
Packaging & Shipping
- For equipment under 6m length and 2.2m width: 20ft container
- For equipment between 5.9m-12m length: 40ft container
- Multiple units (2-3 sets): Full container shipment
- Single unit: LCL container shipment
- Oversized equipment: Flat rack (20 or 40ft) or bulk cargo options
Certifications
Service & Support
Pre-sale Services
Free working condition analysis and customized solutions based on your mold size, weight, and track layout requirements.
After-sales Services
On-site installation and commissioning, comprehensive operation and maintenance training. Battery systems include independent warranty with complete technical support.
