Coil Transfer Cart 45 Ton Electric Transportation Cart Equipped with Cable Reel for Movement of Steel Coils and Machinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 45 ton electric coil transfer cart,steel coil transport cart with cable reel,electric machinery transfer cart |
||
Product Description
45 Ton Electric Coil Transfer Cart with Cable Reel System
This medium to heavy-duty electric track transfer vehicle is specifically engineered for steel production, mechanical manufacturing, and heavy logistics industries. With a 45-ton rated load capacity and cable reel power supply system, it provides a flexible, reliable, and economical solution for fixed-point, medium-to-long-distance transportation of steel coils, heavy machinery, and large components within workshops and warehouses.
Core Configuration
- Load Capacity: Rated 45 tons with robust structure for stable load-bearing performance
- Power Supply: Standard large-capacity cable reels with customizable lengths (typically 50-150 meters)
- Drive System: AC variable frequency motor for smooth operation and precise start/stop control
- Control Options: Driving operation, in-vehicle line control box, or wireless remote control

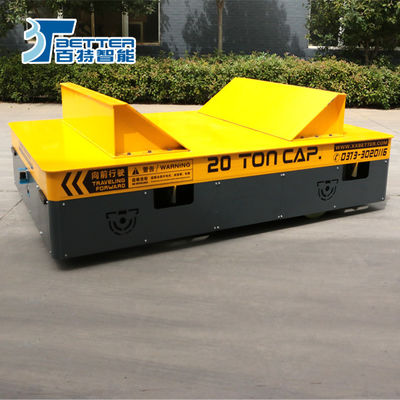

- Carrier Platform: Standard heavy-duty flat plate with optional V-shaped or arc-shaped saddles and anti-roll frames
Core Functions
- Flexible Power Supply: Cable drum automatically retracts and extends for free movement within track length
- Reliable Heavy-Load Transport: Specially optimized frame and traveling mechanism for 45-ton loads
- Precise Alignment: Variable frequency speed regulation enables slow approach and accurate stopping
- Environmental Adaptability: Cable power supply minimizes dust and humidity impact with simplified maintenance
Safety Configuration
- Power Supply Safety: Cable drum with tension adjustment and overload protection
- Operation Safety: Sound and light alarms, front/rear anti-collision buffers, emergency stop switches
- Electrical Safety: Overcurrent, overvoltage, and phase loss protection
- Parking Safety: Dual protection with electromagnetic braking and manual mechanical braking
Customization Options
- Custom Saddles: Tailored to specific steel coil outer and inner diameters
- Function Expansion: Hydraulic lifting, platform rotation, or automatic weighing systems
- Control Upgrade: Multiple workstation presets for semi-automatic calling and operation
Product Specifications
| Model | BHX-2t | BHX-5t | BHX-10t | BHX-16t | BHX-20t | BHX-25t | BHX-30t | BHX-40t | BHX-50t | BHX-63t | BHX-80t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application Areas
- Continuous Material Transfer: Transporting raw materials and semi-finished products between warehouses and production workshops

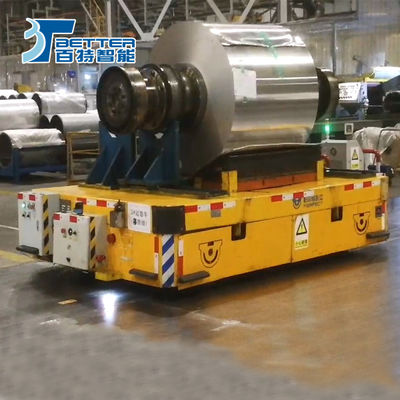

- Steel & Metallurgy Industry: Moving steel billets, rolls, molds, and castings within steel mills
- Fixed-Point Production Line Delivery: Precise component delivery from storage to workstations
- Port Warehousing & Logistics: On-site transportation of containers and large cargo in storage yards
- Large Equipment Manufacturing: Component flow between assembly stations for irregular-shaped workpieces
Customization Inquiry
To customize your transfer cart, please provide the following information:
- Type of load or product to be transferred
- Weight of heaviest lift or load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Travel distance requirements
- Other relevant operating conditions
Our Advantages
- Low Noise Operation: Minimal noise levels during operation
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly design for immediate productivity
- Easy Implementation: Operates on standard floors without complex installation
- Versatile Weight Handling: Suitable for both small and extremely large loads up to 300 tons
Packaging & Shipping
- Dimensions under 6m length × 2.2m width: 20ft container
- Length 5.9m-12m: 40ft container
- Multiple units (2-3 sets): Full container shipping
- Single unit: LCL (Less than Container Load) shipping
- Oversized dimensions: Flat rack or bulk cargo shipping
