Easy Operated Battery Powered Automatic Transfer Trolley For Wholesaler
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | battery powered transfer trolley,automatic omnidirectional transfer cart,wholesale electric transfer cart |
||
Product Description

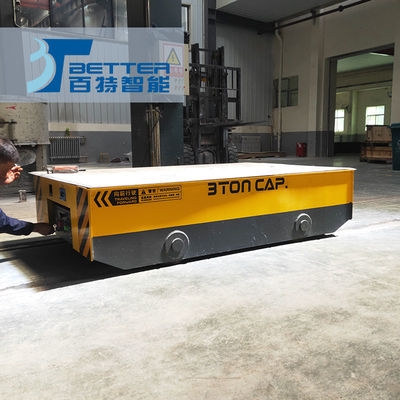

Easy Operated Battery Powered Automatic Transfer Trolley
This compact, user-friendly smart material handling device is specifically designed for wholesale, warehousing, e-commerce logistics, and similar scenarios. Combining fully autonomous navigation, battery power, and lightweight construction, it addresses high-frequency, short-distance transport tasks within warehouses--such as material picking, shelf replenishment, and order handling. Requiring no specialized operators and featuring simple controls, it significantly boosts sorting efficiency and space utilization while reducing manual labor intensity.
Core Specifications
Load Capacity: Lightweight design supporting 100-500 tons, suitable for standard pallet or bin transport.
Navigation: Autonomous navigation with clear, stable paths and rapid deployment.
Drive & Power: Powered by lead-acid battery packs for extended runtime.
Operation: One-button start with fully automated operation. Tasks easily assigned via handheld PDA, touchscreen, or dispatch system.
Vehicle Design: Compact chassis with low-profile design. Standard configuration includes roller conveyors or lifting forks for automated loading/unloading.
Navigation: Autonomous navigation with clear, stable paths and rapid deployment.
Drive & Power: Powered by lead-acid battery packs for extended runtime.
Operation: One-button start with fully automated operation. Tasks easily assigned via handheld PDA, touchscreen, or dispatch system.
Vehicle Design: Compact chassis with low-profile design. Standard configuration includes roller conveyors or lifting forks for automated loading/unloading.
Core Features
- Minimal Operation: Employees can master the system after just 15 minutes of training. Transport tasks are initiated with simple button presses or QR code scans.
- Automatic Transport: Automatically moves goods from Point A to Point B based on pre-set maps and tasks, supporting multi-stop delivery.
- Automatic Charging: Returns to charging stations when battery is low, enabling 24/7 uninterrupted operation.
- Safety Obstacle Avoidance: Equipped with front-facing LiDAR + ultrasonic sensors + bumpers; automatically decelerates or stops upon detecting people or obstacles.
Safety Features
- Omnidirectional Detection: 360° LiDAR enables proactive obstacle avoidance.
- Emergency Braking: Equipped with an emergency stop button and physical bumpers.
- Audible & Visual Alerts: Operational lights and sounds provide real-time notifications.
Customizable Functions
- Vehicle Customization: Choose from fixed racks, adjustable platforms, conveyor belts, and other transport options.
- System Integration: Optional warehouse management system interface enables automated task assignment.
Product Parameters
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
|---|---|---|---|---|---|---|---|
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam structure | ||||||
| Thickness of the steel plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 3600*2000 | 4000*2200 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||||
| Control method for turning | Control button | ||||||
| Turning structure | Mechanical | ||||||
| Motor power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 350-2/220-2 | 350-2/240-2 | 400-2/240-2 | 400-2/320-2 | 540-2/360 | 580-2/360-2 | 580-2/360-2 |
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-20 | ||||||
| Brake principle | Electric magnetic brake | ||||||
| Ground balance | mechanical automatic adjustment | ||||||
| Operation method | With wire or no wire | ||||||
| Battery model | D-250 24pieces | D-330 24pieces | D-400 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||||
| Charger's installation | Installed on cart | Split-type | ||||||
| Cart color | Yellow and warning sign | ||||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
Frequently Asked Questions
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
Our Advantages
- Low noise: It causes low noise level.
- Maximum safety: Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
- Easy for operation: These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
- Easy to implement into manufacturing process: Operates on standard floors; Do not require complex or permanent installation.
- Suitable for All Kinds of Weight: The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Packaging & Shipping
For length less than 6m, width less than 2.2m: Transported by 20ft container.
For length between 5.9m and 12m: Transported by 40ft container.
For quantity 2 sets or 3 sets: Transported by full container.
For quantity 1 set: Transported by LCL Container.
For length less than 12m, width beyond 2.2m: Transported by flat rack (20 or 40 ft).
For equipment beyond above dimensions: Quantity needs to consider bulk cargo.
For length between 5.9m and 12m: Transported by 40ft container.
For quantity 2 sets or 3 sets: Transported by full container.
For quantity 1 set: Transported by LCL Container.
For length less than 12m, width beyond 2.2m: Transported by flat rack (20 or 40 ft).
For equipment beyond above dimensions: Quantity needs to consider bulk cargo.
