40ton Material Handling Equipment Rail Transfer Trolley for Handling Heavy Material
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 40ton rail transfer trolley for heavy material,material handling equipment rail cart,heavy duty rail transfer trolley |
||
Product Description

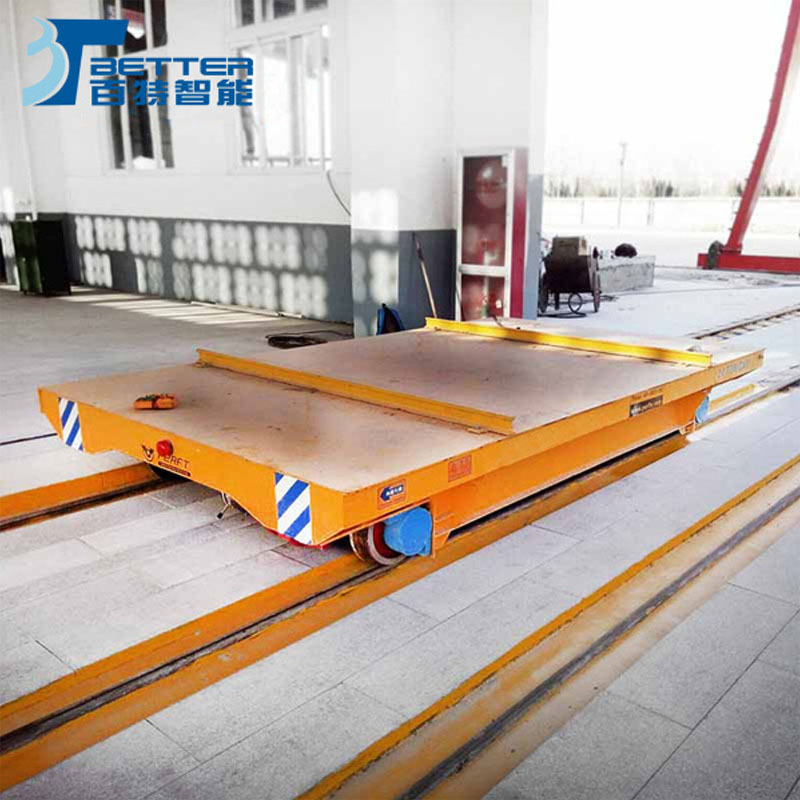

40-Ton Rail Transfer Trolley for Heavy Material Handling
This heavy-duty 40-ton rail transfer trolley is specifically engineered for manufacturing facilities, warehouses, and logistics centers. Utilizing track guidance and motor-driven operation, it efficiently, safely, and reliably transports heavy materials, large workpieces, and standardized pallets along fixed routes. With its robust construction, simple operation, and low maintenance requirements, this equipment is ideal for optimizing in-plant logistics and connecting production processes.
Core Configuration
- Load Capacity: Rated 40 tons with high-strength box beam structure optimized through finite element analysis
- Rail System: Compatible with QU70-QU100 heavy-duty rails with customizable track gauge
- Drive System: High-power AC variable-frequency motor for smooth operation and precise speed control
- Power Supply: Standard safety sliding wire power supply with optional cable drum or low-voltage track power
- Control Methods: Vehicle-mounted control box, wireless remote control, or driving operation
- Platform Design: High-strength steel structure with anti-slip plates, T-shaped grooves, or custom tooling
Core Functions
- Stable Heavy-Load Transportation: Low center of gravity design ensures smooth operation with 40-ton loads
- Precise Positioning: ±5mm repeat docking accuracy for automated production line integration
- Continuous Operation: 24-hour uninterrupted capability for high-frequency transportation
- Easy Operation: Intuitive wireless or wired controls with minimal training required
Safety Features
- Sound and light warning systems for operation alerts
- Electrical protection with overcurrent, overload, phase loss, and leakage safeguards
- Emergency stop buttons on both remote control and vehicle body
- Automatic braking during signal loss
- Dual parking protection with electromagnetic and manual mechanical brakes
Customization Options
- Platform Types: Flat plates, concave platforms, V-shaped saddle seats, T-slot platforms, or powered roller decks
- Function Expansion: Hydraulic lifting, platform rotation, lateral movement, automatic weighing, RFID material identification
- Environmental Adaptability: Explosion-proof, high-temperature resistant, and corrosion-resistant versions available
Product Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Applications
- Manufacturing Workshops: Transferring large components, molds, engines, and gearboxes between production lines

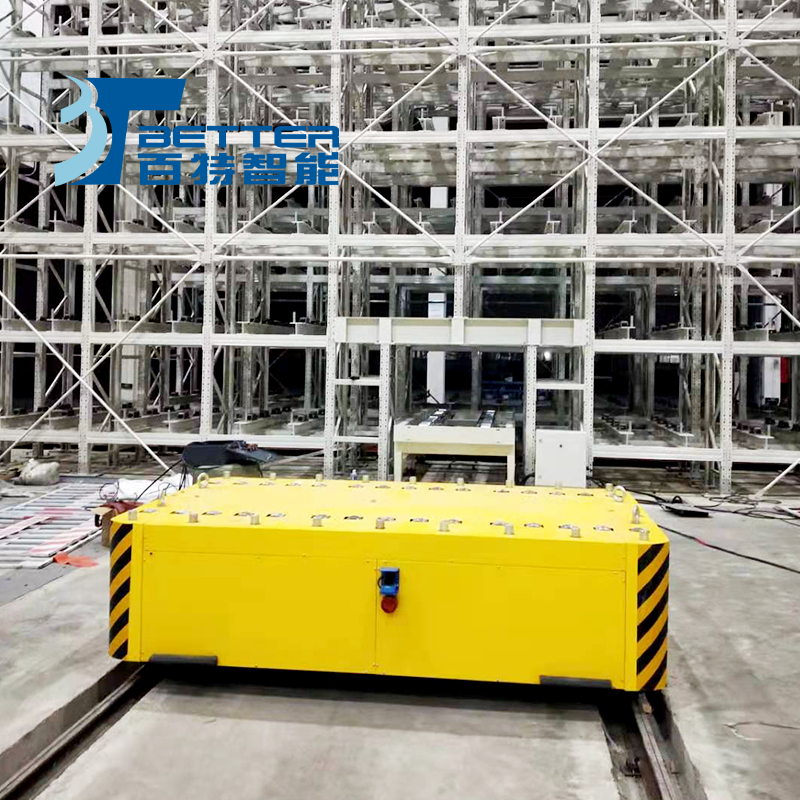

- Warehousing & Logistics: Palletized goods transportation between shelving areas and loading docks
- Metal Processing: Transfer of steel coils, plates, and ingots between storage and production areas
- Heavy Machinery Manufacturing: Circulation of large structural components and equipment modules
- Building Materials: Transportation of prefabricated wall panels, floor slabs, beams, and columns
Customization Inquiry
To customize your transfer cart, please provide the following information:
- Type of materials or products to be transferred
- Weight of the heaviest load
- Dimensions (Length × Width × Height)
- Trip frequency and shifts per day
- Travel area specifications (rail/floor type, indoor/outdoor, path configuration)
- Travel distance requirements
- Any other relevant operating conditions
Key Advantages
- Low Noise Operation: Minimal noise levels for improved working environment
- Maximum Safety: Comprehensive safety features protecting operators and materials
- Easy Operation: Intuitive controls with minimal training requirements
- Easy Implementation: Operates on standard floors without complex installation
- Versatile Capacity: Suitable for both small and extremely large loads up to 300 tons
