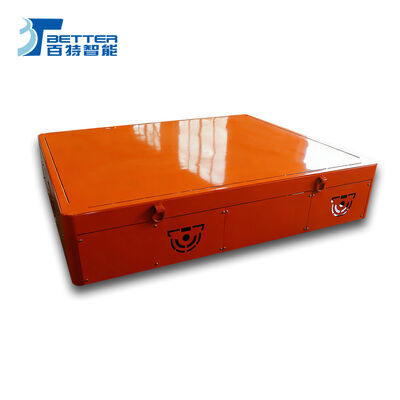

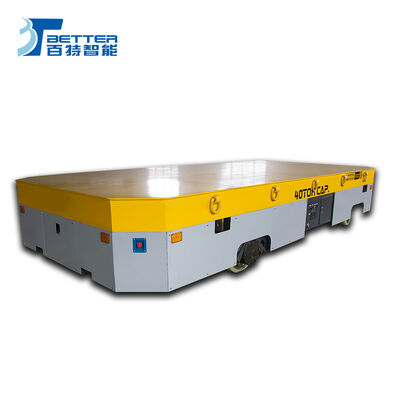

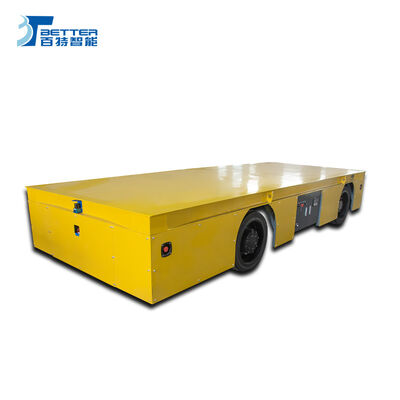

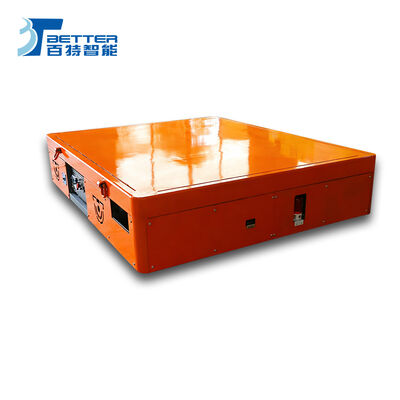

300 Ton Driven Motorized Transfer Carriage Cargo Transport Equipment Battery Powered Transfer Cart
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 300 ton motorized transfer cart,battery powered cargo transport equipment,driven transfer carriage with warranty |
||
Product Description
300 Ton Battery Powered Transfer Cart
This heavy-duty battery-powered electric transfer vehicle is engineered for ultra-heavy industrial applications requiring 300-ton capacity. It combines exceptional load-bearing capability with untracked mobility, powered by a large-capacity lithium battery system for complete freedom from cable and track constraints.
Core Configuration
- Load Capacity: Rated 300 tons with multi-axle modular load-bearing design
- Walking System: Heavy-duty solid rubber tires or polyurethane rubber-covered wheels
- Steering System: Multi-wheel independent steering supporting straight driving, lateral movement, diagonal movement, and 360° spinning
- Control System: Distributed intelligent control with multi-axis collaborative drive
- Control Mode: Industrial-grade wireless remote control or automatic navigation
- Safety System: 360° laser radar collision prevention, load monitoring, and multiple braking redundancy
Core Functions
- 300 Ton Super Bearing: Multi-bridge modular design ensures transport safety for overweight materials
- Trackless Free Movement: No track installation required, free path planning throughout factory areas
- Omnidirectional Flexibility: 360° spinning, lateral translation, and oblique movements
- Long Range Operation: Large-capacity lithium battery supports 8-12 hours continuous operation
Safety Configuration
- 360° All-Directional Anti-Collision: Multi-line laser radar + ultrasonic sensor + mechanical anti-collision strip
- Triple Braking Guarantee: Energy recovery, electric control, hydraulic braking and mechanical parking
- Emergency Stop System: Multiple emergency stop buttons and remote control stop function
- Battery Safety: Intelligent BMS with comprehensive protection systems
- Sound & Light Warning: Clear audio-visual prompts during operation
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L(mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W(mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H(mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
Applications
Designed for handling the largest and most crucial component transfers in manufacturing:
- Shipbuilding: Transfer of hull sections and large modules
- Aerospace: Precise transportation of rocket body segments, aircraft fuselage segments, wings, and engines
- Heavy Equipment Manufacturing: In-plant transportation of mining excavators, shield machines, generator sets, and nuclear power pressure vessels
- Steel Metallurgy: Transfer of overweight steel ingots, hot-rolled steel coils, and large castings
- Bridge & Construction: Transportation of super large prefabricated bridge sections and concrete components
- Port & Logistics: Handling of overweight containers, wind turbine blades, and tower frames
Customization Inquiry
To customize your transfer cart, please provide the following information:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length, Width, Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Distance to travel
- Other relevant information or using conditions
Our Advantages
- Low Noise Operation: Causes minimal noise level during operation
- Maximum Safety: Comprehensive safety guarantees for operators and materials
- Easy Operation: User-friendly driving interface for immediate productivity
- Easy Implementation: Operates on standard floors without complex installation
- Suitable for All Weights: Modular fabrication supports payloads up to 300 tons
