300-ton Load Capacity Electric Coil Transfer Cart with Anti-Explosion and Heat-Resistant Features for Heavy Material Handling
Product Details
| Model NO. | BXC | Product Name | Battery-Power Transfer Cart |
|---|---|---|---|
| Usage | Heavy Duty Material Transportation | Load Capacity | 1-300ton |
| Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized | Material | Steel |
| Transport Package | The Whole Cart Will Be Packed By Tarp. | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | Xinxiang |
| HS Code | 84289090 | Production Capacity | 50 Sets/Month |
| Table Size | 2000*2000*500 | Power Output | 5-15 KW |
| Battery Voltage | 48-72V | Running Speed | 0-25 M/min |
| Wheel Diameter | 270-600mm |
Product Description

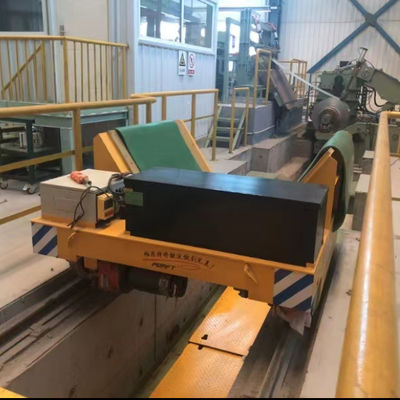

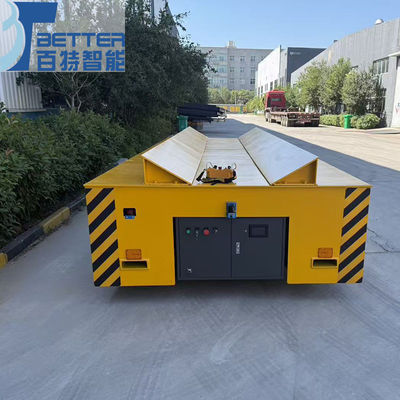

Electric Coil Transfer Cart
This battery-powered steel coil transfer vehicle is specifically designed for steel processing, storage, and metal service centers. It integrates a large-torque traction motor, high-capacity lithium battery pack, and complete vehicle control system into one unit, optimized for safely, efficiently, and non-destructively transporting heavy steel, aluminum, and copper coils.
Core Configuration
- Load capacity: 10 tons, 20 tons, 30 tons, 50 tons, 80 tons (customizable up to 150 tons)
- Power integration: Integrated battery-driven traction motor (DC/AC), 5-15 kW power output
- Power supply: Large-capacity lithium iron phosphate/traction battery, 6-10 hour range with fast charging
- Control system: Integrated intelligent electronic control system
- Walking mode: Non-rail type (polyurethane wheels) / Rail type (cast steel wheels)
- Control method: Industrial wireless remote control + Vehicle-mounted line control
Safety & Customization Features
Safety Configuration
- Emergency stop button (vehicle body and remote control)
- Anti-rolling mechanical locking + Overload protection + Center of gravity offset monitoring
- Sound and light alarm (operation/reverse/fault) + Anti-collision buffer strip
- Optional laser obstacle avoidance radar
Customization Functions

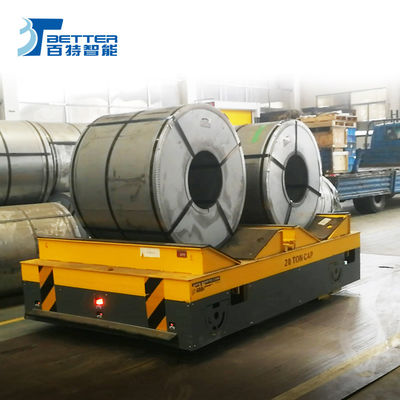

- Saddle seat types: V-shaped (steel coils), curved (aluminum/copper coils), adjustable width
- Function expansion: Hydraulic lifting, platform rotation
- Walking mode: Omnidirectional wheels for lateral movement and in-place rotation
- Environmental adaptation: Explosion-proof, high-temperature resistant, cleanroom types
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Applications

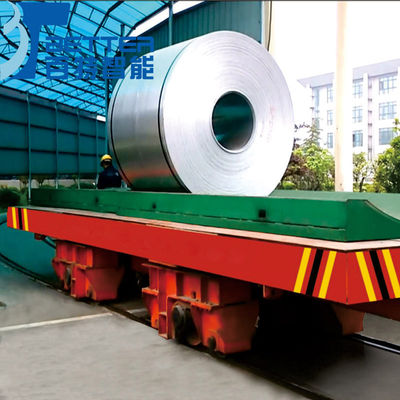

- Hot/Cold Rolling Plant: Transporting steel coils from coiler to cooling zone, finishing line, and storage
- Metal processing center: Steel coil distribution among unwinding, shearing, and packaging lines
- Steel warehouse/logistics park: Inbound, stacking, and outbound transportation of steel coils
- Automobile/industrial equipment stamping: Supply of raw steel coils to uncoiling and blanking lines
- Non-ferrous metal processing: Internal circulation of aluminum and copper coils within factories
Customization Inquiry
How can Transfer Carts be customized?
Please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Our Advantages
- Low noise: Operates with minimal noise levels
- Maximum safety: Comprehensive safety features for operators and materials
- Easy operation: User-friendly design with immediate operational capability
- Easy implementation: Operates on standard floors without complex installation
- Suitable for all weights: Modular fabrication handles small to extremely large loads (up to 300 tons)
Packaging & Shipping
- Length < 6m, width < 2.2m: Transported by 20ft container
- Length 5.9m-12m: Transported by 40ft container
- 2-3 sets: Full container transport
- 1 set: LCL Container transport
- Width beyond 2.2m: Flat rack transport (20 or 40 ft)
- Oversized equipment: Bulk cargo transport
