V-Shaped Frame AGV Transfer Cart with 300-ton Load Capacity and Anti-Explosion for Heavy Duty Material Transport
Product Details
| Model NO. | BXC | Product Name | Battery-Power Transfer Cart |
|---|---|---|---|
| Usage | Heavy Duty Material Transportation | Load Capacity | 1-300ton |
| Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized | Material | Steel |
| Transport Package | The Whole Cart Will Be Packed By Tarp. | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | Xinxiang |
| HS Code | 84289090 | Production Capacity | 50 Sets/Month |
| Wheel Diameter | 270-600mm | Running Speed | 0-25m/min |
| Battery Voltage | 48-72V |
Product Description

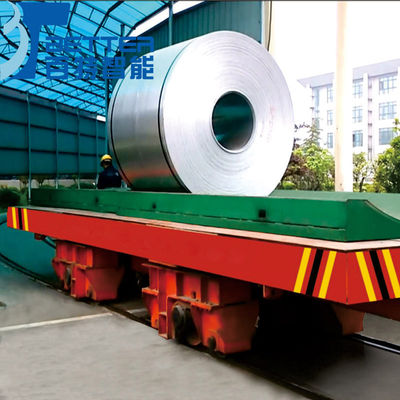

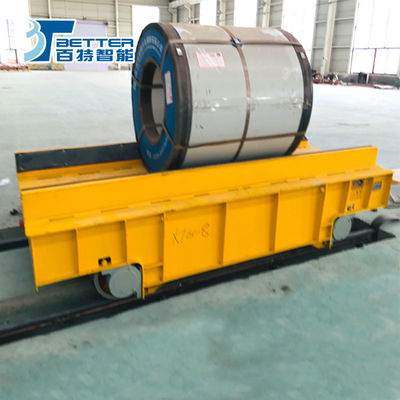

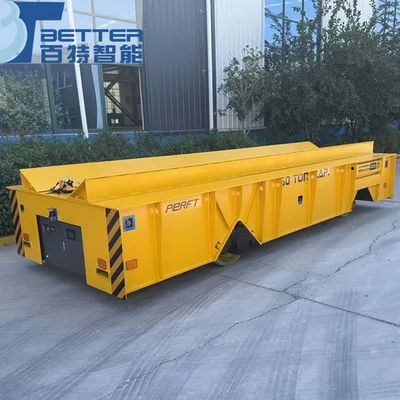

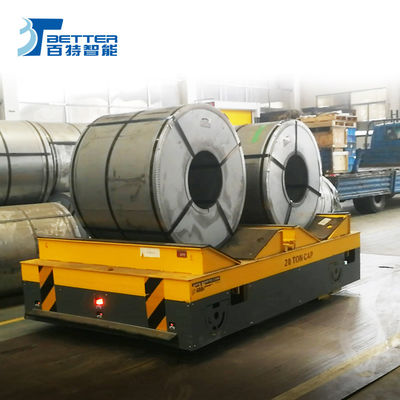

V Shaped Frame AGV Transfer Cart For Transport Materials Coil
Product Overview
The V-shaped Frame AGV Transfer Cart is a battery-powered electric transfer trolley designed specifically for transporting material coils. The battery is installed inside the flat cart, providing power to DC traction motors through an electrical control system that manages start, stop, advance, retreat, and speed control functions.
This battery-powered rail transfer cart serves as an efficient electric transport solution within factory environments. It features a simple structure, convenient operation, large carrying capacity, easy maintenance, and long service life. Due to its convenience, economy, practicality, and easy cleaning advantages, it has become the preferred transport cart for moving heavy objects along fixed routes.
Product Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Product Image
Customization Information
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
- Low noise - Operates with minimal noise levels
- Maximum safety - Offers guarantee of maximum safety for operators and materials handled
- Easy for operation - These vehicles are easy to drive and operate immediately upon delivery
- Easy to implement into manufacturing process - Operates on standard floors without complex or permanent installation
- Suitable for All Kinds of Weight - Excellent for handling both small and extremely large loads with payloads up to 300 tons per trolley
Standard Container Shipping: For equipment with length less than 6m and width less than 2.2m, transported by 20ft container. For length between 5.9m and 12m, transported by 40ft container.
Multiple Units: 2-3 sets can be transported by full container. Single sets can be transported by LCL Container.
Oversized Equipment: For width beyond 2.2m with length less than 12m, transported by flat rack (20 or 40 ft). Equipment beyond these dimensions requires bulk cargo shipping.
Our products meet industry standards and certification requirements. Please contact us for specific certification details.
