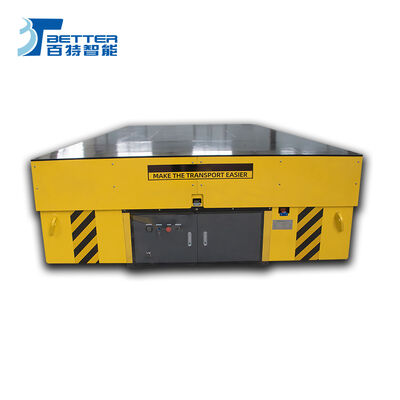

Electric Transfer Cart with 360 Degree Turn Around 1-150ton Load Capacity and Polyurethane Solid Wheels
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-1500ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Control Mode | Pendant/Remote/PLC Control |
| Power Mode | Battery | Feature | Can Run On The Cement And 360 Degree Turn Around |
| Wheels Type | Polyurethane Solid Wheels | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 200sets/Month | Table Size | 2000*2000*500 |
Product Description
Indoor And Outdoor Electric Flat Battery Operated Transfer Trolley
The Indoor and Outdoor Electric Flat Transfer Cart is a versatile and robust material handling solution designed to operate seamlessly in both enclosed factory spaces and exposed outdoor yards. Its key strength lies in its adaptability, featuring durable, weatherproof construction that withstands variable environmental conditions.
The flat, open platform offers versatile loading for a wide range of goods, from palletized items and machinery to raw materials. Powered by an electric system, it provides clean, quiet, and cost-effective operation. This dual-environment capability ensures continuous logistics flow, effectively bridging the gap between indoor production areas and outdoor storage or shipping zones.
Product Details
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Application
- Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart
- Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter
- Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer
- Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
- Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle
Working closely with you, we incorporate our years of design experience into the final product design to assure complete customer satisfaction.
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partially completed products
- Sub-Assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within plant facilities
- Material shuttle for steel tubing
- Elevating platform for assembly processes
- Sand casting operations
How can Transfer Carts be customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of the heaviest load
- Dimensions (Length, Width, Height)
- Trip time and frequency (# of Trips per shift, Shifts per day)
- Travel area requirements (Rail/cement floor, Indoor/Outdoor, straight line travel)
- Distance to travel
- Other relevant information or using conditions
- Low Noise: Operates with minimal noise levels for improved working environment
- Maximum Safety: Guarantees maximum safety for operators and handled materials
- Easy Operation: User-friendly design with immediate operational capability
- Easy Implementation: Operates on standard floors without complex installation
- Versatile Capacity: Suitable for all kinds of weight, handling both small and extremely large loads up to 300 tons
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container.
For length between 5.9m and 12m: Transported by 40ft container.
Multiple sets (2-3) can be transported by full container. Single sets can be transported by LCL Container.
For width beyond 2.2m: Requires flat rack transportation (20 or 40 ft).
Equipment beyond standard dimensions requires bulk cargo shipping arrangements.
Our products meet industry standards and certification requirements. Please contact us for specific certification details.
