500 Ton Load Capacity Electric Transfer Cart with Anti-Explosion and Heat-Resistant Features
Product Details
| Load Capacity | 1-300ton | Material | Steel |
|---|---|---|---|
| Wheel Diameter | 350-2/220-2 To 580-2/360-2 | Running Speed | 0-20 M/min |
| Motor Power | 3 To 15 KW | Ground Clearance | 50 Mm |
Product Description
500 Ton Electric Plate Handling Electric Battery Powered Cart
Product Overview
This product is specially designed for the efficient and reliable transportation of large steel plates and other heavy materials in industrial environments. With a load-bearing capacity of up to 500 tons, it features a reinforced chassis and dedicated clamping or support system to ensure stability and safety during transportation. The equipment delivers smooth operation, precise positioning, and stable performance even under extreme loads, making it an ideal choice for steel mills, shipyards, and heavy manufacturing enterprises.

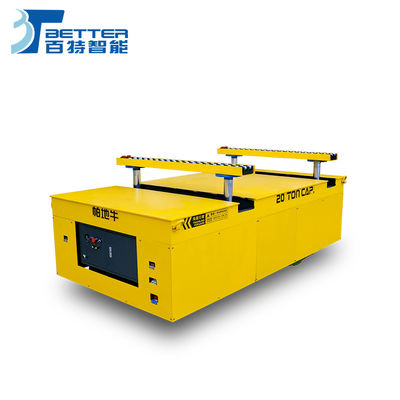

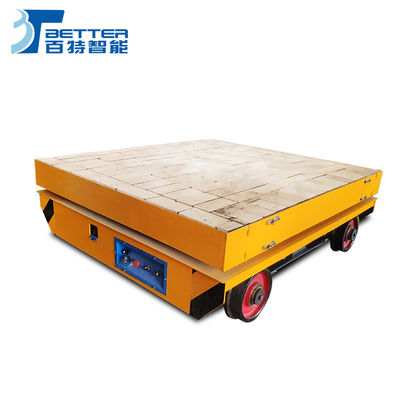

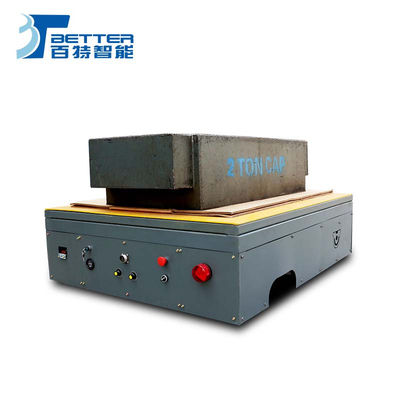

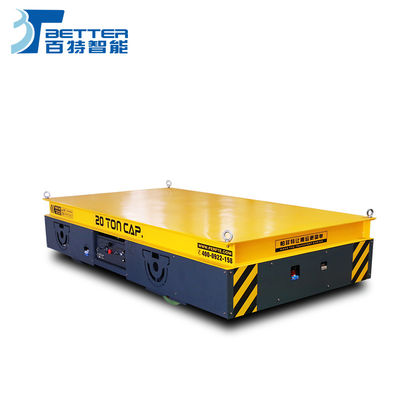

Product Image
Technical Specifications
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
|---|---|---|---|---|---|---|---|
| Rated Load (t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted Rated Load (t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Cart Weight (t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. Wheel Load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Table Size (mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| Height (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Motor Power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
- Structure: Steel plates welded, beam structure
- Ground Requirement: Cement floor or steel plate ground
- Ground Clearance: 50mm
- Turning Type: Turning while driving with no stop
- Control Method: Control button
- Turning Structure: Mechanical
- Wheel Material: ZG55+hydropurture
- Running Speed: 0-20 m/min
- Brake Principle: Electric magnetic brake
- Ground Balance: Mechanical automatic adjustment
- Operation Method: With wire or no wire
- Battery Maintenance: Free of maintenance
- Cart Color: Yellow with warning signs
- Radar Control: 3-0.3m, automatic stop for obstacles
- Warning Equipment: Sound and light
- Additional Functions: Turning light, night light, and power display
To customize your transfer cart, please provide the following information:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel, etc.)
- Distance to travel
- Other relevant information or usage conditions
- Low Noise: Operates with minimal noise levels
- Maximum Safety: Ensures maximum safety for operators and materials handled
- Easy Operation: User-friendly design for immediate productivity
- Easy Implementation: Operates on standard floors without complex installation
- Versatile Capacity: Suitable for handling both small and extremely large loads up to 300 tons per trolley
- For dimensions less than 6m length and 2.2m width: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- Multiple sets (2-3): Full container transport
- Single set: LCL container transport
- Width beyond 2.2m: Requires flat rack transport (20 or 40ft)
- Oversized equipment: Bulk cargo transport
