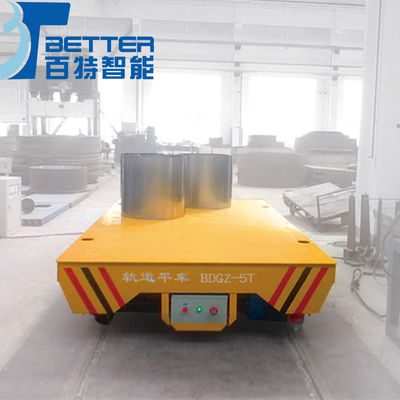

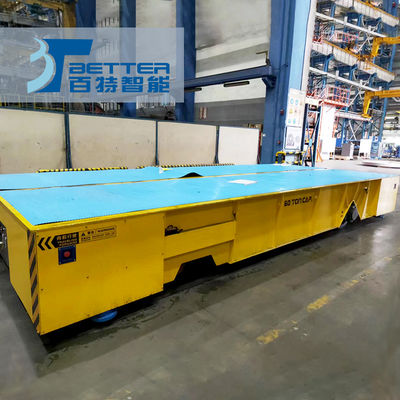

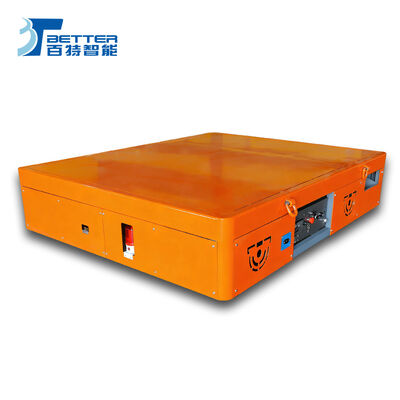

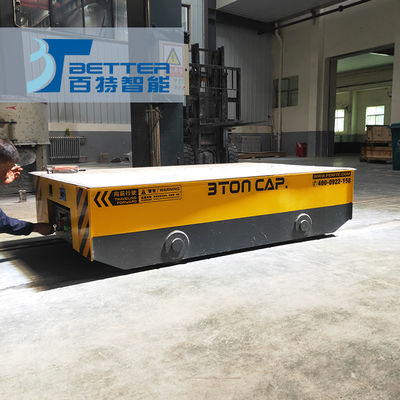

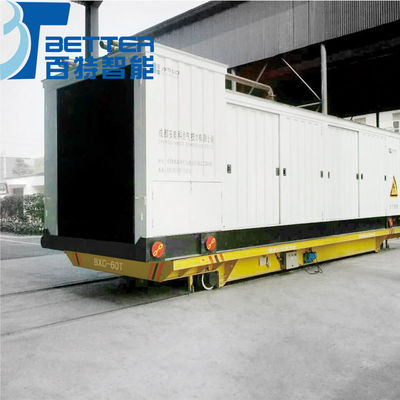

Self Propelled Electric Driven Transfer Cart with 1-1500 Tons Load Capacity for Steel Industry
Product Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| HS Code | 84289090 | Running Speed | 0-25 M/min |
| Battery Voltage | 48-72 V | Wheel Diameter | 270-600 Mm |
| Ground Clearance | 50-75 Mm | ||
| Highlight | 1-1500 Tons Load Capacity Electric Driven Transfer Cart,Steel Industry Application Omnidirectional Transfer Cart,Self Propelled Electric Driven Heavy Load Transport Cart |
||
Product Description
Steel Industry Plant Self Propelled Electric Driven Transfer Cart
Product Overview
Our line of Electric Driven Cars are designed to accommodate the needs of a wide range of industries including steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units operate on floor-mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
This type of Electric Driven Car is primarily powered by cable, with alternative power options including battery and low voltage rails. The optimal power source depends on the required running distance.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hrs) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Key Advantages
- Low Noise: Operates with minimal noise levels for improved working environment
- Maximum Safety: Designed with comprehensive safety features for operators and materials
- Easy Operation: User-friendly controls for immediate productivity
- Flexible: Eliminates fixed move paths and first-in/first-out constraints
- Customizable: Available with custom dimensions, control modes, rated loads, battery life, superstructures, and wheels
Applications
The cable reel powered transfer cart is suitable for numerous industrial applications including:
- Assembly lines (ring production line, loop production line)
- Metallurgy industry (steel ladle)
- Warehouse transport and logistics
- Ship industry (maintenance, assembly, container transport)
- Workpiece transport in workshops and lathe transport
- Steel factories (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure)
- Construction (bridge, building, concrete, concrete column)
- Petroleum industry (oil pump, sucker rod and parts)
- Energy sector (polycrystalline silicon, generator, windmill)
- Chemical industry (electrolytic cell, retort etc)
- Railway (rail maintenance, rail welding, train tractor)
About Our Company
Welcome to Henan BETTER Handling Equipment Co., Ltd. Our company specializes in the design and manufacture of transport systems to solve every material handling requirement. Our product portfolio includes Industrial Trailers, Coils & Die Transfer Cars, Electric Railway Ladle Cart, Scissor Lift Tables, Turntables, Trackless Transfer Cart and many other specialty items.
Packing and Shipping
- For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container
- For length between 5.9m and 12m: Transported by 40ft container
- Multiple units (2-3 sets): Transported by full container
- Single unit: Transported by LCL (Less than Container Load)
- For width beyond 2.2m with length less than 12m: Requires flat rack (20 or 40 ft)
- Oversized equipment: Bulk cargo transportation
How to Choose the Right Electric Driven Car?
Please provide the following information for our recommendation:
- Required load capacity?
- Preferred table size? (Length; Width; Height)
- What cargo will you be transferring?
- What is the travel area? (Indoor/Outdoor, straight line travel, etc)
- Required running distance?
- Preferred power supply type(s)?
- Any special functions required?
