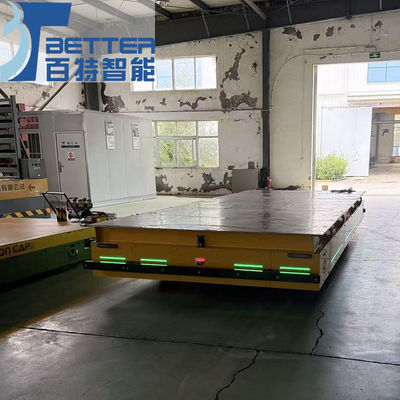

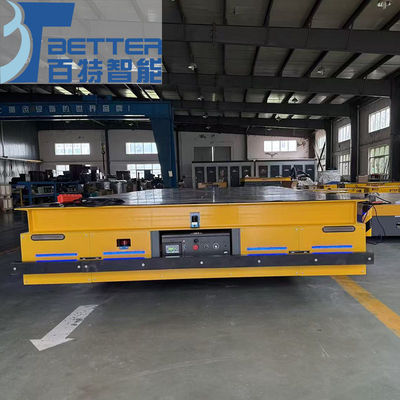

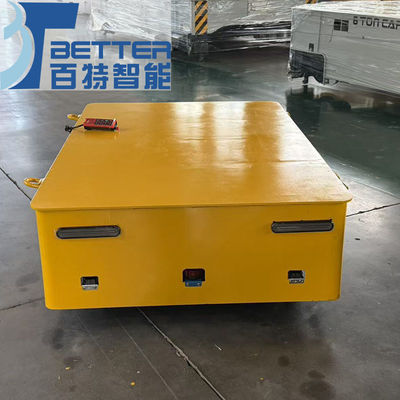

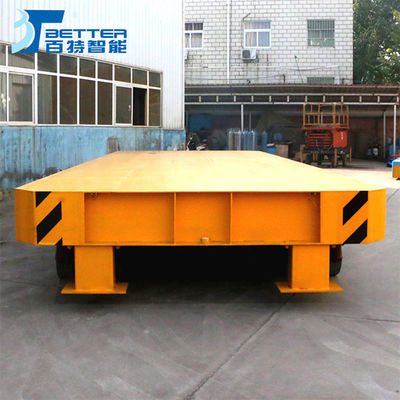

Heat-Resistant Automated Guided Vehicle with PLC Control and 1500 Tons Load Capacity for Heavy Load Transport
Product Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | Motor Power | 3.5-15 KW |
| Running Speed | 0-15 M/min | Wheel Diameter | 300-500 Mm |
| Highlight | Heat-Resistant Automated Guided Vehicle,PLC Control Heavy Load Transport Cart,1500 Tons Load Capacity AGV Transfer Cart |
||
Product Description
Hot Steel Ladle Automatic Handling Equipment For Billet Factory KPJ-10T
Hot Steel Ladle Automatic Handling Equipment for Billet Factory KPJ-10T
Our automatic handling equipment is designed for large load transport with high efficiency and safety in industrial environments. We offer various types of industrial material handling equipment including:
- Coil transfer carts for metal coils and pipes
- Rail guided transfer carts operating on tracks
- Electric trackless transfer trolleys with flexible routing
- Steel ladle transport trolleys with high-temperature protection
- Battery electric flat carts powered by batteries
Detailed Equipment Photos
Applications
PLC Controlled Transfer Cart Rail Drive Steel Platform Applications
This PLC controlled transfer cart rail drive steel platform enables efficient material movement at ground level across various industries and applications including:
- Assembly lines (ring production, loop production)
- Metallurgy industry (steel ladle handling)
- Warehouse transport operations
- Ship industry (maintenance, assembly, container transport)
- Workshop workpiece transport
- Steel factory operations (billets, plates, coils, pipes, structural steel)
- Construction projects (bridges, buildings, concrete structures)
- Petroleum industry equipment transport
- Energy sector (polycrystalline silicon, generators, windmills)
- Chemical industry (electrolytic cells, retorts)
- Railway maintenance and operations
Technical Specifications
PLC Controlled Transfer Cart Rail Drive Steel Platform Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
|---|---|---|---|---|---|
| Rated Load (t) | 5 | 20 | 30 | 40 | 50 |
| Impacted Rated Load (t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| Thickness of Steel Plate | 8 | 14 | 14 | 16 | 16 |
| Cart Weight (t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000×2000 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| Height of Cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Type | Turning while driving with no stop | ||||
| Control Method for Turning | Control button | ||||
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Ground Balance | Mechanical automatic adjustment | ||||
| Operation Method | With wire or no wire | ||||
| Battery Model | D-250 24pcs | D-440 24pcs | D-250 36pcs | D-330 36pcs | D-440 36pcs |
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Yellow and warning sign | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Other Functions | Turning light, night light and power display | ||||
Product Advantages
Key Benefits of Our Heavy Duty Transporters
- Low Noise Operation: Minimal noise levels for improved working environment
- Maximum Safety: Comprehensive safety features protecting operators and materials
- Easy Operation: User-friendly design with comprehensive support and training
Company Overview
Henan Perfect Handling Equipment Co., Ltd.
Specializing in the design and manufacture of electric handling wagons to meet diverse material handling requirements. Our product range includes:
- Industrial Trailers
- Transfer Cars
- Electric Railway Transfer Trolleys
- Scissor Lift Tables
- Turntables
- Specialty handling equipment
Packaging & Shipping
Transportation of Electric Handling Wagon
- For equipment under 6m length and 2.2m width: 20ft container
- For equipment 5.9m-12m length: 40ft container
- Multiple units (2-3 sets): Full container loading
- Single units: LCL Container shipping
- Oversized equipment: Flat rack containers (20ft or 40ft)
- Extra-large dimensions: Bulk cargo shipping
