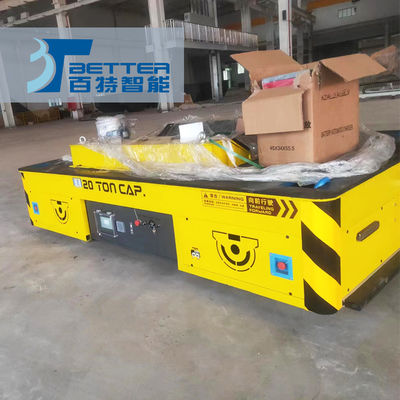

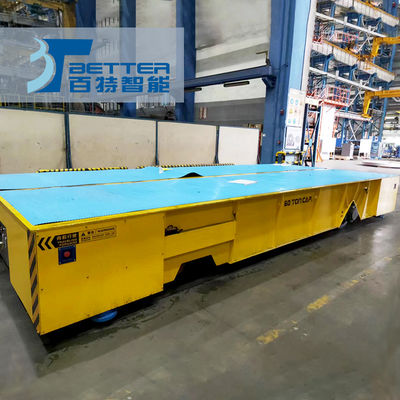

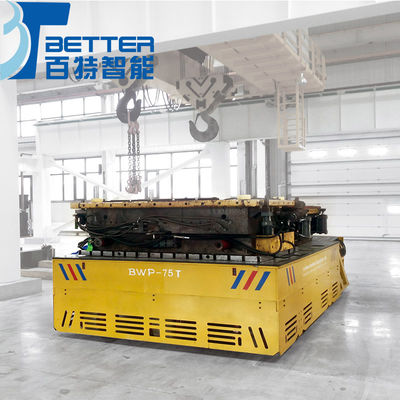

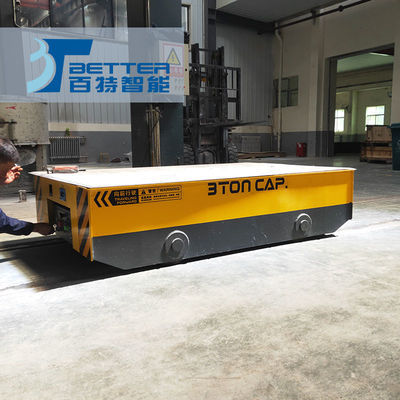

Customized 15t Handle Control Anti-Explosion Heat-Resistant Rail Transfer Cart Electric Transfer Trolley
Product Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | Running Speed | 0-25 M/min |
| Motor Power | 0.8-15 Kw | Wheel Quantity | 4-8 |
| Highlight | 15t Handle Control Rail Transfer Cart,Anti-Explosion Electric Transfer Trolley,Heat-Resistant Heavy Load Transport Cart |
||
Product Description
Customized Industrial Light Plant 15t Handle Control Railway Electric Transfer Trolley
Product Overview
The ladle transfer cart is specially designed for transporting high-temperature materials in inflammable and explosive environments. It features heat insulating materials and explosion-proof motors to withstand extreme temperatures, with specially designed materials, driving systems, and electrical controls.
- The tractor motor is designed for slow start and stop operations to reduce inertia and prevent molten steel or slag splashing
- Dual motor configuration ensures safe production - reserve motor continues operation if main motor is damaged by high temperatures
- Power supply options available based on specific work conditions
Safety Components
All units are equipped with state-of-the-art safety features including safety lights, horns, bumpers, dead man controls, and mushroom-type emergency stop buttons. PERFECT vehicles with semi-automatic and fully automatic control systems include comprehensive automatic safety controls.
Technical Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Key Advantages
- Low noise operation with minimal noise levels
- Maximum safety guarantees for operators and handled materials
- Easy operation with user-friendly driving controls
Applications
With steady traveling and stepless speed regulation capabilities, the boiler transfer trolley is commonly used for transporting steel ladles, aluminum ladles, lead ladles, and steel slag. Designed with heat exposure proof devices for battery, motor, reducer, and electrical components to withstand outer surface temperatures of 200-300°C.
Packaging
Company & Customers
Frequently Asked Questions
How are the transfer trolleys powered?
Powered AC carts have power cables connected directly to electrical panels, typically for carts traveling along fixed paths with cable reels for management. Powered DC carts feature on-board batteries with average running times of 16 hours, with DC battery charging units installed on-board. Extended battery life is available with four batteries instead of two.
How fast can the transfer cart travel?
Standard carts feature drive motor speeds of 50 fpm (with brake). Optional VFD (electric car only) provides soft start/stop movement. Faster travel speeds are available upon request.
