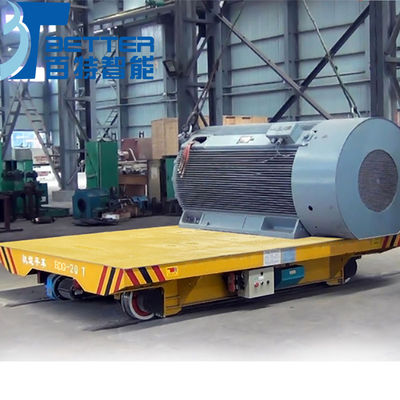

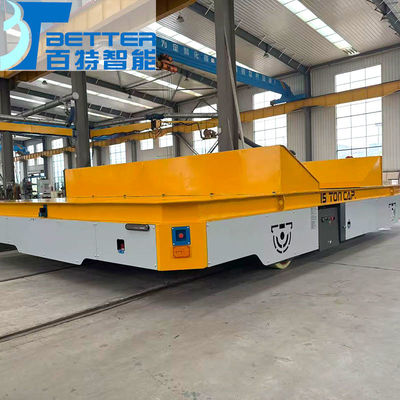

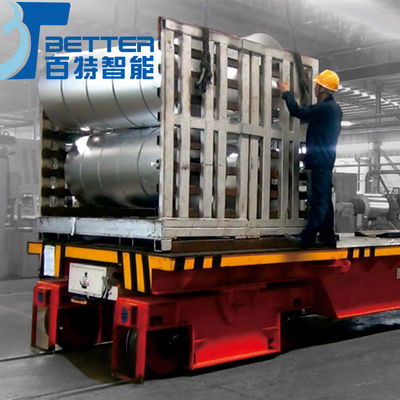

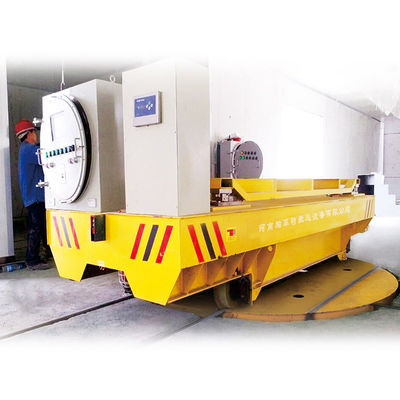

15-ton Load Capacity Anti-Explosion Customized Rail Transfer Cart for Heavy Duty Material Handling
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 |
| Wheel Diameter | 270-600mm | Running Speed | 0-25m/min |
| Motor Power | 0.8-15kw | ||
| Highlight | 15-ton Load Capacity Rail Transfer Cart,Anti-Explosion Rail Trolley,Customized Material Handling Cart |
||
Product Description
15ton China Motorized Transfer Cart for Handling Material Rail Trolley Handling Railer
Product Overview
The 15-ton China Motorized Transfer Cart is an efficient and versatile electric vehicle designed for industrial material handling on fixed rail systems. Also known as a rail trolley or railer, it is engineered to transport medium-duty loads such as raw materials, work-in-progress components, and finished goods between workshops, assembly lines, and storage areas.
Powered by an electric system, it ensures clean, quiet, and low-maintenance operation, making it ideal for maintaining a controlled factory environment. This cart serves as a reliable and organized logistics link, significantly enhancing workflow efficiency, reducing manual labor, and optimizing the overall production process in manufacturing and warehousing facilities.
Product Gallery
Technical Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Customization Inquiry
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using condition
Key Advantages
Low noise operation for improved working environment
Maximum safety guarantees for operators and handled materials
Easy operation with minimal training requirements
Easy implementation into manufacturing processes without complex installation
Suitable for all kinds of weight with payloads up to 300 tons per trolley
Packaging & Shipping
Container Shipping: For length less than 6m and width less than 2.2m, transported by 20ft container. For length between 5.9m and 12m, transported by 40ft container.
Multiple Units: 2-3 sets can be transported by full container. Single sets can be transported by LCL Container.
Oversized Equipment: For width beyond 2.2m, transported by flat rack (20 or 40 ft). Equipment beyond standard dimensions requires bulk cargo shipping.
