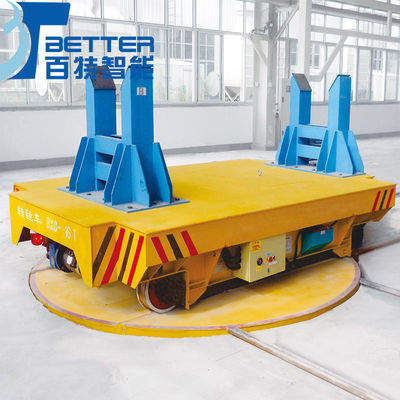

Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BWT |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Explosion, Heat-Resistant, Lifting, Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | turntable rail transfer cart,electric rail transfer cart,electric rail transfer trolley |
||
Product Description
Customized Electric Turntable Rail Transfer Cart for Seamless Cargo Loading Systems
1.Introduction of Electric Handling Bogie

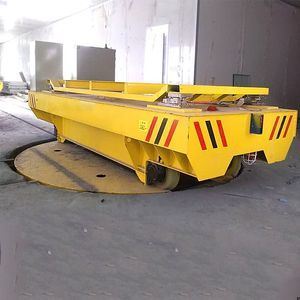

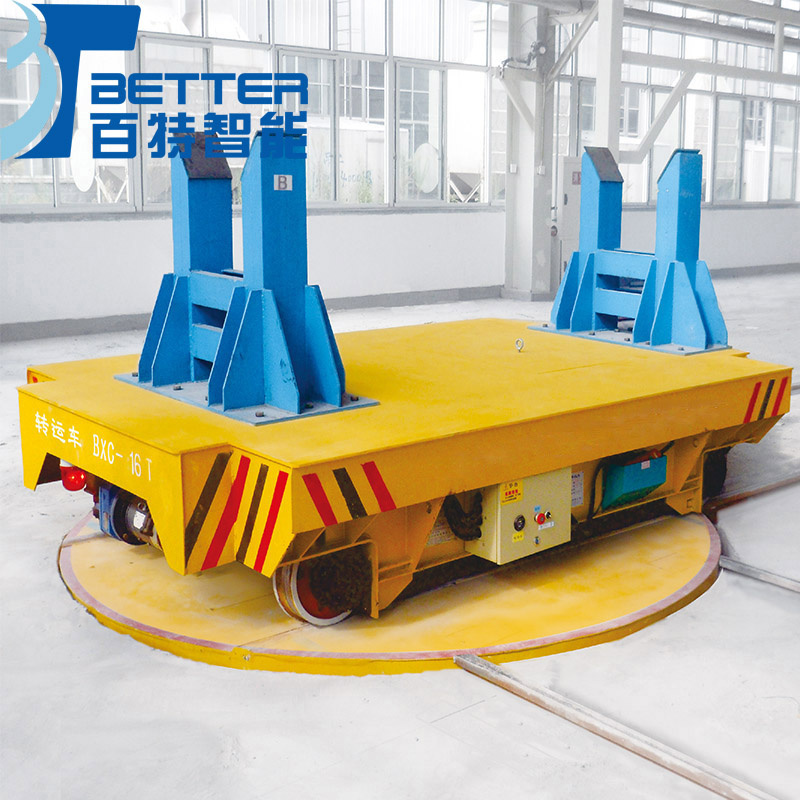

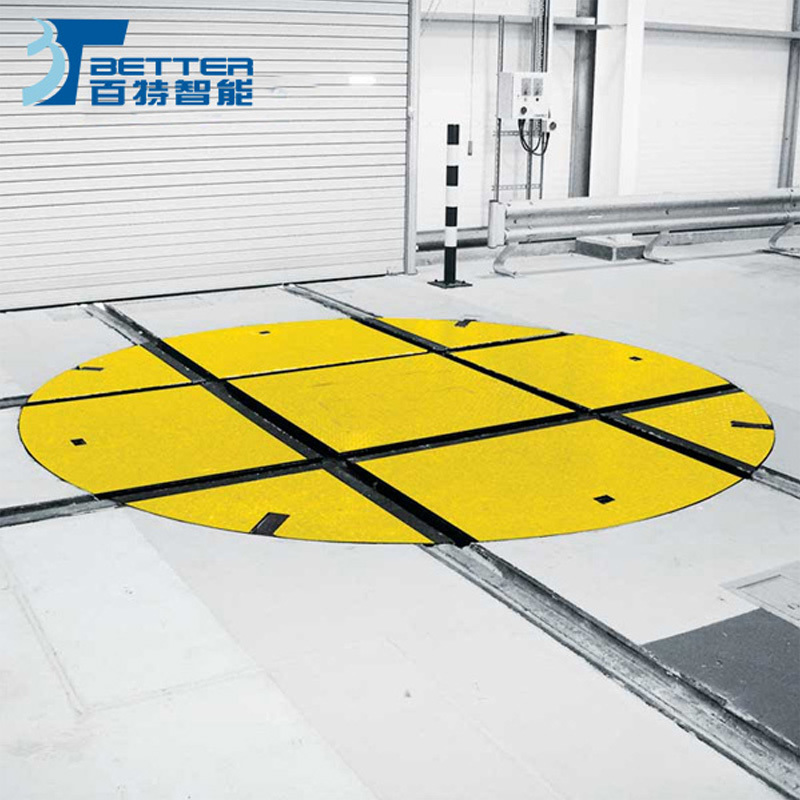

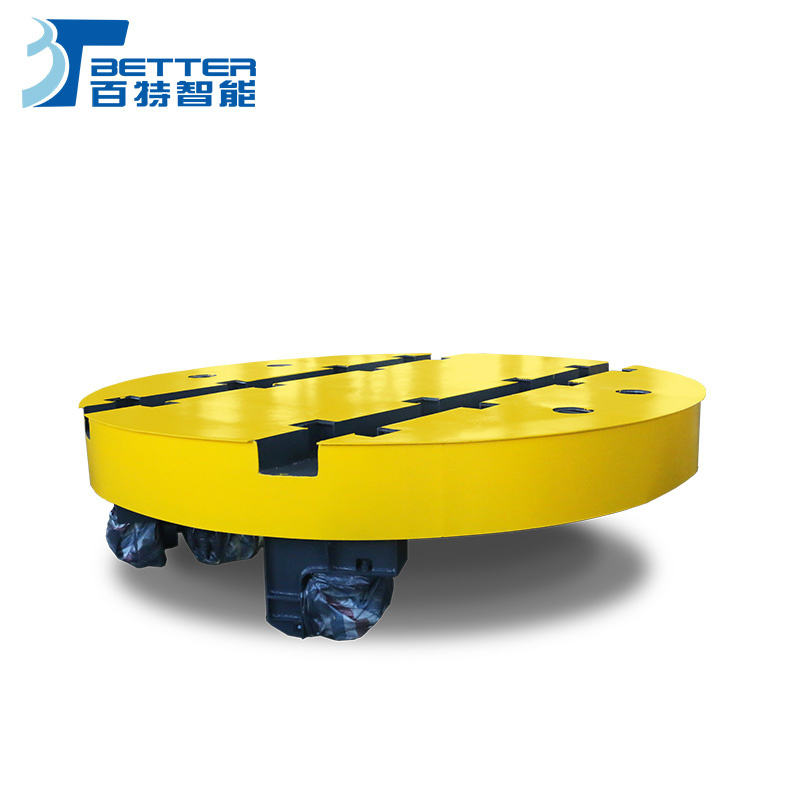

The turntable rail transfer car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: transfer car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the transfer car can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.
2.Product detail3.Parameter of turntable transfer cart
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
| Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire | |||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
4.Advantages of Electric Handling Bogie
Low noise It causes low noise level.
Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
5. Customizable of Electric Handling Bogie
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel Base,Detachable structure etc.
Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.
Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.
6.Application of Electric Handling Bogie
Uses of heavy industrial transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
7.Applicable sites of Electric Handling Bogie
BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
8. Factory and Delivery
9. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
