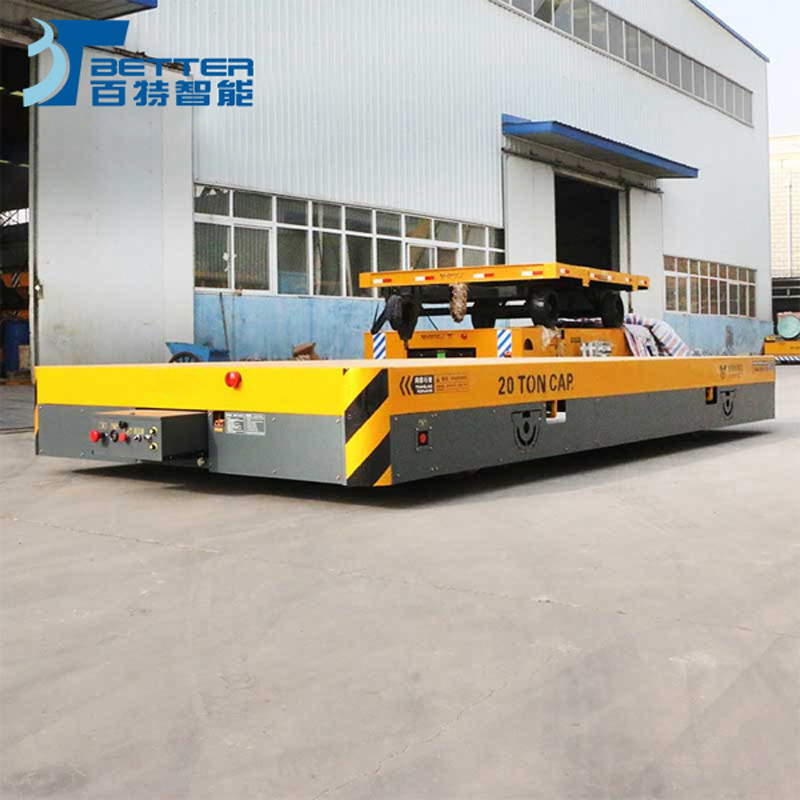

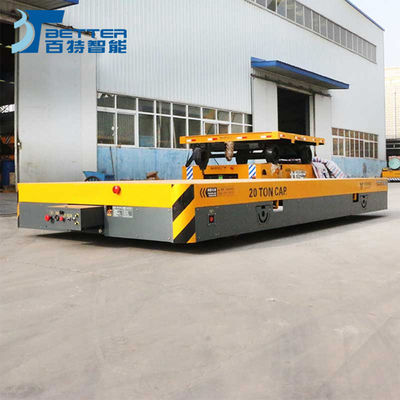

1-300 Ton Assembly Line Trackless Transfer Cart Battery Power With Lift Table
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | KPX |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 300 Ton Trackless Transfer Cart,1 Ton Trackless Transfer Cart,Battery Power trackless transfer trolley |
||
Product Description

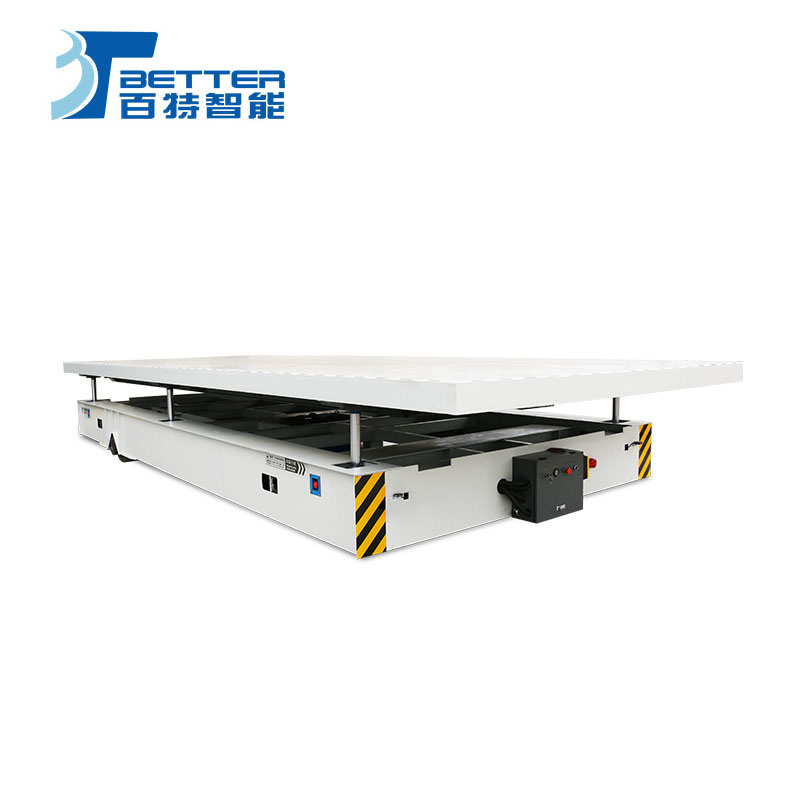

Assembly Line Using Transfer Trolley with Lift Table
1.Introduction of Material Transport Shuttle
The rail transport shuttle along a fixed path loads up to 300 tons. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base. These rail transfer equipment are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.
2.Application of Material Transport Shuttle

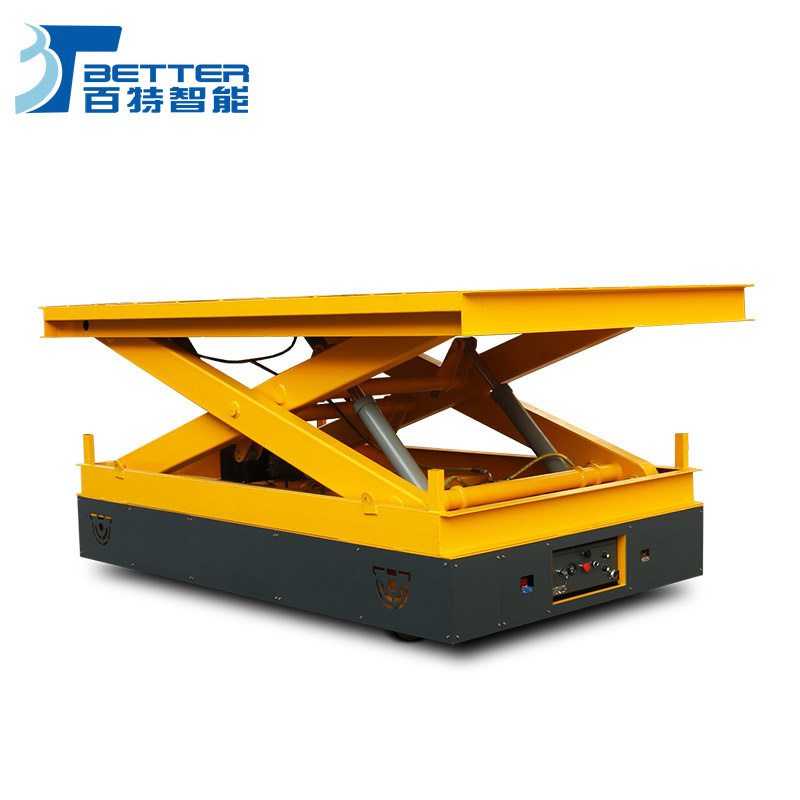

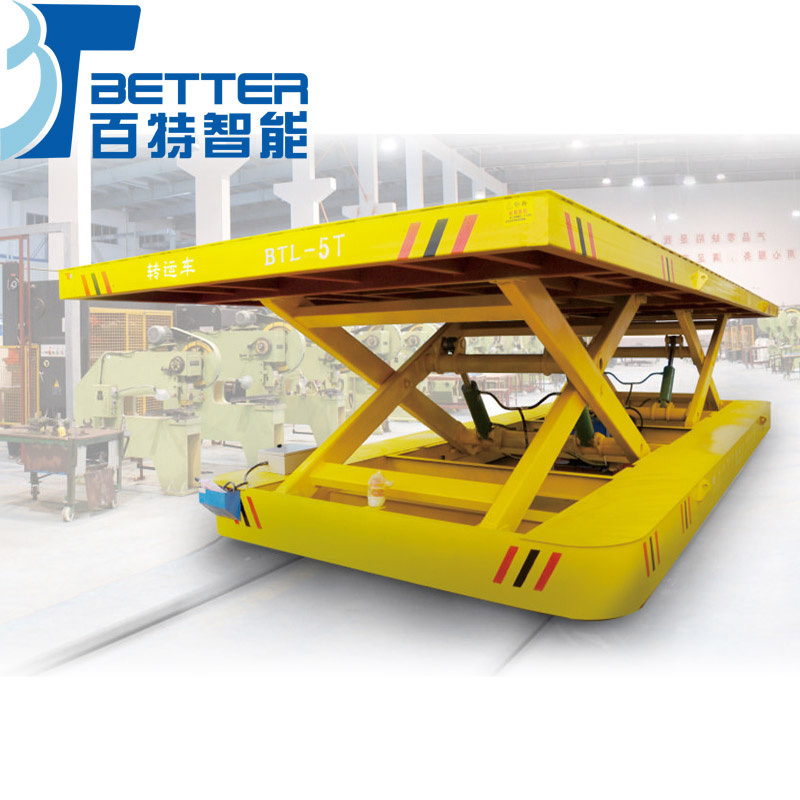

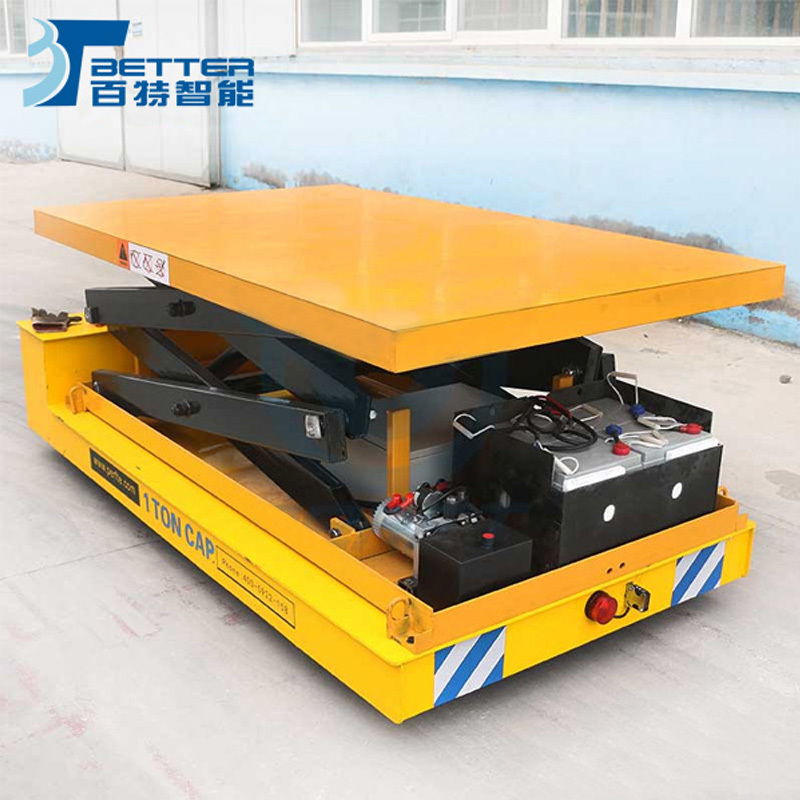

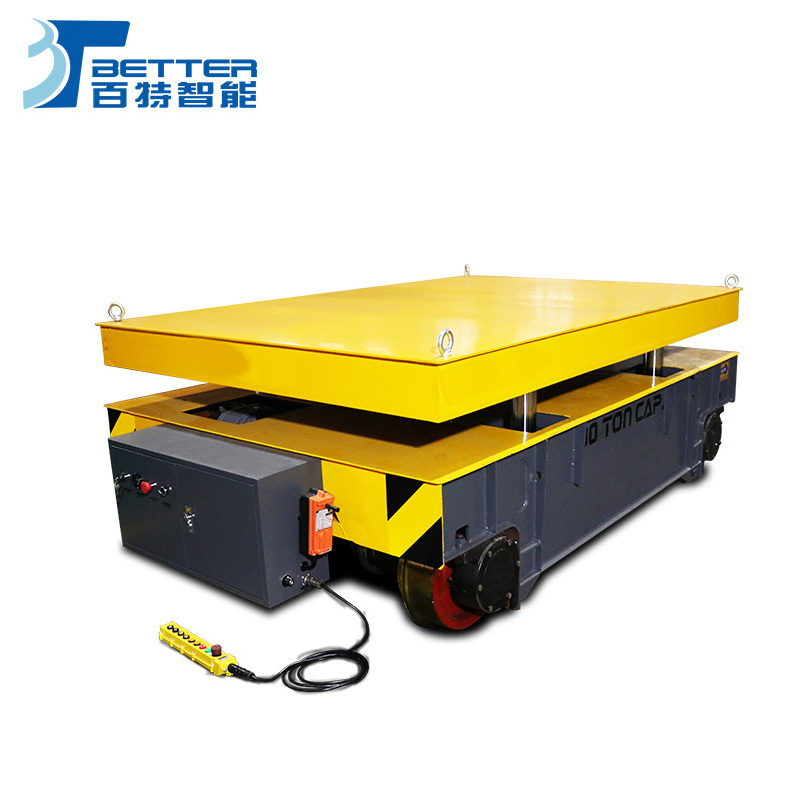

Material transport shuttle with direct lift tables usually are used in applications where precise positioning and maximum load stability are required. These units are equipped with a "ball screw" lift arrangement mounted at the 4 corners of the deck. Our lift tables are available with either hydraulic or electric power supply configurations. In addition, semi-automatic or fully automatic control systems are available which can be fully integrated into a larger control system.
3. Parameter of Material Transport Shuttle
| BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE | ||||||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size(mm) | Length( L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width( W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth( H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф300 | Ф350 | Ф350 | Ф400 | Ф400 | Ф500 | Ф500 | Ф600 | Ф600 | Ф600 | Ф600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(Kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
| Notes.1.Load capacity, table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel);c.Battery type( Free of maintenance Battery,lithium battery,explosion-proof battery,and anti- high temperature battery; d motor(DC motor with brush and DC motor brushless ; e.Electrical parts(imported or made in China | ||||||||||||||
4.Advantages of Material Transport Shuttle
Δ Increases production by saving material delivered time
Δ Decreases the use of cranes and tractor thereby greatly improving plant safety
Δ Avoids damage to material or product
Δ Decreases the use of cranes and tractor thereby greatly improving plant safety
Δ Avoids damage to material or product
5.Other Products
6.Company Strength
6.Company Strength
Since 2003, we have provided standard and custom material handling systems and equipment on time, on budget, while exceeding the expectations of our domestic and international customers. In short, we make difficult jobs seem easy.
Our sales staff is knowledgeable and available to assist you in determining the optimal solution to your material handling needs.
We Provide Best Products and Best Available Price
Contact us today at +86-373-3020116 and see how we can find a solution for your handling needs.
Our sales staff is knowledgeable and available to assist you in determining the optimal solution to your material handling needs.
We Provide Best Products and Best Available Price
Contact us today at +86-373-3020116 and see how we can find a solution for your handling needs.
7. Q&A
Will A Railway Shuttle Be A Good Solution?
Since there are many material handling solutions on the market which one is the right choice? For starters, transfer shuttles are movable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer shuttle?
Transfer railway truck is an excellent affordable choice for the ability to handle heavy loads. The railway shuttles are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the shuttle deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer shuttles?
Coils (V-Groove deck)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
