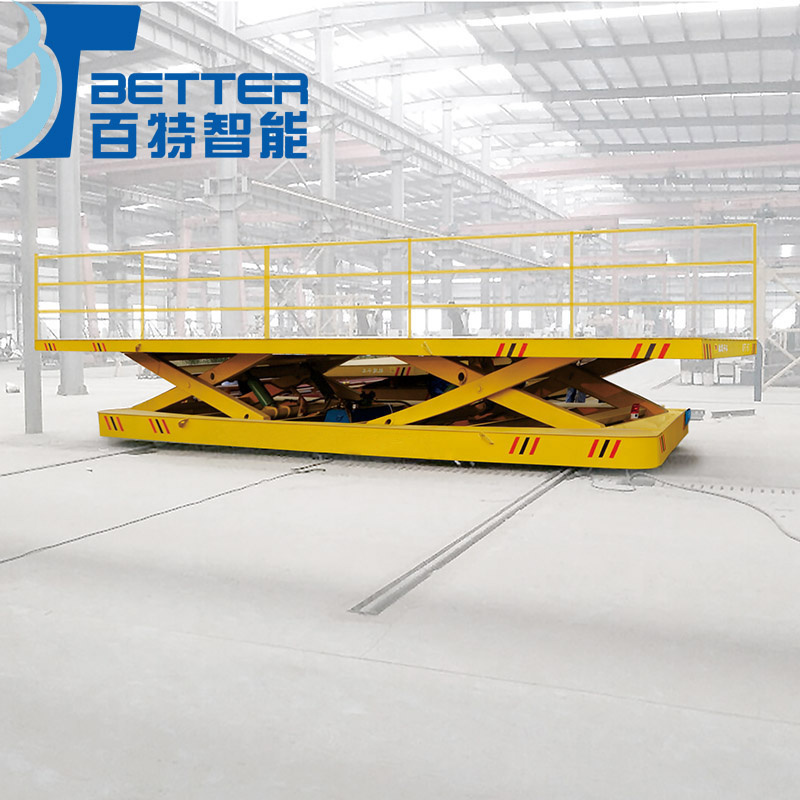

20t Pallet Lifting 1m Hydraulic Lift Table Scissor Lift Lifting Platform
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BWP |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Trademark | BETTER | Origin | Xinxiang |
| HS Code | 84289090 | Production Capacity | 50 Sets/Month |
| Highlight | 20t scissor lift lifting platform,1m scissor lift lifting platform,Anti Explosion hydraulic lift table |
||
Product Description
20T Pallet Lifting 1m Hydraulic Lift Table Sizzer Lifts
This 20-ton hydraulic scissor lift table is engineered for heavy-duty pallet handling and vertical transportation in industrial settings. With a lifting capacity of 20 metric tons and a vertical travel range of up to 1 meter, it ensures reliable and stable lifting, lowering, and positioning of loaded pallets, machinery, or bulky goods. The scissor mechanism, constructed from high-strength steel, offers exceptional durability and smooth operation under full load, while the integrated hydraulic system provides precise height control and safety during repetitive use. Equipped with safety features such as mechanical locks, overload protection, and anti-slip platforms, this lift table improves workflow efficiency, reduces manual labor, and enhances operational safety in warehouses, production lines, or logistics centers.
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam structure | ||||||
| Thickness of the steel plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 3600*2000 | 4000*2200 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||||
| Control method for turning | Control button | ||||||
| Turning structure | Mechanical | ||||||
| Motor power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 350-2/220-2 | 350-2/240-2 | 400-2/240-2 | 400-2/320-2 | 540-2/360 | 580-2/360-2 | 580-2/360-2 |
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-20 | ||||||
| Brake principle | Electric magnetic brake | ||||||
| Ground balance | mechanical automatic adjustment | ||||||
| Operation method | With wire or no wire | ||||||
| Battery model | D-250 24pieces | D-330 24pieces | D-400 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||||
| Charger's installation | Installed on cart | Split-type | |||||
| Cart color | Yellow and warning sign | ||||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
| Application |
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
