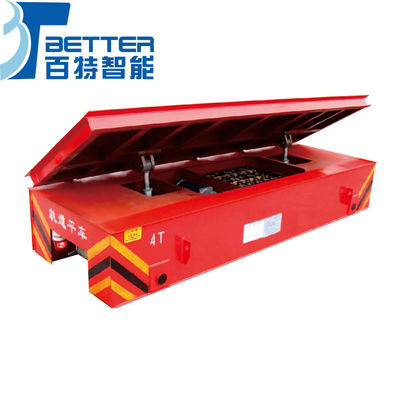

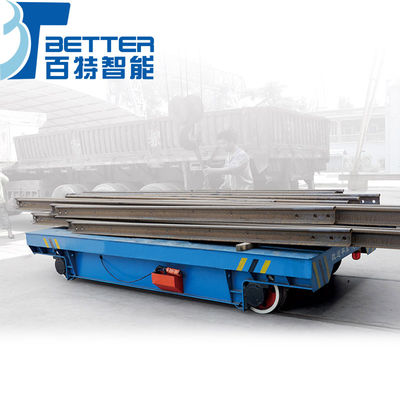

Anti Explosion Industrial Trailer Built Trailers Tilt Utility Skid Steer Rail Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BP |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | Anti Explosion Industrial Trailer,Heat Resistant Industrial Trailer,Battery Powered trailer industrial |
||
Product Description
Quality Built Trailers Tilt, Utility, Skid Steer Rail Cart

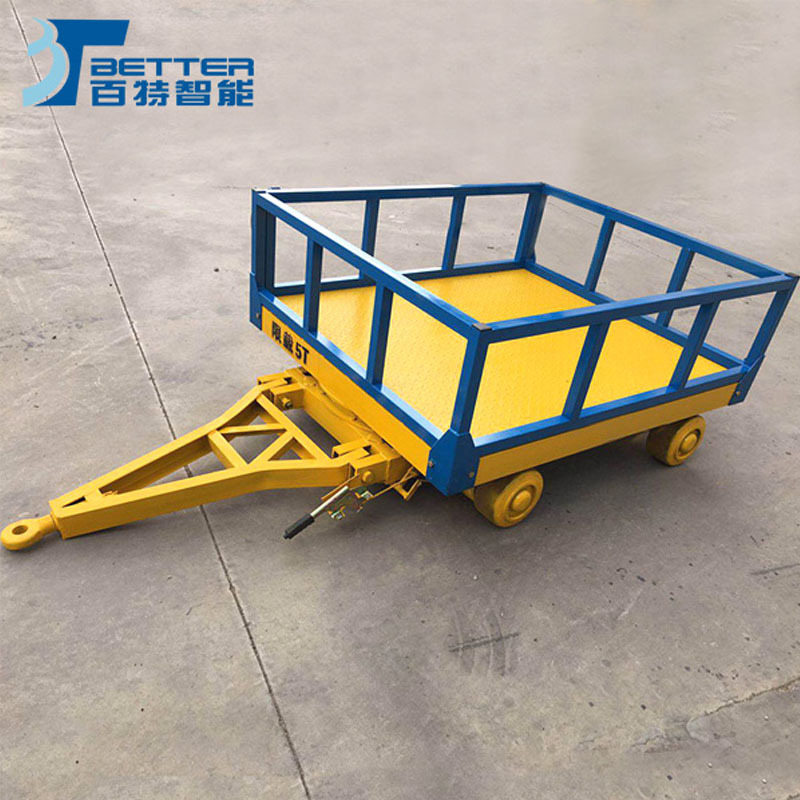

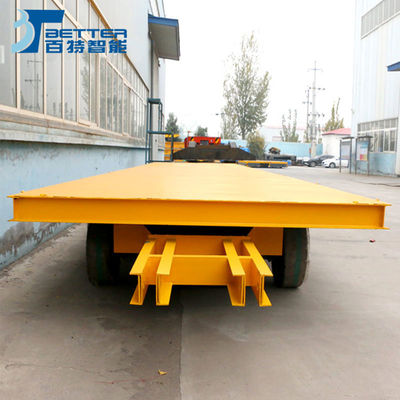

Introduction of Hand Cart
The Hand Cart are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift of adequate capacity. They are a cost effective choice to acquiring another powered transfer cart. For on-rail types, a winch can be applied to move trailes. Pull type mobile trailers are versatile and can be easily customized to suit applications.
Application of Hand Cart
Our "light-duty" trailers are ideal for warehousing, light manufacturing and automotive assembly plants.
Our "medium-duty" trailers are a proven Hand Cart used for a wide range of applications and all industries. The majority of the units manufactured range in capacity from 5 Ton to 50 Ton.
Our "heavy-duty" trailers are designed for handling the large and heavy loads found in the steel, automotive and heavy manufacturing industries. With load capacities that range from 50 ton to 300 ton and they designed for the toughest job. In addition to designing the trailer to handle the load, they are designed for impact loading by overhead crane. In short, these trailers are designed to withstand the punishment of heavy industry.
Parameter of Hand Cart
| Model | BP-2t | BP-5t | BP-10t | BP-16t | BP-20t | BP-25t | BP-30t | BP-40t | BP-50t | BP-63t | BP-80t | BP-100t | BP-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Processing of Hand Cart
Factory Visiting & Our Factory
Welcome to Henan BETTER Handling Equipment Co., Ltd. We are a company specializing in the Design and Manufacture of specialty material handling equipments to solve every transfer requirement. Every BETTER product is designed to meet the specific requirements of each application. Our unique approach to the design of each product includes a detailed review of the customer requirements, used to develop the functional specification of the product.
Packaging & Shipping of Hand Cart
*For length is less than 6m, the width is less than 2.2m. Electricity Transport Car will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.*If the length is less than 12m, the width is beyond 2.2m. Electricity Transport Car needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Other pruducts
Q&A
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)

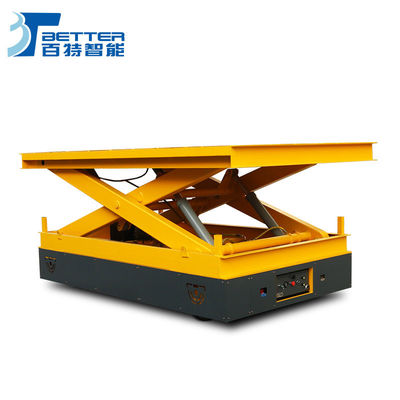

8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
