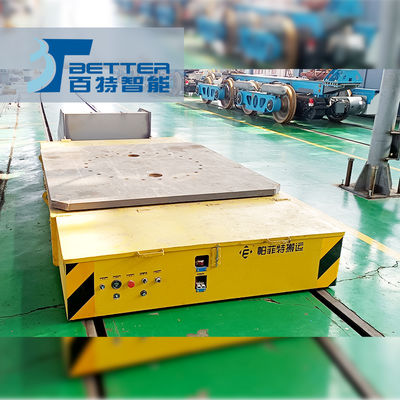

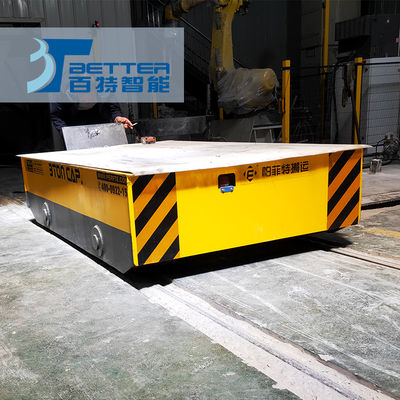

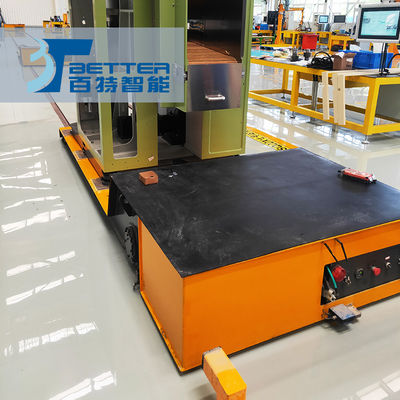

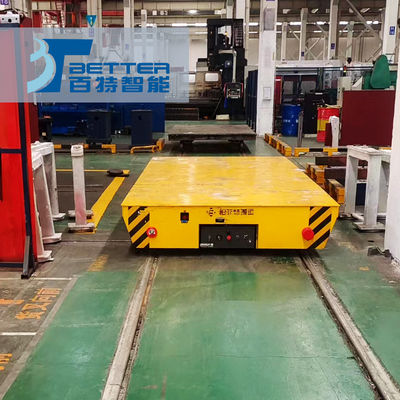

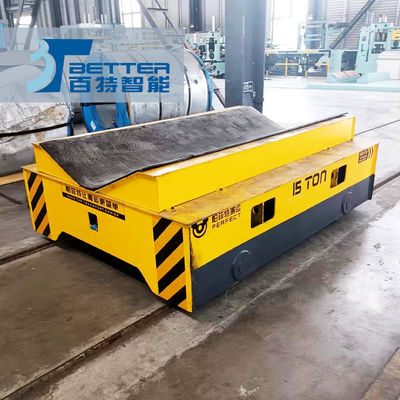

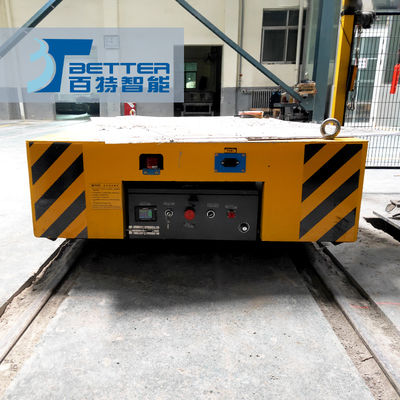

1-50 Ton Motorized Transfer Trolley Workshop Electric Rail Transfer Car
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BDG |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | ||
| Highlight | motorized transfer trolley workshop,electric rail transfer car,50 ton motorized transfer trolley |
||
Product Description
1-50 Ton Motorized Transfer Trolley Workshop Electric Rail Transfer Car
1. Introduction of Railway Truck
The railway truck shuttles along a fixed path. Standard railway truck is DC powered. Standard truck come in lengths of 4000, 4500 or 5000 mm and widths of 2200 or 2500mm. Larger railway truck capacities and sizes are available for specific applications. Our railway truck loads up to 300 tons. The truck can be also AC powered. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.
The railway truck shuttles along a fixed path. Standard railway truck is DC powered. Standard truck come in lengths of 4000, 4500 or 5000 mm and widths of 2200 or 2500mm. Larger railway truck capacities and sizes are available for specific applications. Our railway truck loads up to 300 tons. The truck can be also AC powered. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.
2.Application of Railway Truck
Typically the truck used for moving materials such as steel or tanks of liquids from one location to another or carry an entire shift of production and even serve as a stable movable machine base. Trucks can also be part of automated crane systems, serving to shuttle goods, material, or product to and from manufacturing processes or storage locations.
3.Applicable sites of Railway Truck
The railway truck is mainly applied in assembly line, metallurgy industry , warehouse transport, ship industry , workpiece transport in workshop, lathe transport, steel factory, construction, petroleum industry, energy, chemical industry, railway etc.
4. Parameter of Railway Truck
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
5.Advantages of Railway Truck
Δ Increases production by saving material delivered time
Δ Decreases the use of cranes and tractor thereby greatly improving plant safety
Δ Avoids damage to material or product
6.Company Strength
Since 2003, we have provided standard and custom material handling systems and equipment on time, on budget, while exceeding the expectations of our domestic and international customers. In short, we make difficult jobs seem easy.
Our sales staff is knowledgeable and available to assist you in determining the optimal solution to your material handling needs.
We Provide Best Products and Best Available Price
7. Q&A
Will A Railway Truck Be A Good Solution?
Since there are many material handling solutions on the market which one is the right choice? For starters, transfer trucks are movable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Truck?
Transfer railway truck is an excellent affordable choice for the ability to handle heavy loads. The railway trucks are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the truck deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
Coils (V-Groove deck)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
Tanks (size/stability for uniformly distributed loads)
Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
Sub-Assembly shuttle from one line to another line
Maintenance cart for motors and pumps
Equipment support (stand-off deck) for navigating loads to locations with a plant facility
Material shuttle for steel tubing (flat decking with guard rails)
Elevating platform for assembly process (integrated screw-jack table)
Sand casting (flat decking)
