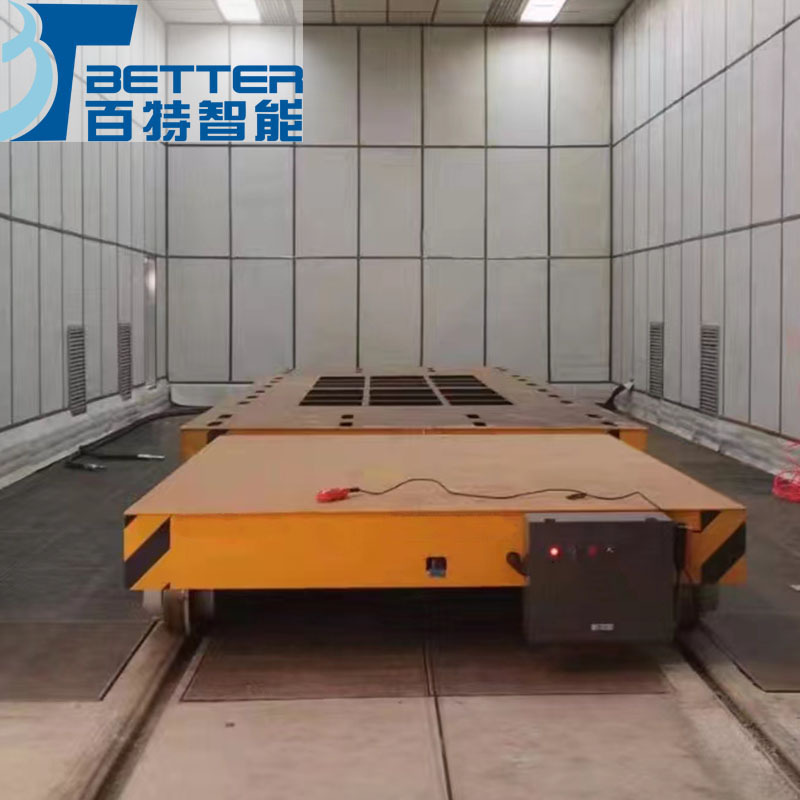

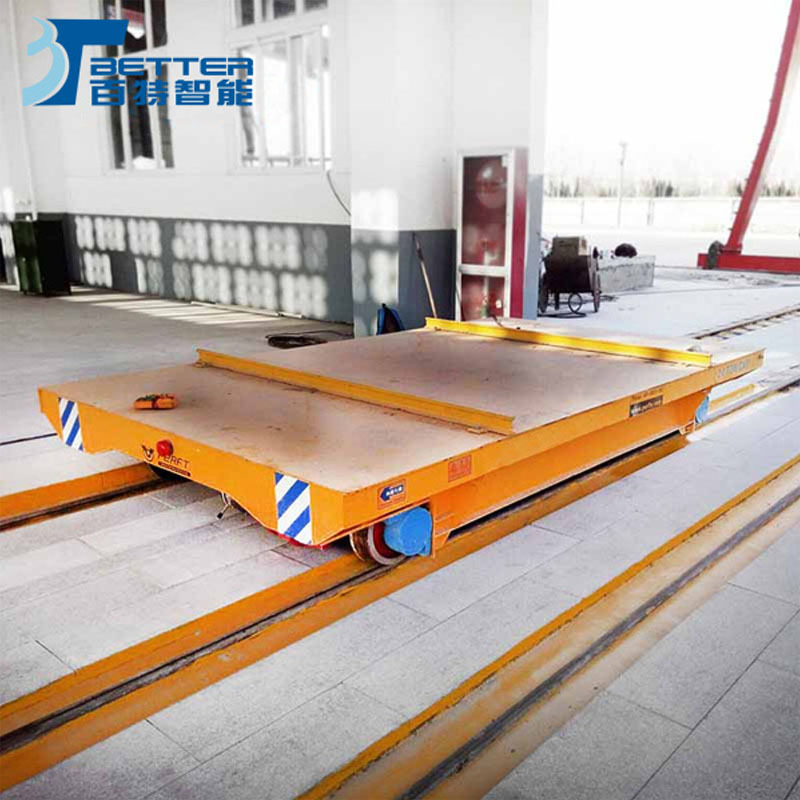

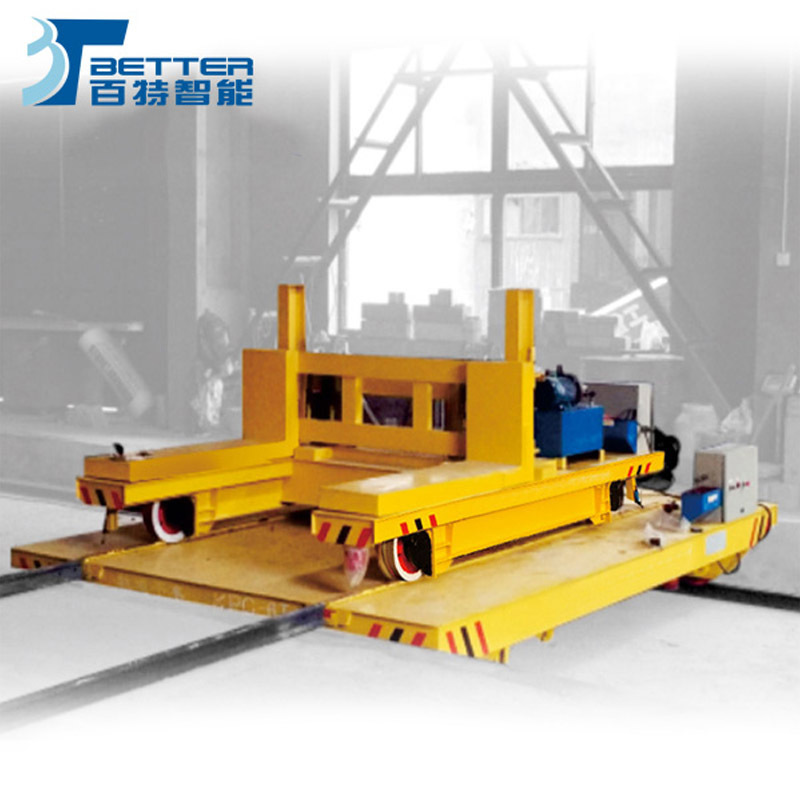

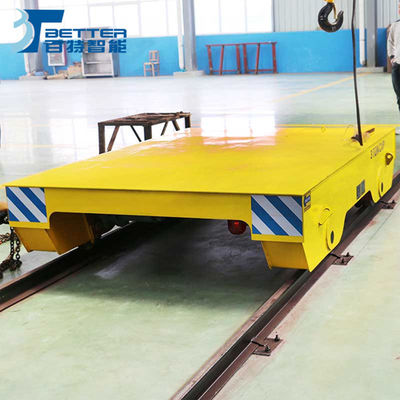

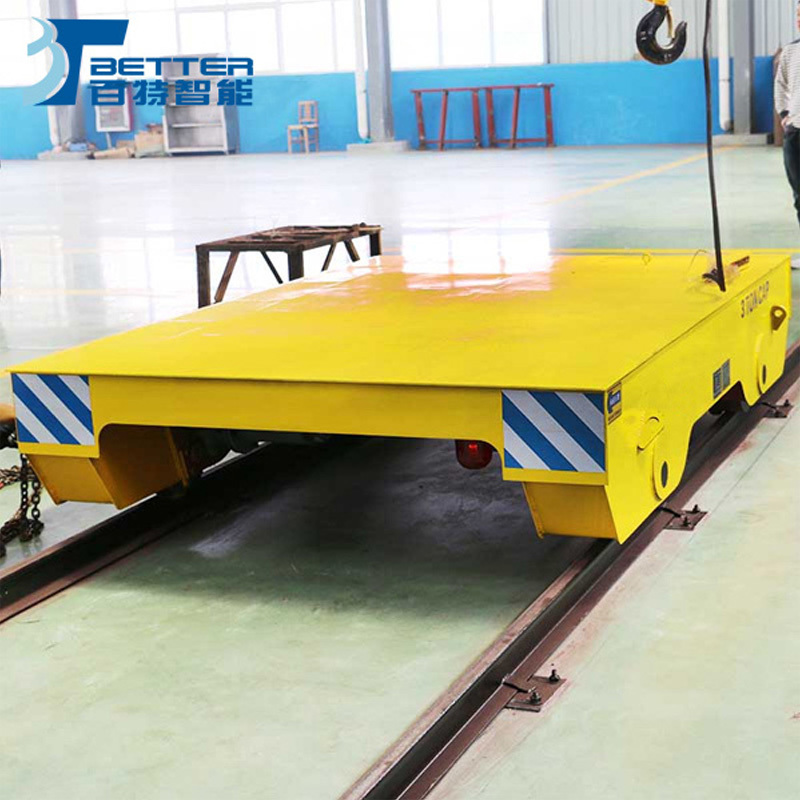

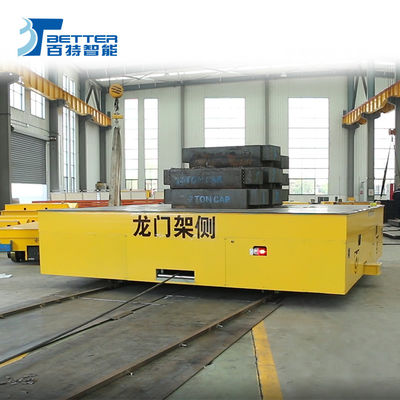

Customized Industrial Light Plant 15t Handle Control Railway Electric Transfer Trolley
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | ||
| Highlight | railway electric transfer trolley,industrial trolley transfer,industrial electric transfer trolley |
||
Product Description
Customized Industrial Light Plant 15t Handle Control Railway Electric Transfer Trolley
Introduction of Bolier Transfer Trolley
- The ladle transfer carts is specially designed to transfer the high-temperature material is available in inflammable and explosive environment.
- The heat insulating material and explosion-proof motors are used in the ladle transfer carts to resist the high temperature and the cart's materials, driving system and electrical control should be specially designed.
- The tractor motor of the ladle transfer carts is designed in slowly start and stop to reduce the inertia of the car and avoid molten steel or slag from splashing.
- Usually the ladle transfer carts prepare two motors for safe production. while the main motor is damaged by the high temperature the reserve motor can continue work in emergency situations.
- Power supply can be selected according to specific work conditions.
Components of Bolier Transfer Trolley
All units are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons. PERFECT vehicles equipped with semi-automatic and fully automatic control systems come equipped with a wide range of fully automatic safety controls.
Parameters
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Advantages of Bolier Transfer Trolley
The advantages of transfer cart
These are the advantages included in using heavy duty transporters:
----Low noise:It causes low noise level.
----Maximum safety:Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation: These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Application of Bolier Transfer Trolley
With the functions of steady traveling, stepless speed regulation, the boiler transfer trolley is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the boiler transfer trolley should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance.
Packing of Bolier Transfer Trolley
Company and customer
Q&A
How are the transfer trolley powered?
Powered AC carts have power cable connected directly to an electrical panel, typically for carts that travel along a fixed path. Cable reels can be installed for cable management.
Powered DC carts have on-board batteries that have an average running time of 16 hours. DC battery charging units can be installed on-board for convenience. Extended battery life can be accomplished by having four batteries rather than two.
How fast can the transfer cart travel?
Typically, carts come with drive motor speed of 50 fpm (with brake). Optional consideration can be given to ordering VFD (electric car only) for soft start/stop movement. Faster travel speeds can be ordered.
Powered AC carts have power cable connected directly to an electrical panel, typically for carts that travel along a fixed path. Cable reels can be installed for cable management.
Powered DC carts have on-board batteries that have an average running time of 16 hours. DC battery charging units can be installed on-board for convenience. Extended battery life can be accomplished by having four batteries rather than two.
How fast can the transfer cart travel?
Typically, carts come with drive motor speed of 50 fpm (with brake). Optional consideration can be given to ordering VFD (electric car only) for soft start/stop movement. Faster travel speeds can be ordered.
