Insulated Rail Rotary Transfer Cart with 360° Intelligent Rotation for Heavy Load Transportation in Steel Industry
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BXC |
| Minimum Order Quantity | 1 Piece |
| Price | US $2,800-3,000 / P |
| Packaging Details | The Whole Cart Will Be Packed by Tarp. |
| Delivery Time | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | BXC | Product Name | Heavy Load Transport Cart |
|---|---|---|---|
| Usage | Heavy Duty Material Transportation | Application | Steel Industry, Factory, Warehouse, Port |
| Material | Steel | Load Capacity | 1-1500 Tons |
| Control Mode | Pendant/Remote/PLC Control | Control Way | Hand Pendant/Remote Controller |
| Color | Red, Blue, Yellow, Black, Etc. | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Specification | 2000*2000*500 |
| Trademark | BETTER | Origin | China |
| HS Code | 84289090 | Production Capacity | 3000/Years |
| Highlight | 360° Intelligent Rotation Transfer Cart,Insulated Rail Electric Turntable,Rotary Transfer Heavy Load Cart |
||
You can tick the products you need and communicate with us in the message board.
Product Description

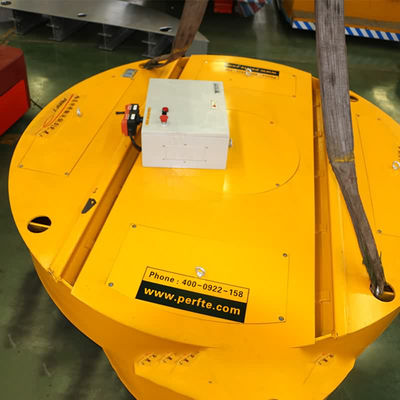

Insulated Rail Rotary Transfer Cart System
This product is an insulated track-type intelligent transfer trolley specially developed for special industrial environments. Adopting an original insulated track system and anti-electric shock protection technology, it can operate safely in high-voltage environments, achieving precise transportation of large objects and 360° intelligent rotation positioning, solving the material transportation problems in live-line operation scenarios.
Detailed Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Customization Options
Mechanical Options Include:
- Deck Railings
- Wood Decking Material
- Screw-Jack Lift Deck
- Paint Color (customer specified)
- Rail Guides
- Floor Rail
- End Stops
- Urethane Wheels (not available on guided carts)
- Live Axle
Applications

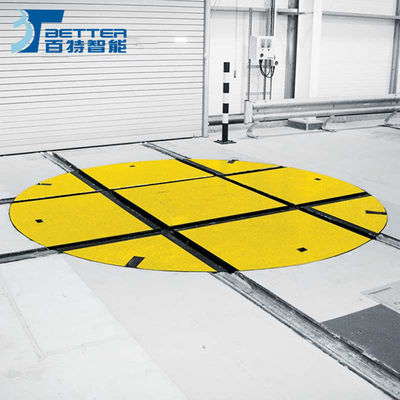

This equipment is mainly used to solve the problem of switching and connecting track flatcars between tracks in different directions. Its core function is to achieve multi-directional diversion, precise positioning and direction conversion of rail vehicles within a limited space.

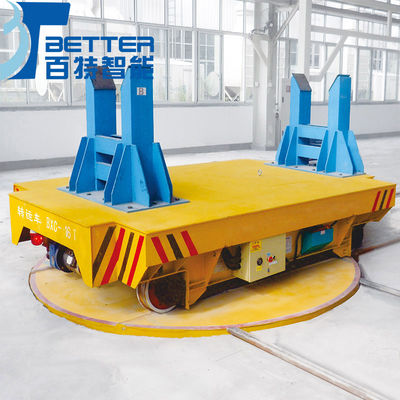

For instance, in the metallurgical workshop, the turntable is used to transfer the flat car loaded with steel coils from the longitudinal main road to the transverse storage track. In large manufacturing plant areas, the turntable forms the core hub of the circular logistics network, significantly enhancing the flexibility and space utilization of the rail transportation system.
Related Products
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements.
- Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
- Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
- Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
-
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
-
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Packing and Shipping
*For length less than 6m and width less than 2.2m, transport by 20ft container. For length between 5.9m-12m, transport by 40ft container. For 2-3 sets, full container. For 1 set, LCL Container.
*For width beyond 2.2m, transport by flat rack (20 or 40 ft). For equipment beyond these dimensions, consider bulk cargo.
Selection Guide
Please provide the following information:
- Load capacity?
- Table size? (Length; Width; Height)
- What cargo do you use the cart to transfer?
- What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
- How about the running distance?
- What type(s) of power supply are required?
- Do you need any special functions?
