Heavy Duty Electric Turntable Transfer Cart with Motorized Rotation and Radio Control for Steel Industry Warehouse and Plant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Explosion, Heat-Resistant, Lifting, Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | Heavy duty electric turntable cart,Motorized rotation transfer cart,Radio control turntable for steel industry |
||
Product Description

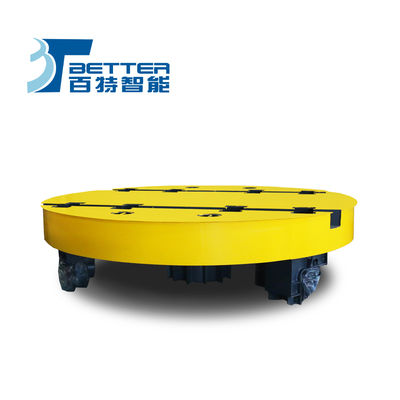

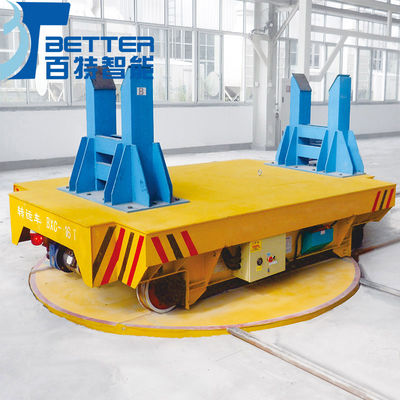

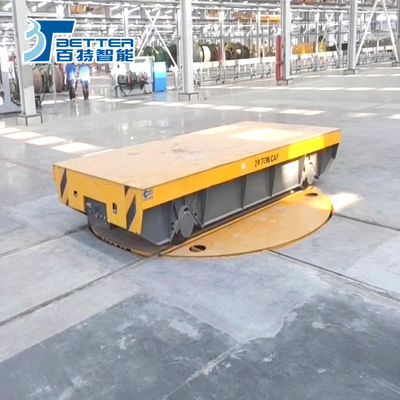

Heavy Duty Electric Turntable Transfer Cart
An intelligent heavy-duty handling equipment integrating electric walking, electric rotation, and wireless remote control. Specifically designed for multi-directional transfer and precise positioning of steel coils, plates, and large components within steel industry warehouses and workshops.
Product Overview
- Load Capacity: Standard models 30-150 tons, customizable to requirements
- Rotating Mechanism: Central slewing bearing driven by high-torque servo/variable frequency motor, enabling 360° continuous smooth rotation with ±0.5° positioning accuracy
- Walking Mechanism: Heavy-duty rail guidance with customizable gauge, dual or four-drive configuration
- Drive System: AC motor with hard-toothed surface reducer for powerful performance
- Control System: Industrial-grade wireless remote control with ≥100 meter range, integrating walking, rotation, and emergency stop functions
Core Functions
- Electric Precise Rotation: Remote-controlled platform rotates precisely at any angle for rapid material direction adjustment
- Wireless Remote Control: Operator can freely and safely control equipment from optimal perspective
- Fixed-Point Positioning: Integrates walking and rotating functions for precise material conveyance to multiple workstations
- Linked Operation: Compatible with peripheral equipment like roller conveyors and elevators for automated logistics integration
Safety Features
- Dual emergency stop system (remote control and vehicle body)
- Rotating area sound and light warning with mechanical anti-collision barrier
- Travel and rotation limit switches with anti-derailment devices
- Overload, overcurrent, and leakage protection in electrical system
Customization Options
- Deck Railings
- Wood Decking Material
- Screw-Jack Lift Deck
- Custom Paint Colors
- Rail Guides
- Floor Rail
- End Stops
- Urethane Wheels
- Live Axle
Technical Specifications
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
|---|---|---|---|---|---|---|---|---|
| Rated Load (T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000×1500 | 2500×1500 | 3000×2000 | 3200×2000 | 4000×2000 | 5000×2200 | 6000×2400 | 6000×2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254×102 | 305×165 | 559×254 | 559×356 | 22×9-10 | 22×9-10 | 22×10-16 | 22×14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire | |||||||
| Frame Material | Q235 | Q345 | ||||||
| Color | Customized | |||||||
| Speed (km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Typical Applications
- Matrix storage and outbound of steel coils in finished product warehouses
- Line transfer and alignment of billets in slab warehouses
- Transfer and direction adjustment of large workpieces between different workstations
Custom Engineering Solutions
Every product is designed to meet specific client requirements. Our design process includes detailed review of client needs to develop comprehensive functional specifications. We incorporate years of design experience to ensure complete customer satisfaction.
Contact Us:
Wechat /WhatsApp/ Tel: +86 18790675017
Email: market.xxbse@gmail.com
Provide your specifications and requirements for a customized proposal.
Customer Visits & Company
Certifications
Service Support
Pre-sale Services
- Free working condition research and solution simulation
- Optimal logistics route and equipment layout planning
After-sale Services
- On-site installation and commissioning by engineers
- Comprehensive training covering theory and practical operation
- 18-month warranty period
- 7x24-hour technical response
- Lifetime maintenance support
