Best Selling Heat Resistant 1-300 Ton Industrial Transfer Trolley OEM & Manufacturing
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | heat resistant transfer trolley,industrial transfer cart 300 ton,OEM trackless transfer trolley |
||
Product Description

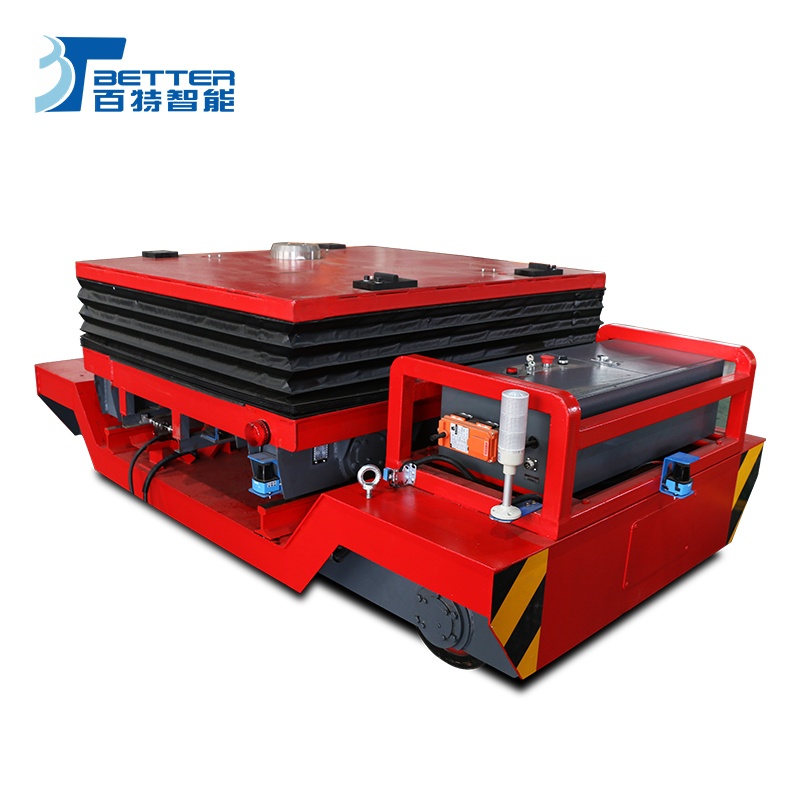

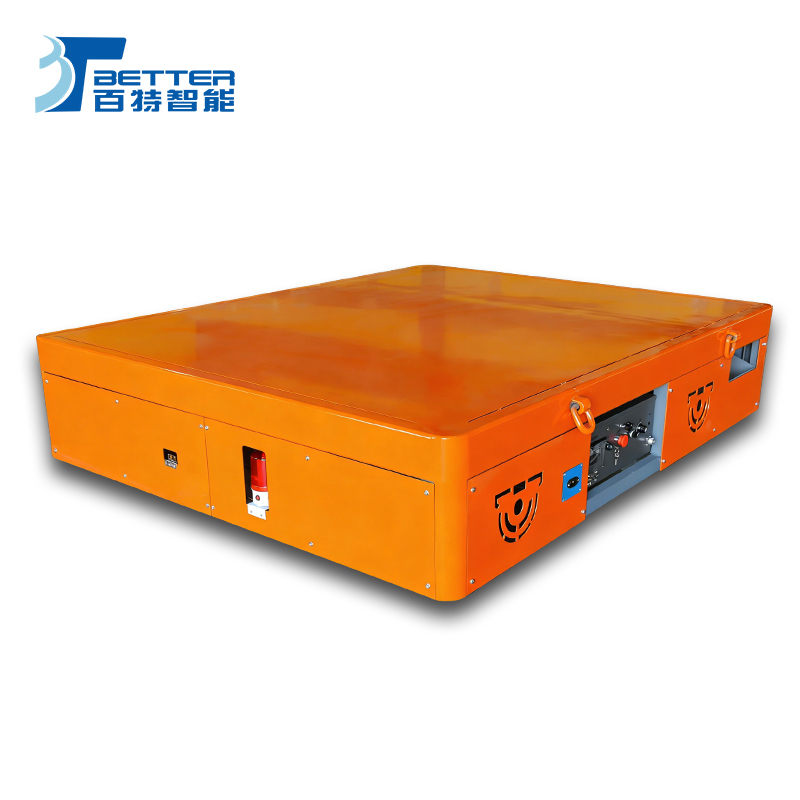

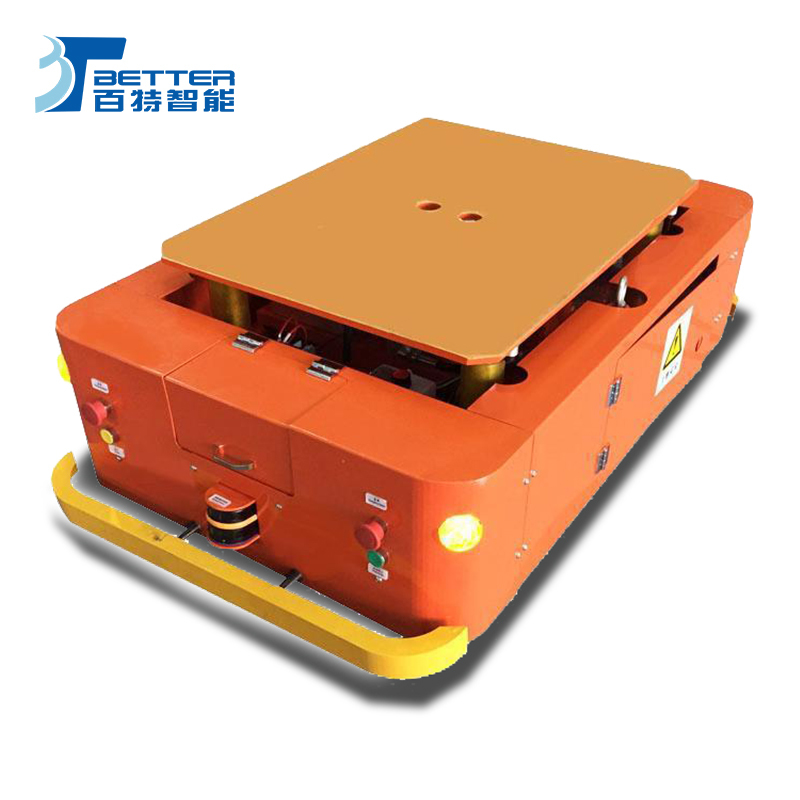

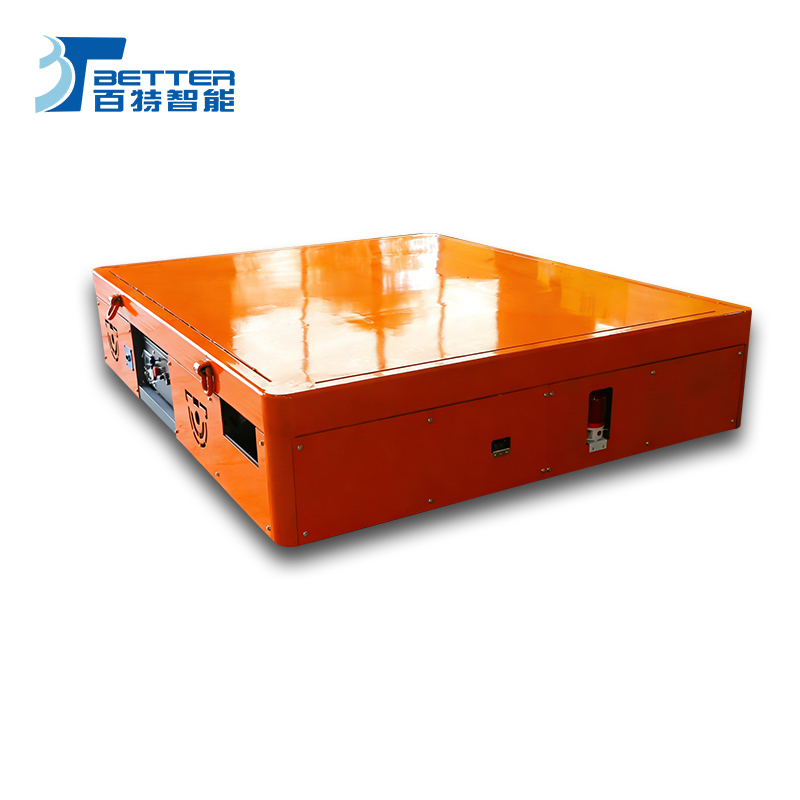

Heat Resistant Industrial Transfer Trolley
Our best-selling heat resistant industrial transfer trolley is engineered for heavy-duty transportation in high-temperature environments, with load capacities ranging from 1 to 300 tons and full OEM customization capabilities.
Core Configuration
- Load Capacity: 1-300 tons standard, with custom higher capacities available
- Temperature Resistance: Customizable heat resistance grades
- Heat Insulation System: Multi-layer composite insulation with heat-reflective coating
- Power Options: Battery, cable drum, safety sliding contact line, or low-voltage track power supply
- Control Methods: Wireless remote, cab operation, or PLC automatic control
- Rail Compatibility: QU70-QU120 heavy-duty rails with customizable track gauge
Core Functions
- High-Temperature Operation: All critical components selected for extreme heat resistance
- Safe Hot Material Transport: Designed for steel ladles, molten iron, hot ingots, and red-hot forgings
- Precise Positioning: ±15mm docking accuracy with variable frequency speed control
- Long-Distance Operation: Continuous round-trip transportation between high-temperature and normal temperature areas
Safety Configuration
- High-temperature warning and protection systems
- Anti-tipping design with rail clamping devices
- Multiple braking systems: electromagnetic, hydraulic, and mechanical parking brake
- Operational safety features: sound/light alarms, anti-collision buffers, emergency stop switches
Customization Features
- Vehicle Customization: V-shaped saddles, concave platforms, flat plates, positioning grooves
- Platform Functions: Hydraulic lifting, rotation, side movement, flipping, automatic weighing
- Cooling Systems: Forced air or water circulation cooling options
- Automation: PLC control systems for equipment linkage and automated operations
- Environmental Adaptation: Explosion-proof and ultra-high temperature versions available
Product Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Industrial Applications
- Steel Metallurgy: Transporting steel ladles, molten iron, hot ingots, and rolled coils
- Non-Ferrous Metals: Moving molten aluminum/copper containers and hot ingots
- Foundry & Forging: Transferring molten metal containers, red-hot forgings, and high-temperature molds
- Glass & Ceramics: Transporting high-temperature products between kilns and warehouses
- Heavy Machinery: Moving large castings and forgings during heat treatment processes
Frequently Asked Questions
What Applications Use Transfer Trolleys?
- Coil handling with V-groove decks
- Tank transportation for uniformly distributed loads
- Assembly line shuttle and partial product transfer
- Maintenance cart for motors and pumps
- Equipment support and material shuttle systems
- Elevating platforms for assembly processes
- Sand casting and foundry applications
Customization Requirements
For custom solutions, please provide:
- Load type and maximum weight requirements
- Product dimensions (length, width, height)
- Operational frequency and trip timing
- Travel area specifications and distance
- Environmental conditions and special requirements
Our Advantages
Low Noise Operation
Minimal noise levels for improved working environment
Maximum Safety
Comprehensive safety features protecting operators and materials
Easy Operation
User-friendly design with immediate operational capability
Process Integration
Easy implementation into existing manufacturing processes
Versatile Capacity
Handles loads from small to extremely large (up to 300 tons)
Packaging & Shipping
- Standard Containers: 20ft container for units under 6m length and 2.2m width
- Large Units: 40ft container for lengths between 5.9m-12m
- Oversized Equipment: Flat rack transport for widths beyond 2.2m
- Bulk Cargo: For equipment exceeding standard container dimensions
