Heavy Duty Omnidirectional Transfer Cart with Automatic Safety Stop Function
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | heavy duty omnidirectional transfer cart,omnidirectional transfer cart with safety stop,automatic safety stop transfer cart |
||
Product Description

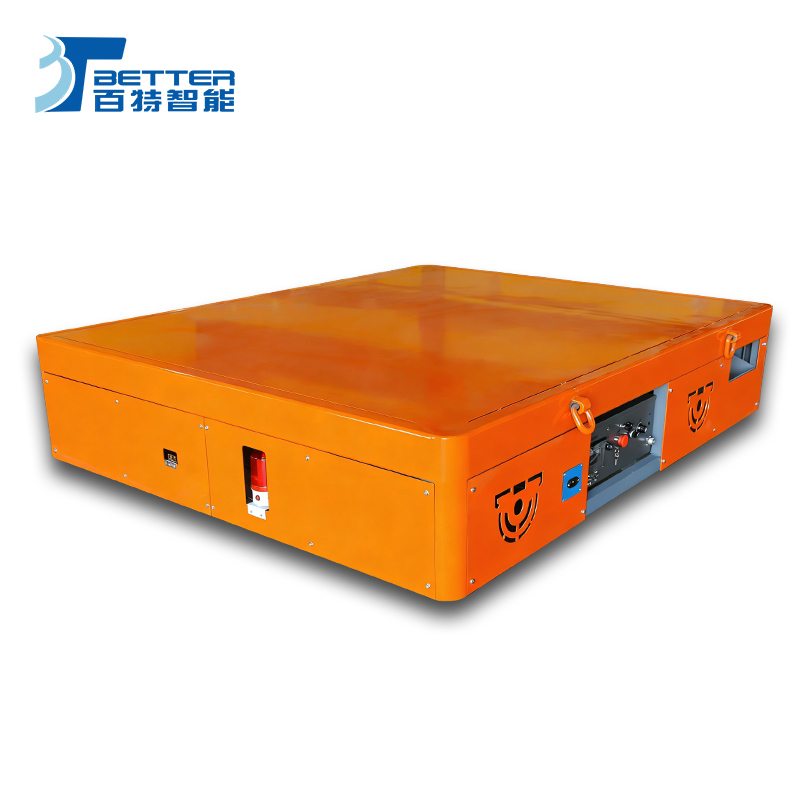

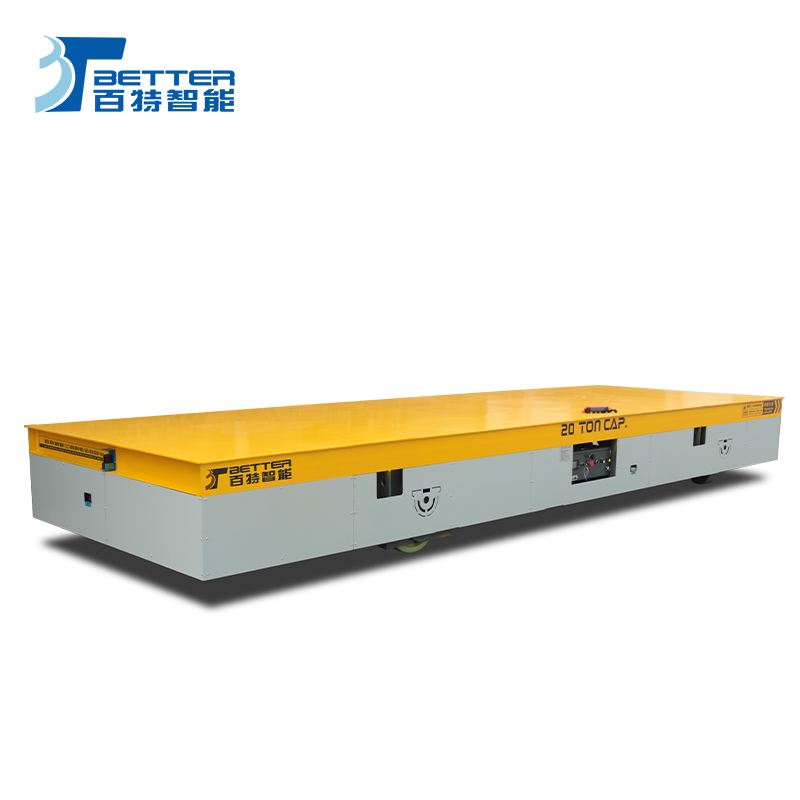

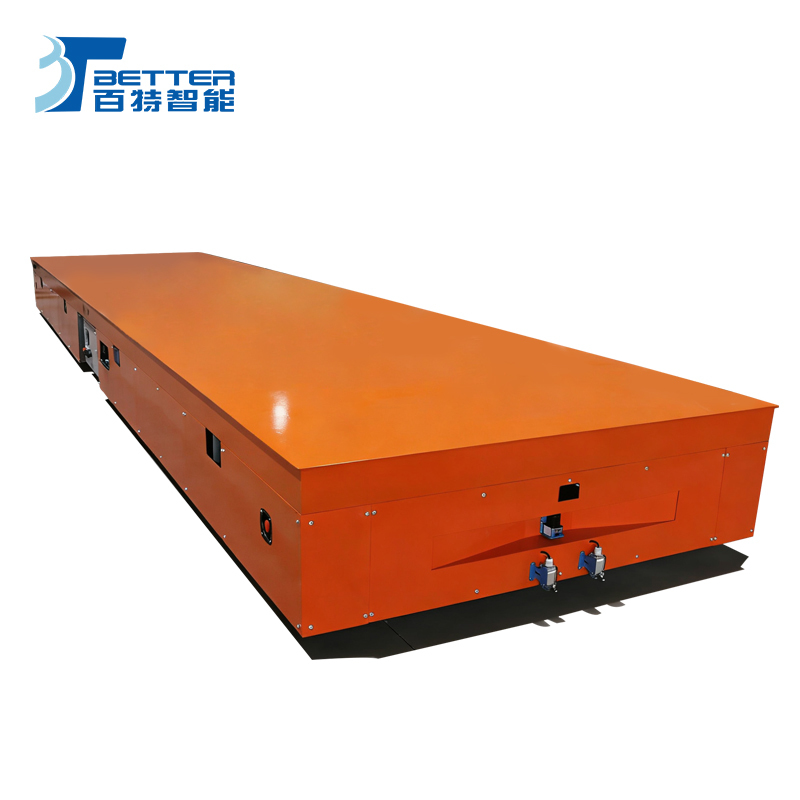

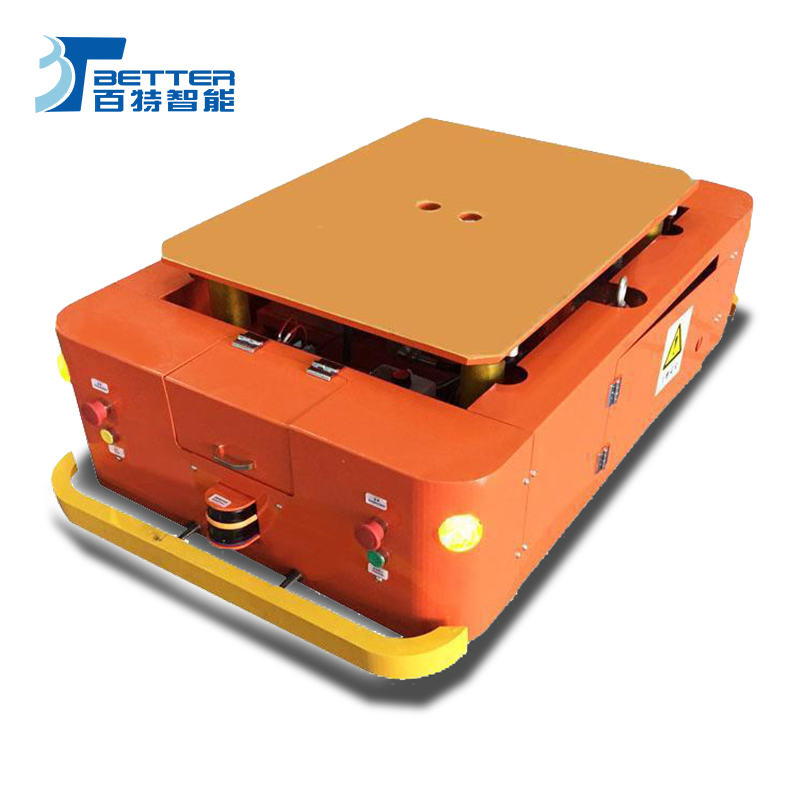

Heavy Duty Omnidirectional Transfer Cart with Automatic Safety Stop Function
This intelligent material handling equipment features high load-bearing capacity and exceptional mobility, specifically engineered for complex industrial environments requiring precise movement and maximum safety.
Core Configuration
- Load Capacity: Standard series from 1 to 300 tons, expandable through modular design
- Walking System: McNamur wheels or omnidirectional wheel assemblies for true omnidirectional movement
- Drive System: Four-wheel or six-wheel independent servo motors for rapid response and precise control
- Navigation Method: Supports laser SLAM natural navigation, magnetic pin navigation, QR code navigation, or manual remote control
- Safety System: Multi-level automatic safety barrier systems including lidar, safety sensors, and ultrasonic sensors
- Power System: High energy density lithium battery pack supporting automatic/manual charging for continuous operation
- Control Method: Wireless remote control (standard) or vehicle-mounted touch screen/tablet (optional)
Core Functions
Unidirectional Free Movement
No turning radius required. Direct side-shift capability for narrow work positions and in-place rotation for turning around, significantly enhancing space utilization and operational efficiency.
High-Precision Positioning
Combined with encoders and navigation systems, positioning accuracy reaches ±5mm.
Stable Operation Under Heavy Loads
Hydraulic suspension system ensures even load distribution among all wheels, effectively absorbing shocks from uneven ground and protecting material safety.
Intelligent Path Planning
In automatic navigation mode, plans optimal paths in real-time based on environment and dynamically avoids obstacles.
Safety Configuration
- 360° Omnidirectional Sensing: Multiple line laser radars (long-distance) + ultrasonic sensors (close-range) + full-vehicle mechanical anti-collision strips
- Multiple Braking Safeguards: Energy recovery braking, electric control braking, hydraulic braking, and mechanical parking brake redundancy design
- Emergency Stop: Multiple emergency stop buttons around vehicle body and remote control emergency stop function
- Sound and Light Warning: Clear sound and light prompts during operation, turning, and reversing
Customization Features
- Platform Customization: Dimensions, shape (flat, concave, swivel neck), and ground height customized according to workpiece, with hydraulic lifting, rotation, and lateral movement functions
- Special Carriers: V-shaped saddle seats (for rolled materials), T-shaped slot platforms (for fixing workpieces), and roller lines (for automatic loading/unloading)
- Automation Upgrade: Connection to central dispatching system for multi-vehicle collaboration, intelligent traffic management, and integration with MES/WMS systems
- Environmental Adaptability: Special versions including explosion-proof, high-temperature resistant, and clean room versions
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application
Designed specifically for scenarios with high requirements for space utilization, handling flexibility, and safety:
- Heavy Equipment Manufacturing: Efficient transportation of large structural components, engines, and gearboxes within final assembly workshops
- Aerospace: Precise transportation and docking of aircraft fuselage sections, wings, and engines
- Steel and Non-Ferrous Metals: High-density stacking and picking operations for steel coils and aluminum coils in finished product warehouses
- Rail Transit: Flexible movement of subway carriages and train wheelsets within maintenance workshops
- Intelligent Warehousing: Heavy pallet picking and replenishment operations among densely-stored shelves
- Shipbuilding: Movement and positioning of hull sections and large modules within shipyards
Customization Inquiry
To customize your transfer cart, please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Our Advantages
- Low Noise: Causes low noise level during operation
- Maximum Safety: Guarantees maximum safety for operators and handled materials
- Easy Operation: Easy to drive and operate immediately upon delivery
- Easy Implementation: Operates on standard floors without complex or permanent installation
- Suitable for All Weights: Modular fabrication handles both small and extremely huge loads up to 300 tons
Packaging & Shipping
For length less than 6m and width less than 2.2m: Transported by 20ft container
For length between 5.9m and 12m: Transported by 40ft container
Multiple sets (2-3) can be transported by full container; single sets by LCL container
For width beyond 2.2m: Transported by flat rack (20 or 40 ft)
Equipment beyond standard dimensions requires bulk cargo shipping
