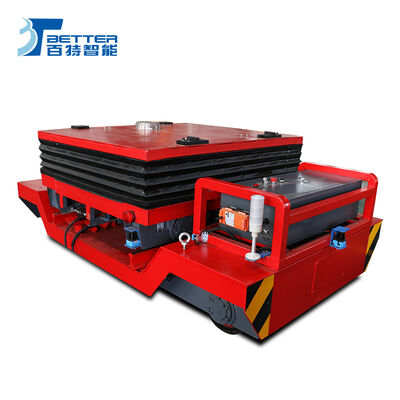

Heavy Duty 300-ton Load Capacity Battery-Powered Transfer Cart with Anti-Explosion and 360-Degree Rotation
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Dimensions | 2000*2000*500 |
| Power Supply | Battery | Rotation | 360 Degree |
Product Description
Heavy Duty Steel Pipes Transport Equipment Material Transfer Trolley
Product Overview
BWP series flatbed truck cart is a trackless material handling trolley designed to operate on cement floors without requiring rail installation. Equipped with at least two casters enabling 360-degree motorized rotation without floor damage, this battery-powered electric transfer trolley offers complete freedom from cable constraints.
The trolley features intuitive forward/backward movement and left/right turning controls via button operation and speed controller. Optional PLC control system is available for full automation integration.
Key Features
- Low Noise Operation: Engineered for minimal noise levels during operation
- Maximum Safety: Comprehensive safety guarantees for operators and handled materials
- Easy Operation: User-friendly driving controls with immediate operational readiness
- Easy Implementation: Operates on standard floors without complex or permanent installation requirements
- Versatile Load Capacity: Suitable for both small and extremely large loads with modular fabrication supporting payloads up to 300 tons per trolley
Product Demonstration
Manufacturing Process
CNC Cutting
Steel plates are transported from raw material warehouse to CNC cutting workshop for precision cutting, followed by chip removal and layout processing.
Preliminary Assembling
Cut steel plates are assembled according to design specifications.
Welding
Automatic welding machines join steel plates after preliminary assembly.
Post Weld Treatment
Welding sections are tested, polished, deburred, and undergo stress elimination treatment.
Spray Primer
Processed structures are transported to painting booth for two-layer zinc-rich epoxy anti-rust primer application.
Assembling
Primer-coated structures are assembled with wheels, motors, gear boxes, and other components.
Paint Finish
Assembled carts undergo final paint application after primer integrity inspection.
Debugging
Complete carts are debugged with electric control systems, tested without load, then with load, and finally transported to storage after inspection.
Product Specifications
| Product Name | Model | Power Supply Mode | Load Capacity | Running Distance | Usage |
|---|---|---|---|---|---|
| Rail Transfer Cart | BDG | Conductor Rail | 1-300t (customized) | ≤70m | Ordinary goods (steel plate, workpiece, equipment) and special goods (coil, column, ladle) |
| Battery Powered Transfer Car | BXC | Battery | Customized | Unlimited | Various industrial applications |
| Cable Powered Transfer Trolley | BJT | Cable Drum | Customized | ≤50m | Industrial material handling |
| Electric Transfer Cart | BTL | Trailing Cable | Customized | ≤20m | Factory floor transport |
| Busbar Powered Handling Cart | BHX | Busbar | Customized | Unlimited | Heavy industrial applications |
| Towed Rail Trailer | BP | Towed by other machine | Customized | Unlimited | Various towing applications |
| Steerable Towed Car | BWT | Manually or towed by forklift | 1-150t | Unlimited | Cement or steel floor operations |
| Trackless Handling Machine | BWP | Battery | Customized | Unlimited | Versatile industrial transport |
