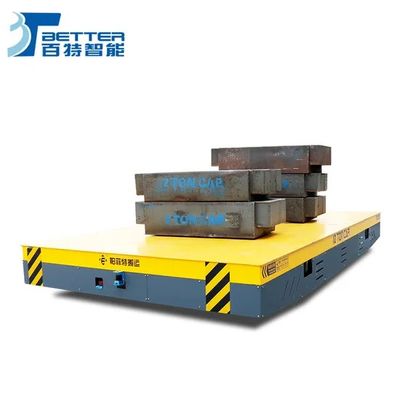

30 Ton Load Capacity Anti-Explosion Customized Electric Battery-Powered Transfer Cart for Heavy Duty Material Transportation
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 30 Ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 4500*2200*600 Mm |
| Wheel Base | 3200 Mm | Wheel Diameter | 400 Mm |
| Running Speed | 0-20 M/min | Battery Voltage | 48 V |
Product Description
30 Ton Warehouse Used Material Transferring Electric Flat Transfer Cart
Product Overview
Battery powered rail transfer cart is powered by battery installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, and other functions. This industrial rail electric transport cart features simple structure, convenient use, large carrying capacity, easy maintenance, long service life, and offers convenience, economy, practicality, and easy cleaning advantages.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load (hours) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Application Examples
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific workplace activities such as shuttling materials. Transfer carts are more accommodating for moving long loads through restrictive passageways or doorways. For heavier loads, transfer carts are an excellent affordable choice for their ability to handle heavy loads. They are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partially completed products
- Sub-Assembly shuttle from one line to another line
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly process (integrated screw-jack table)
- Sand casting (flat decking)
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Product Advantages
- Low noise - Causes low noise level during operation
- Maximum safety - Offers guarantee of maximum safety for operators and materials handled
- Easy for operation - These vehicles are easy to drive and operate
- Easy to implement into manufacturing process - Operates on standard floors without complex installation
- Suitable for All Kinds of Weight - Superb for handling both small and extremely huge loads up to 300 tons
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m, transportation is via 20ft container. For lengths between 5.9m and 12m, 40ft container is used. Multiple sets (2-3) can be transported by full container, while single sets use LCL Container. For widths beyond 2.2m with length less than 12m, flat rack containers (20 or 40 ft) are required. Equipment beyond these dimensions requires bulk cargo transportation.
