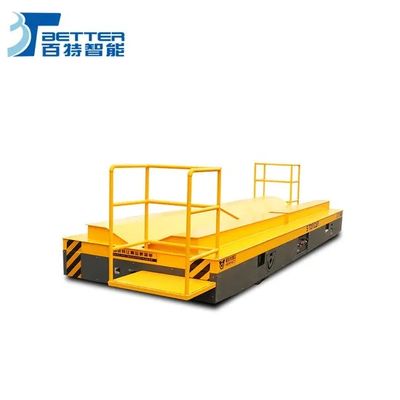

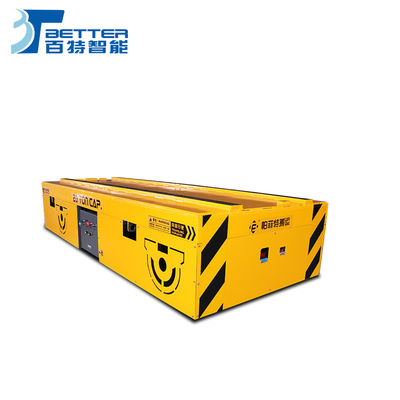

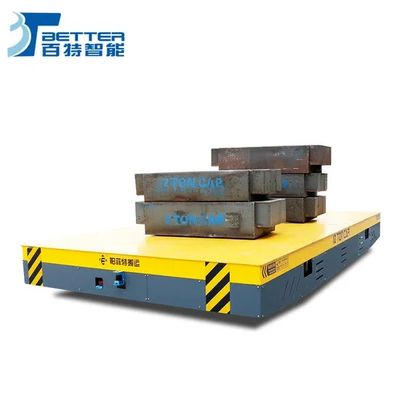

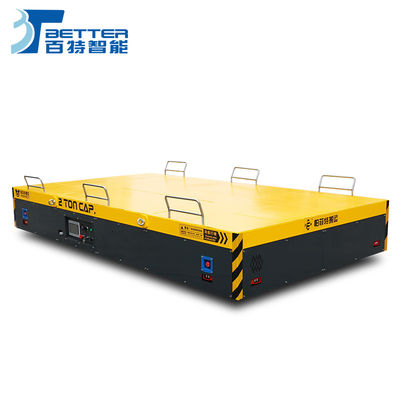

Heavy Load 300 Ton Capacity Battery Powered Transfer Cart with Electrical Control System for Material Handling
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300 Ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Battery Capacity | 150-600 Ah |
| Battery Voltage | 48-72 V | Running Speed | 0-25 M/min |
| Wheel Diameter | 270-600 Mm | Ground Clearance | 50-75 Mm |
Product Description
Heavy Load Battery Powered Transfer Cart
This heavy-duty battery-powered transfer vehicle is specially designed for factories, warehouses, and logistics centers. Powered by large-capacity lithium batteries and equipped with an intelligent electrical control system, it enables smooth start and stop, precise speed control, and safe operation of heavy materials in both rail-free and rail-based conditions. Cable-free operation provides high maneuverability and flexibility, making it ideal for mold transportation, steel structure transfer, and heavy equipment assembly.
Core Configuration
- Load capacity: 5-100 tons (customizable up to 150 tons)
- Power supply: Lithium iron phosphate/lead-acid batteries
- Range: 6-10 hours, supporting fast charging
- Drive system: AC variable frequency / DC motor
- Walking mode: Trackless (polyurethane) / Track-based (cast steel)
- Control system: Integrated intelligent electronic control
- Control method: Wireless remote + Vehicle-mounted line control
Core Functions
- Intelligent electronic control for smooth operation
- Variable frequency soft start technology
- Stepless speed regulation function
- Heavy-duty high-torque drive system
- Strong climbing ability (up to 5° slopes)
- Multi-wheel group balanced load design
- Wireless flexible transportation
Safety Features
- Emergency stop button (vehicle body and remote control)
- Sound and light alarm system
- Mechanical anti-collision buffer strips
- Three alarm modes: operation, reverse, fault
Customization Options
- Surface forms: Flat plate, V-shaped saddle, Concave platform, T-slot platform
- Function expansion: Hydraulic lifting, Platform rotation
- Walking mode: Four-wheel independent steering
- Environmental types: Explosion-proof, High-temperature resistant, Cleanroom
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L×W×H (mm) | 2000×1500×450 | 3500×2000×500 | 3600×2000×500 | 4000×2000×550 | 4000×2200×550 | 4500×2200×600 | 4500×2200×600 | 5000×2500×650 | 5500×2500×650 | 5600×2500×700 | 6000×2600×800 | 6500×2800×900 | 10000×3000×1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Running Distance (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4.0 | 3.6 | 4.3 | 3.8 | 3.2 |
- Mold Workshop: Transportation of large-scale stamping/injection molding/die-casting molds
- Heavy Machinery: Engines, gearboxes, generator stators and rotors
- Steel Structure: H-beams and prefabricated components
- Warehousing & Logistics: Heavy palletized goods handling
- Aerospace: Precise repositioning of large components
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific workplace activities. Transfer carts are excellent for moving long loads through restrictive passageways and handling heavy loads affordably. Their compact design works well in areas with limited floor space, and custom deck configurations suit specific load requirements.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks and uniformly distributed loads
- Assemblies and partially completed products
- Sub-assembly shuttle between production lines
- Maintenance carts for motors and pumps
- Material shuttle for steel tubing
- Elevating platforms for assembly processes
- Sand casting operations
How Can Transfer Carts Be Customized?
Please provide: Load type and weight, dimensions, trip frequency, travel area conditions, distance, and any other relevant operational information.
Our Advantages
- Low noise: Minimal noise level operation
- Maximum safety: Comprehensive safety features for operators and materials
- Easy operation: User-friendly driving with full support
- Easy implementation: Operates on standard floors without complex installation
- Suitable for all weights: Modular fabrication handles small to extremely large loads (up to 300 tons)
Standard container shipping available: 20ft container for units under 6m length and 2.2m width, 40ft container for longer units. LCL container options for single units. Flat rack transport for wider equipment. Bulk cargo arrangements for oversized dimensions.
