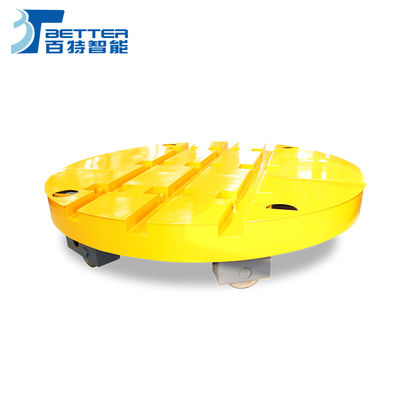

3-Ton Load Capacity 360 Degree Rotation Steel Electric Turntable for Track and Rail Applications
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Explosion, Heat-Resistant, Lifting, Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*1500*450 |
| Wheel Diameter | 270mm | Battery Voltage | 48V |
| Highlight | 3-Ton Load Capacity Electric Turntable,360 Degree Rotation Track Turntable,Steel Construction Rail Turntable |
||
Product Description
3-Ton Car Turntable, Used for U-Shaped Turns of Cars, Track Turntable
Product Overview

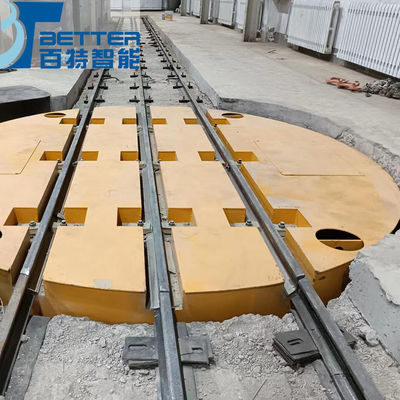

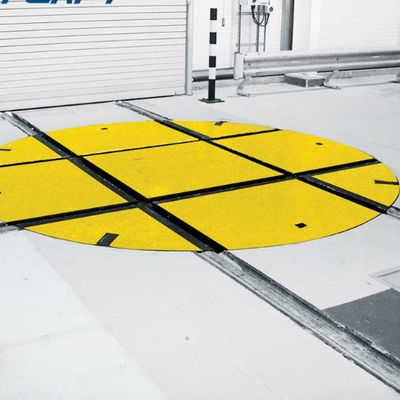

360 Degree Rotation Electric Motorized Turntable Transfer Cart designed for cross rails to turn with 90 degrees in warehouses and plants. The rail turntable features rails installed on the turntable surface, allowing transfer carts to run onto the turntable and rotate automatically or manually to precisely connect with destination rails.
Working Principle & Applications
When the rail transfer cart runs on the turntable, the turntable rotates to align with the destination rail, enabling the transfer cart to continue on perpendicular tracks. Suitable for ring rails, vertical rails, crossing rails, and various industrial applications including metallurgy, manufacturing, oil and gas, shipyards, automotive, mining, aerospace, and power generation.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size H (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time Full Load (hr) | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Customization Options
- Can load up to 300t capacity
- Easy maintenance and service access
- Easy turn bearing for smooth rotation
- Flat surface with non-slip coating
- Smooth rotation without noise and vibration
- Lifting holes for easy installation and transport
- Running steadily with high rail jointing accuracy
- Full automatic electrical control available
- Customizable with special functions: lifting table, high temperature resistance, anti-explosion, etc.
To help us provide the optimal solution for your needs, please provide the following information:
- Required load capacity?
- Table size requirements? (Length; Width; Height)
- What cargo will you transfer with the cart?
- What is the travel area coverage? (Indoor/Outdoor, straight line travel, etc)
- Required running distance?
- What type(s) of power supply are required?
- Do you need any special functions?
