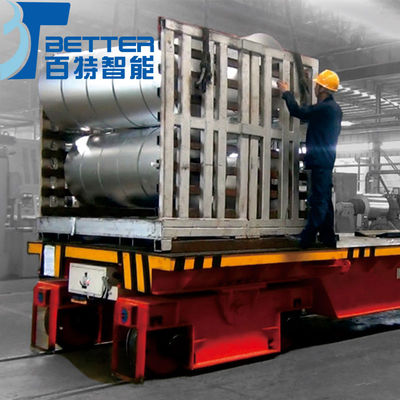

50 Ton Motorized Heavy Duty Rail Transfer Cart Track Bogie Carrier for Industrial Material Transport
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500mm |
| Running Speed | 0-25m/min | Motor Power | 0.8-15kw |
| Wheel Diameter | 270-600mm | Rail Gauge | 1200-2000mm |
| Highlight | 50 Ton Rail Transfer Cart,Motorized Track Bogie Carrier,Heavy Duty Rail Transfer Cart |
||
Product Description
50-Ton Motorized Rail Transfer Table / Track Bogie Carrier
The 50-ton Motorized Rail Transfer Table, also known as a Track Bogie Carrier, is a heavy-duty industrial platform vehicle engineered for reliable material transport on fixed rail systems. It features a robust steel structure and a powerful electric drive system mounted on a durable bogie (wheel assembly) to ensure stable movement of substantial loads.
This equipment is commonly used to shuttle heavy items such as machinery, steel plates, or large workpieces between different workstations, assembly lines, and storage areas within a factory. By providing a dedicated and efficient transfer solution, it streamlines internal logistics, enhances workflow continuity, and reduces manual handling, thereby boosting overall productivity.

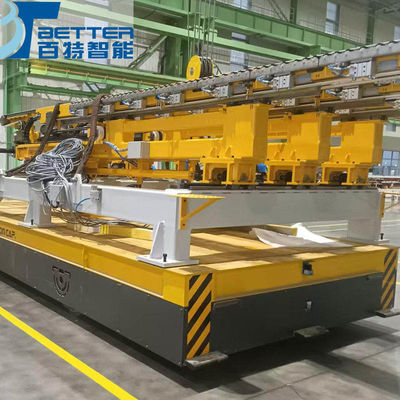

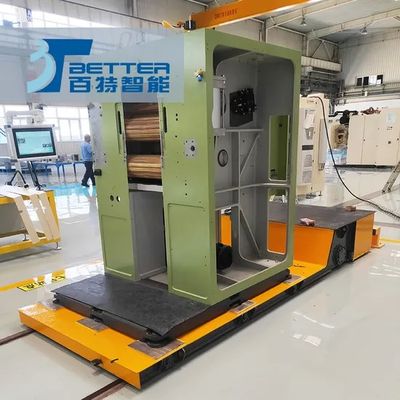

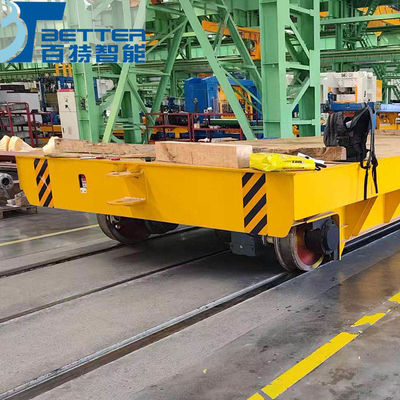

Detailed Photos
Product Parameters
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size — Length L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size — Width W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size — Height H (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0–25 | 0–25 | 0–25 | 0–20 | 0–20 | 0–20 | 0–20 | 0–20 | 0–20 | 0–20 | 0–20 | 0–20 | 0–18 |
| Motor Power (kW) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
How can transfer carts be customized?
Please provide the following information so we can tailor the equipment to your needs:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length, Width, Height)
- What is the trip time and frequency? (Number of trips per shift, shifts per day)
- What is the travel area you need to cover? (Rail or cement floor, indoor or outdoor, straight-line travel, etc.)
- What is the distance to travel?
- Any other relevant information or operating conditions.
Our Advantages
Low Noise
The equipment operates with a low noise level, contributing to a quieter working environment.
Maximum Safety
Offers a guarantee of maximum safety for operators and for the material handled. We truly care about the safety of everyone involved in the job.
Easy Operation
These vehicles are easy to drive, so as soon as you receive it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy Integration into Manufacturing Processes
Operates on standard floors and does not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery-powered trolley is superb for handling both small and extremely huge loads, thanks to its modular fabrication and high payload capacity — up to 300 tons per trolley.
Packaging & Shipping
- For lengths less than 6 m and widths less than 2.2 m, the equipment is transported in a 20 ft container.
- For lengths between 5.9 m and 12 m, it is transported in a 40 ft container.
- For quantities of 2 or 3 sets, they can be transported by full container.
- For a single set, it can be transported by LCL (Less than Container Load) container.
- If the length is less than 12 m but the width exceeds 2.2 m, it needs to be transported by flat rack (20 or 40 ft).
- If the equipment exceeds the above dimensions, or for larger quantities, bulk cargo shipping must be considered.
