20 Ton Cable Drum Powered Transfer Cart Electric Transfer Cart with Platform Track Carrier
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 20 Ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 4000*2200*600 Mm |
| Running Speed | 0-20 M/min | Motor Power | 2.5 KW |
| Wheel Base | 2800 Mm | Rail Gauge | 1435 Mm |
| Highlight | 20 Ton Cable Drum Powered Transfer Cart,Cable Drum Powered Electric Transfer Cart,Platform Track Carrier Electric Transfer Cart |
||
Product Description
Product Overview
The 20-ton Cable Drum Powered Transfer Cart with Platform Track Carrier is a heavy-duty industrial electric vehicle designed for long-distance, high-capacity material transport on fixed tracks. Its key feature is a self-winding cable drum that supplies continuous power, eliminating the need for batteries or overhead lines. This makes it ideal for extensive workshop layouts or outdoor yards where reliable, sustained operation is required. The robust platform carrier can handle massive loads like steel plates, machinery, or bulk goods, providing a stable and efficient link between different production zones, storage areas, and loading docks.

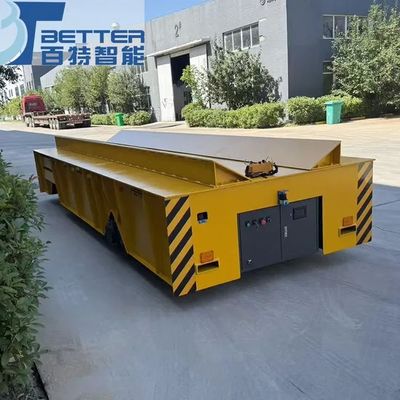

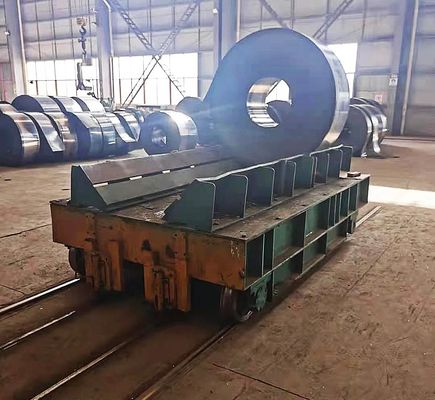

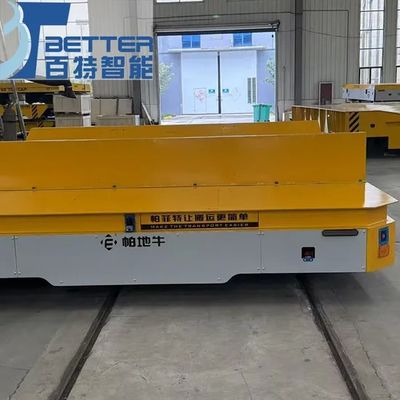

Detailed Photos
Product Parameters
| Model | BJT-2t | BJT-5t | BJT-10t | BJT-16t | BJT-20t | BJT-25t | BTJ-30t | BJT-40t | BJT-50t | BJT-63t | BJT-80t | BJT-100t | BJT-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size — Length L (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size — Width W (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size — Height H (mm) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 50 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance (m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (kN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
What product handling applications use transfer carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
- Sub-assembly shuttle from one line to another line
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads to locations within a plant facility
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly process (integrated screw-jack table)
- Sand casting (flat decking)
How can transfer carts be customized?
Please tell us the following details so we can tailor the cart to your specific requirements:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length, Width, Height)
- What is the trip time and frequency? (Number of trips per shift, shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, indoor/outdoor, straight-line travel, etc.)
- What is the distance to travel?
- Any other relevant information or using conditions.
Low Noise — The transfer cart causes a low noise level during operation, ensuring a quieter working environment.
Maximum Safety — Offers a guarantee of maximum safety for operators and for the material handled. We truly care about the safety of everyone involved in the job.
Easy Operation — These vehicles are easy to drive, so as soon as you receive it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to Implement into Manufacturing Process — Operates on standard floors; does not require complex or permanent installation.
Suitable for All Kinds of Weight — The steering battery powered trolley is superb for handling both small and extremely huge loads, thanks to its modular fabrication and high payload capacity of up to 300 tons per trolley.
- For lengths less than 6 m and widths less than 2.2 m, the cart will be transported by 20 ft container.
- If the length is longer than 5.9 m and less than 12 m, it will be transported by 40 ft container.
- If the quantity is 2 sets or 3 sets, they can be transported by full container.
- If the quantity is 1 set, it can be transported by LCL container.
- If the length is less than 12 m but the width exceeds 2.2 m, it needs to be transported by flat rack (20 or 40 ft).
- If the equipment exceeds the above dimensions, and quantity needs to be considered, bulk cargo shipping will be arranged.
