200ton Load Capacity Battery-Powered Trackless Transfer Cart with Anti-Explosion Feature
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BXC |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | Within 15 working days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 200ton Load Capacity Trackless Transfer Cart,Battery-Powered Trackless Transfer Cart,Anti-Explosion Trackless Transfer Cart |
||
You can tick the products you need and communicate with us in the message board.
Product Description
200ton Trackless Electric Transfer Flat Carts
Product Description
Chinese factories supply 200-ton trackless electric transfer flat carts as ultra-heavy-duty, flexible logistics solutions for demanding industrial applications. These self-propelled vehicles feature a flat, open deck for loading massive items like industrial modules, heavy machinery, or large steel structures.
Their key advantage is the combination of immense load capacity with trackless operation, enabled by robust electric drives and durable tires. This allows direct point-to-point transportation of extreme weights across large open areas like shipyards and fabrication yards, eliminating the need for fixed rail systems.
Product Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Common Applications

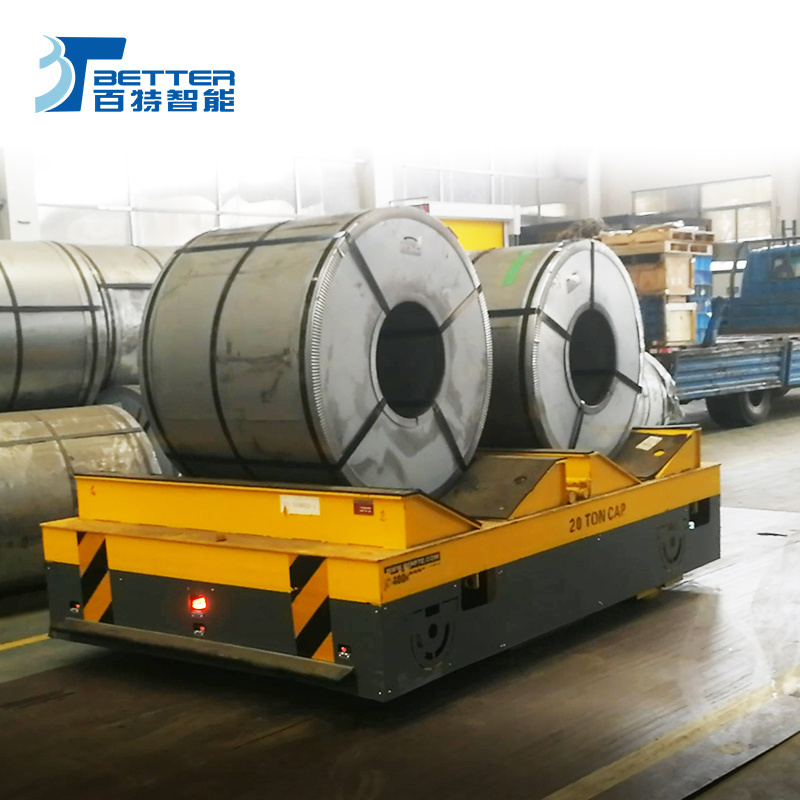

- Coil transportation (V-Groove deck)
- Tank movement (size/stability for uniformly distributed loads)

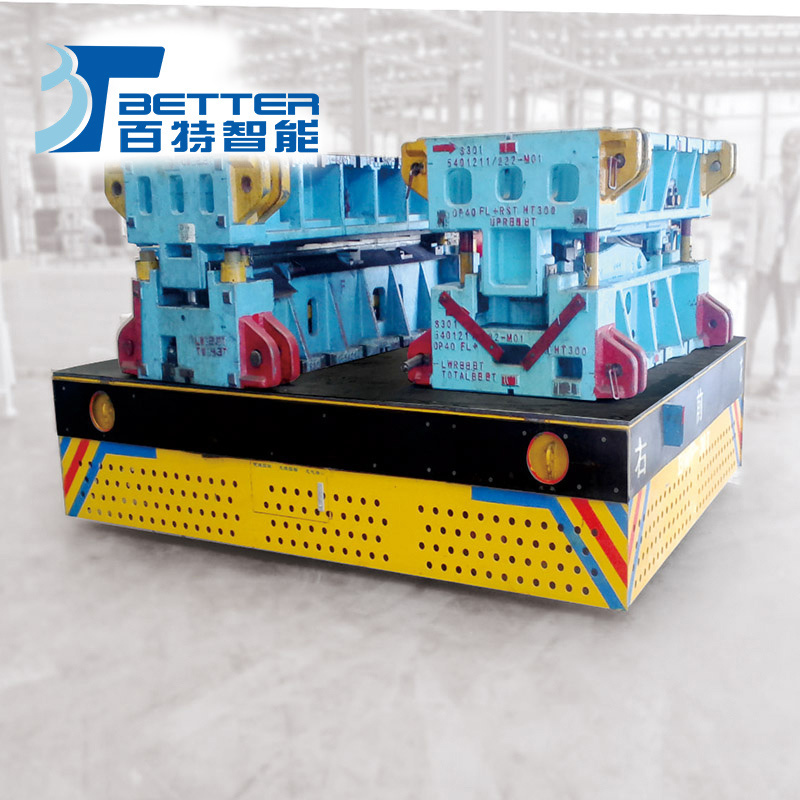

- Assembly line transfers (fixture cradle for complete or partial builds)
- Sub-assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for plant facility navigation
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly processes
- Sand casting transportation (flat decking)
Customization Options
We can customize transfer carts based on your specific requirements. Please provide:
- Type of load/product to be transferred
- Weight of the heaviest load
- Dimensions (Length * Width * Height)
- Operational frequency and trip time
- Travel area specifications (surface type, indoor/outdoor)
- Distance to travel
- Any other relevant operational conditions
Key Advantages
- Low noise operation - Minimal noise level during operation
- Maximum safety - Designed for operator and material safety
- Easy operation - Simple to drive with minimal training
- Easy implementation - Operates on standard floors without complex installation
- Versatile capacity - Handles both small and extremely large loads (up to 300 tons)
