Hot Steel Ladle Automatic Handling Equipment for Billet Factory
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 500/Years | ||
| Highlight | 1-1500 Tons Load Capacity Trackless Transfer Cart,Hot Steel Ladle Handling Trackless Transfer Cart,Automatic Control Trackless Transfer Cart |
||
Product Description

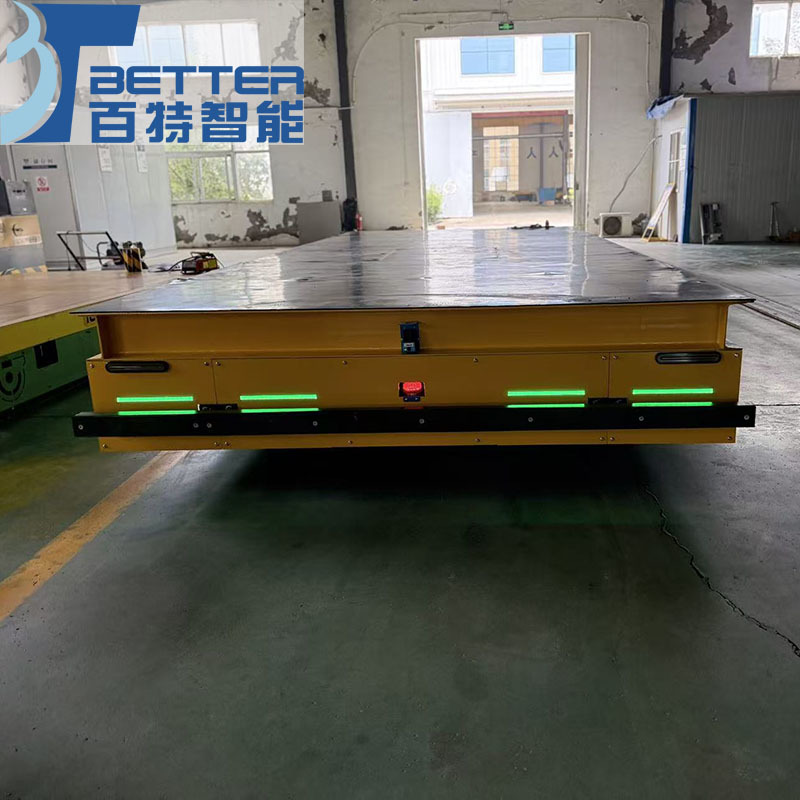

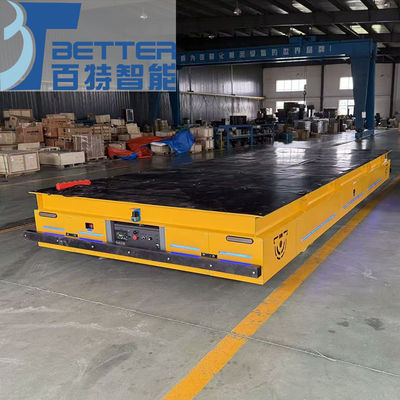

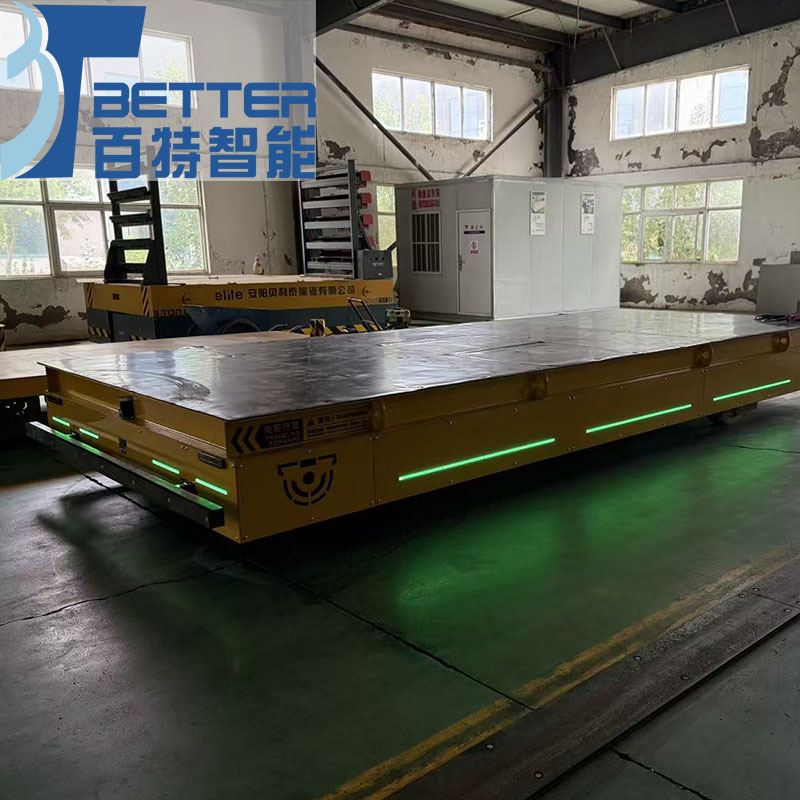

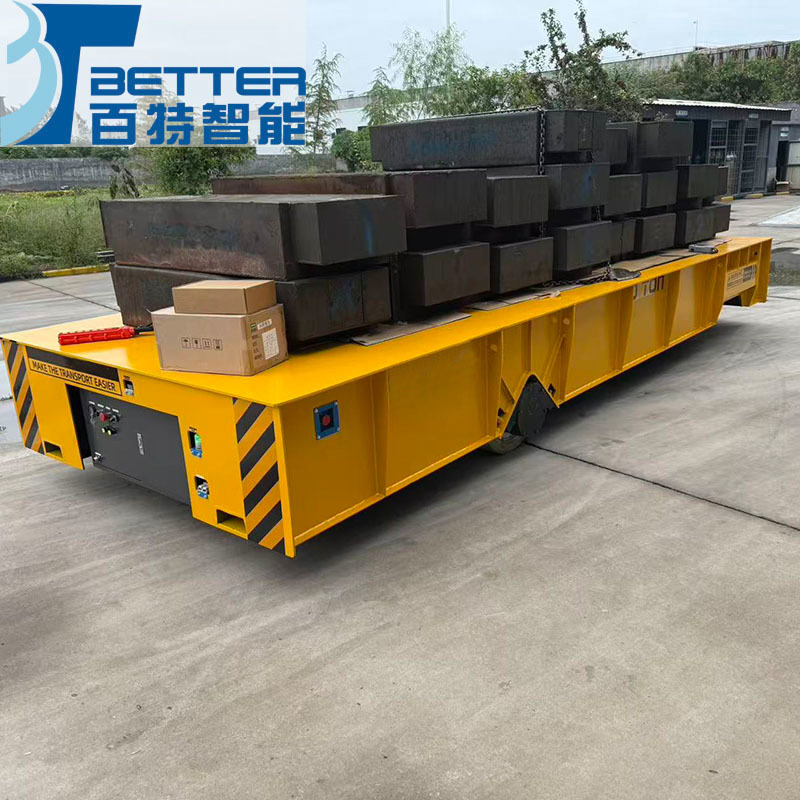

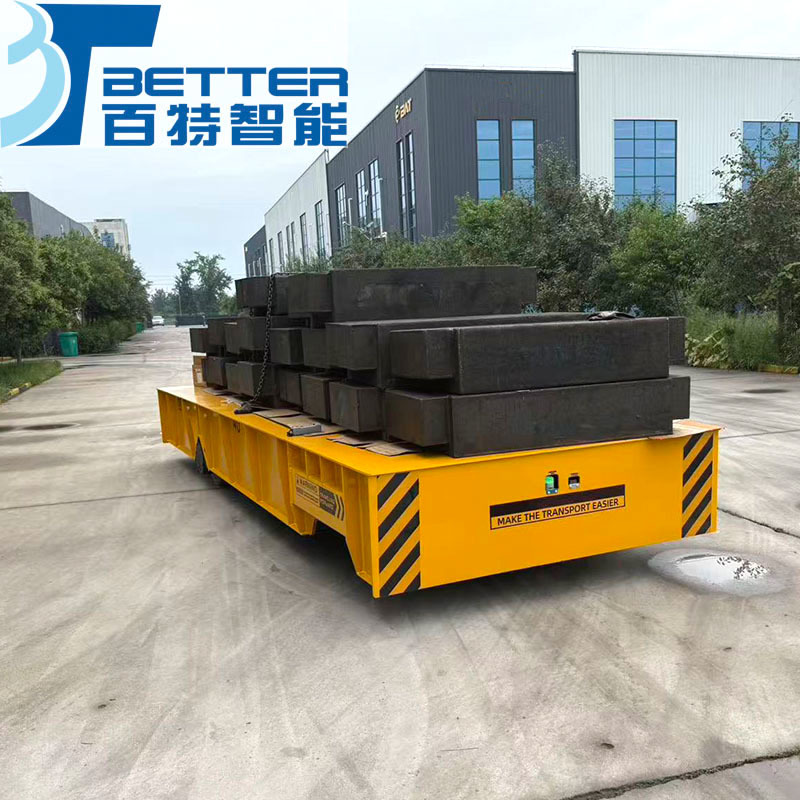

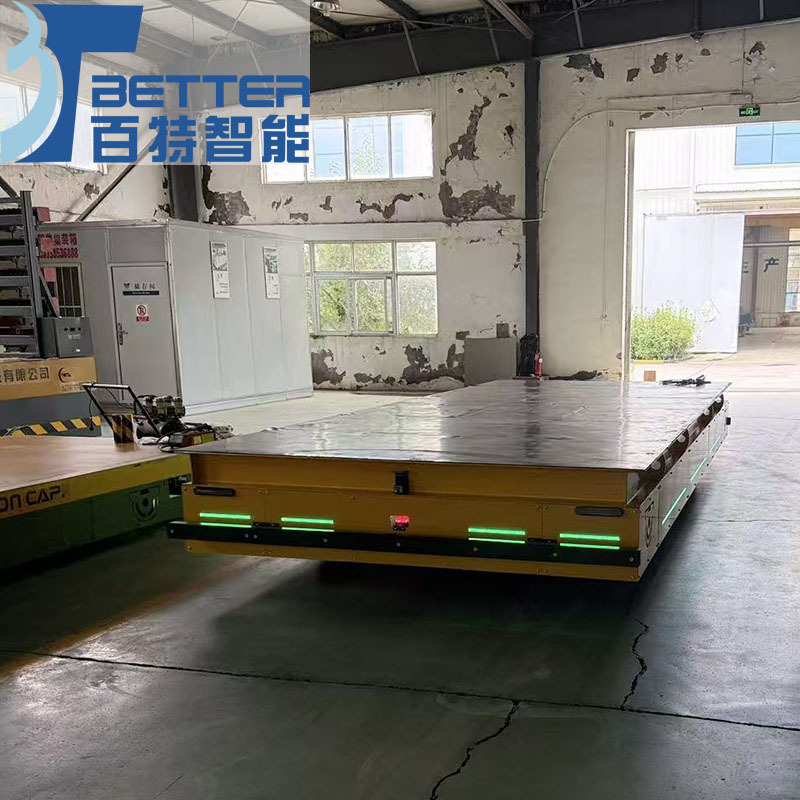

Hot Steel Ladle Automatic Handling Equipment for Billet Factory
Out automatic handling equipment is mainly used for large load transport with high efficiency and safety in factories. According to your specific transportation demands, we could like to recommend different kind of industrial material handling equipment of transfer cart, like the coil transfer cart to transport metal coils and pipes, the rail guided transfer cart working on the track, the electric trackless transfer trolley having no limitation with working route, the steel ladle transport trolley transporting hot steel ladle with high temperature proof function, the battery electric flat cart powered by battery.
This product named PLC controlled transfer cart rail drive steel platform of PERFECT allow movement charges at ground level in all types of industries and applications.Such as assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Radar- control | 3-0.3 m, Automatic stop for obstacles | ||||
| Other functions | Turning light, night light and power display | ||||
The advantages of this product
These are the advantages included in using heavy duty transporters:
Low noise.
It causes low noise level.
Maximum safety.
Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation.
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
These are the advantages included in using heavy duty transporters:
Low noise.
It causes low noise level.
Maximum safety.
Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation.
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Electric Handling Wagon to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Electric Handling Wagon to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
*For length is less than 6m, the width is less than 2.2m. Electric Handling Wagon will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Handling Wagon needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
