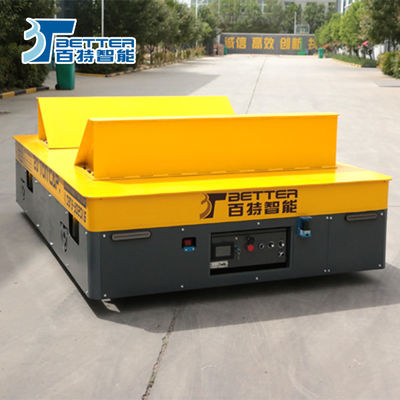

Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Heavy Load Transport Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Application | Steel Industry, Factory, Warehouse, Port | Material | Steel |
| Load Capacity | 1-1500 Tons | Control Mode | Pendant/Remote/PLC Control |
| Control Way | Hand Pendant/Remote Controller | Customized Function | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Transport Package | Other | Trademark | BETTER |
| Origin | China | HS Code | 84289090 |
| Production Capacity | 5000/Years | ||
| Highlight | industrial trackless transfer cart,industrial trackless transfer trolley,heavy duty trackless transfer cart |
||
Product Description
Flexible Trackless Transfer Cart for Material Transfer in Heavy Duty Industrial Applications
1. Product description---Material Transfer Trolley
The Flexible Trackless Transfer Cart is engineered for demanding material transfer tasks in heavy-duty industrial applications. Its rail-free design provides exceptional adaptability to navigate complex factory layouts, congested production areas, and evolving workflow configurations without infrastructure modifications. Built with a reinforced chassis and high-torque drive system, it ensures stable transportation of heavy loads under rigorous operating conditions. Customizable decks and intelligent control systems enable seamless handling of diverse materials—from raw components to finished products. By combining rugged reliability with operational versatility, this cart significantly enhances logistics efficiency, reduces manual intervention, and supports continuous productivity in sectors like metalworking, automotive assembly, and bulk material processing.
2. Product Purpose---Material Transfer Trolley
3. Customized Product---Material Transfer Trolley
We design & manufacture of high quality motorized material transfer trolleys according to per client' requirements. It's optional in various size and shape. We used preeminent quality of steel, iron for all the transfer trolleys manufacturing.
4.Technical Parameter---Material Transfer Trolley
4.Technical Parameter---Material Transfer Trolley
| Technical Parameters for Electric Transfer Carts | ||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| 3 | structure of frame | steel plates welded,beam structure | ||||||
| 4 | thickness of the steel plate(mm) | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| 5 | cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| 6 | max. wheel load(t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| 7 | ground requirement | cement floor | steel plate ground | |||||
| 8 | table size(mm) | 3000x2000 | 3600x2000 | 4000x2200 | 4500x2200 | 5000x2200 | 5500x2300 | 6000x2300 |
| 9 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| 10 | ground clearance(mm) | 50 | ||||||
| 11 | (mm)wheels base | 1500 | 1700 | 1800 | ||||
| 12 | (mm)axles distance | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| 13 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| 14 | turning type | turning while driving with no stop | ||||||
| 15 | control method for turning | control button | ||||||
| 16 | turning structure | mechanical | ||||||
| 17 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| 18 | (mm)wheel diameter | Ф300(4) | Ф350(4) | Ф400(4) | Ф400(6) | Ф500(6) | ||
| 19 | wheel material | ZG55+hydropur ture | ||||||
| 20 | running speed(m/min) | 0-15 | 0-12 | |||||
| 21 | brake principle | electric magnetic brake | ||||||
| 22 | ground balance | mechanical automatic adjustment | ||||||
| 23 | operation method | with wire or no wire | ||||||
| 24 | battery model | D-250 24 | D-330 24 | D-400 24 | D-440 24 | D-250 36 | D-330 36 | D-440 36 |
| 25 | battery maintainance | free of maintainance | ||||||
| 26 | charger's installation | installed on cart | split-type | |||||
| 27 | charger function | automatic charging | ||||||
| 28 | cart color | yellow and warning sign | ||||||
| 29 | radar control | 3-0.3m,automatic stop for obstacles | ||||||
| 30 | warning equipment | sound and light | ||||||
| 31 | other functions | turning light,night light and power display | ||||||
5. Other Products
Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
6. Custormer Visit
7. Packing and Shipping
For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
6. Custormer Visit
7. Packing and Shipping
For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
