Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations

  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
  • Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations
Place of Origin Xinxiang
Brand Name BETTER
Model Number BXC
Minimum Order Quantity 1 Piece
Price US$3000-3500
Packaging Details Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time 15-30 days
Payment Terms L/C,T/T
Supply Ability 50 Sets/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Battery-Power Transfer Cart Usage Heavy Duty Material Transportation
Load Capacity 1-300ton Special Function Anti-Explosion,Heat-Resistant,Lifting,Customized
Material Steel Transport Package The Whole Cart Will Be Packed By Tarp.
Specification 2000*2000*500 Trademark BETTER
Origin Xinxiang HS Code 84289090
Production Capacity 50 Sets/Month
Highlight

steel trackless transfer cart

,

lifting trackless transfer cart

,

steel trackless transfer trolley
Leave a Message
Product Description

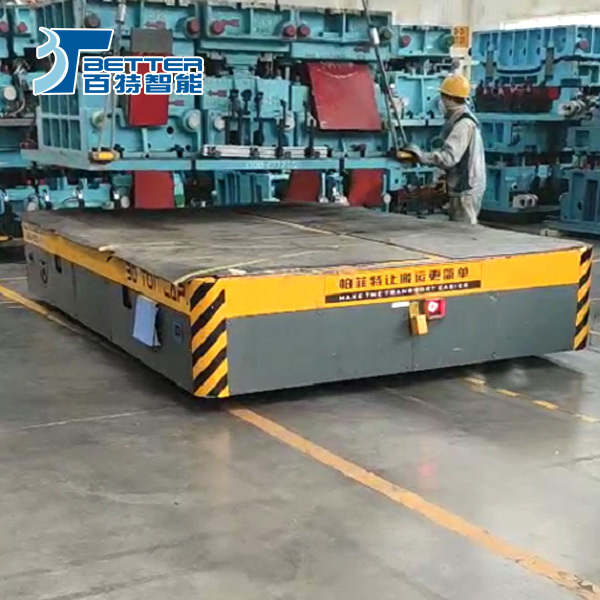

Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations

Description---Transfer Cart
The Heavy-Duty Trackless Transfer Cart is engineered to streamline die handling between storage and press operations in manufacturing facilities. Built with a reinforced chassis and high-precision positioning, it ensures the safe and stable transport of heavy, high-value dies—even in congested or uneven factory environments. Its trackless design allows flexible routing around machinery and through narrow aisles, eliminating the need for fixed infrastructure while adapting to dynamic production layouts. Equipped with customizable clamping interfaces and intelligent control systems, the cart enables seamless loading, transfer, and alignment of dies with presses. By reducing manual labor, minimizing die-change downtime, and preventing damage to critical tooling, this solution significantly enhances operational efficiency and safety in stamping and forging processes.
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 0

Product Parameters
Model BXC-2t BXC-5t BXC-10t BXC-16t BXC-20t BXC-25t BXC-30t BXC-40t BXC-50t BXC-63t BXC-80t BXC-100t BXC-150t
Rated Load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 270 270 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Total Power(kw) 2 3 2.2 2.2 2.2 3 3.5 4 5 6.3 8 10 15
Battery Capacity(Ah) 150 180 180 200 220 220 260 300 330 400 400 440 600
Battery Voltage(V) 48 48 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Running Distance for One Charge(km) 6.5 8.1 7.2 5.1 4.8 4.8 4.2 4.3 4 3.6 4.3 3.8 3.2
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


Application---Transfer Cart

Realize the safe and efficient flow of heavy-duty molds between the warehouse and the press
With its heavy-duty load capacity and trackless design, it can flexibly and reliably transfer large molds between the mold storage area and stamping production lines of different tonnages, significantly improving the efficiency of mold scheduling.

Ensure the integrity of high-value precision molds during transportation
Through a smooth hydraulic or electric drive system, it ensures that molds weighing tens to hundreds of tons are free from shock and vibration during transportation, effectively protecting the precise surfaces and internal structures of the molds.

Precisely connect with the press worktable and optimize the mold changing process
Equipped with precise positioning devices, it can achieve rapid and accurate height and horizontal alignment with various large presses, safely delivering heavy molds into the working area and significantly reducing the downtime for mold changing.

Strengthen the standardization and space utilization of mold storage management
As a flexible logistics unit, it can efficiently carry out the warehousing, outbound and in-warehouse organization of molds, and in combination with standardized mold racks, improve the space utilization rate and management order of the mold warehouse.

Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 1

Customized---Transfer Cart
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Running on Floor or Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 2

Custormer visit---Transfer Cart
We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 3
Packing and shipping---Transfer Cart
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 4 Our Company
Our factory is located in Xinxiang City, Henan province. Our company has 15 years of industry experience, passed ISO9001 Quality management system and got the CE, SASO, SGS certificate.
we can produce all kinds of transfer cart from 1-1300 tons, our main products including BDG series Transfer cart , BJT cable drum series Transfer cart , BHX safety sliding line series Transfer cart , BXC battery series Transfer cart , BTL towed cable series Transfer cart , BP non-power series Transfer cart , BQY train towed series Transfer cart , BWP trackless series Transfer cart and special Transfer cart , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Heavy-Duty Trackless Transfer Cart for Die Storage and Press Operations 5
