Steel Trackless Transfer Cart For Heavy Duty Material Transportation
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BETTER |
| Model Number | BXC |
| Minimum Order Quantity | 1 Piece |
| Price | US$3000-3500 |
| Packaging Details | Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit. |
| Delivery Time | 15-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 50 Sets/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | Steel Trackless Transfer Cart,300t Trackless Transfer Cart,Anti Explosion motorized transfer cart |
||
Product Description

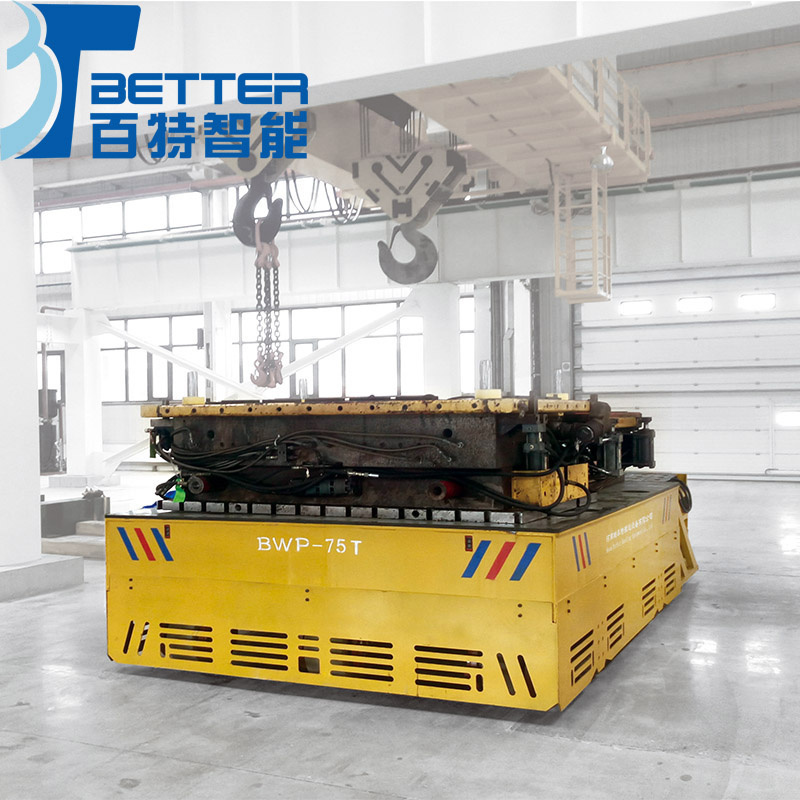

Stable and Trackless Transfer Cart for Heavy Duty Material Transportation in Industrial Factories with Crane
This stable, trackless transfer cart is engineered to seamlessly integrate with overhead crane systems, providing a flexible and efficient solution for heavy-duty material transportation in industrial factories. Designed with a low-profile, robust chassis and advanced balance control, it ensures secure movement of high-weight loads—such as machinery, raw materials, or assembled structures—even when transferring goods to or from crane pickup points. The trackless design allows the cart to navigate freely across dynamic factory layouts, avoiding fixed infrastructure limitations and adapting to workflow changes. Equipped with precision positioning, anti-sway technology, and safety interlocks for crane coordination, it enhances operational safety, reduces handling time, and optimizes material flow in workshops, warehouses, and production halls.
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
| Application |
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
