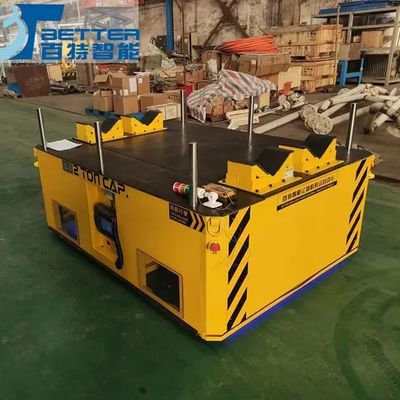

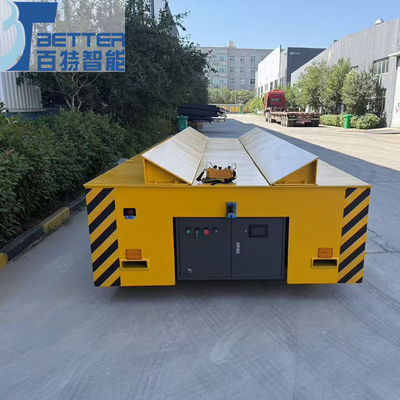

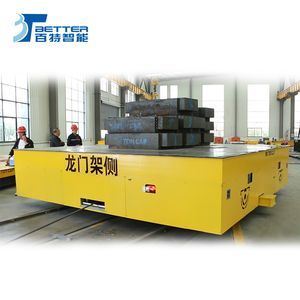

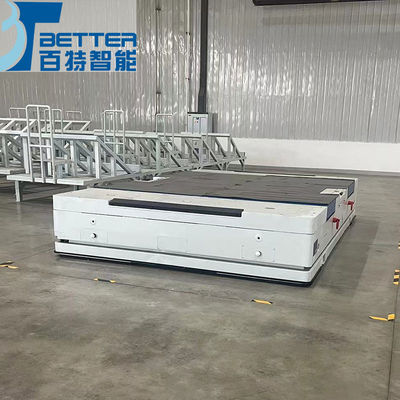

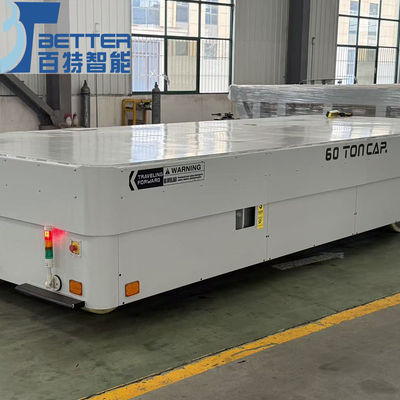

Trackless Transfer Cart Remote Controlled Die Transfer Equipment with Battery and AC Power Options for Press Operations
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | remote controlled trackless transfer cart,battery powered die transfer equipment,AC power press transfer cart |
||
Product Description
Trackless Transfer Cart - Remote Controlled Die Transfer Equipment
This intelligent handling device is specially designed for rapid and safe transfer of heavy molds in stamping, forging, and other press workshops. It integrates remote control, flexible trackless movement, and dual power supply options, solving traditional handling problems of low efficiency, high risk, and crane dependency.
Product Specifications
Core Features
- Load Capacity: Standard models from 10T to 300T, with custom options available
- Mold Compatibility: Low flat design with optional mold-specific saddle for various upper/lower molds
- Walking Mechanism: Heavy-duty steel platform with high-strength universal wheels
- Drive System: Powerful AC motor or hydraulic drive with precise speed control
- Control Mode: Industrial-grade wireless remote control with stable operation
Operational Capabilities
Remote Control Functionality
Operators can remotely control all-directional movements including forward, backward, turning, and in-place rotation from safe distances with clear visibility.
Power Supply Options
- Battery-Powered: Maintenance-free lithium battery pack with unlimited movement range
- AC Power Supply: Direct connection to 380V workshop power for continuous operation
Rapid Mold Positioning
Assists in achieving rough positioning on press worktables, significantly reducing adjustment time.
Safety Features
- Dual emergency stop systems: remote control and vehicle body buttons
- Sound and light operation warnings with anti-collision protection
- Automatic braking for low battery/power-off conditions
- Slope self-locking to prevent rollback
- Optional safety laser scanner for automatic slowdown/stop when detecting personnel
Technical Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L×W×H (mm) | 2000×1500×450 | 3500×2000×500 | 3600×2000×500 | 4000×2000×550 | 4000×2200×550 | 4500×2200×600 | 4500×2200×600 | 5000×2500×650 | 5500×2500×650 | 5600×2500×700 | 6000×2600×800 | 6500×2800×900 | 10000×3000×1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Industry Applications
Mold replacement in automotive manufacturing stamping workshops; Transfer of press molds for appliance and hardware industries; Warehousing and production of die forging molds in forging plants.
Key Advantages
- Low Noise Operation: Minimal noise levels during operation
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly controls with comprehensive training support
- Flexible Movement: Eliminates fixed movement paths with trackless design
Company Expertise
With over 10 years of dedicated experience in intelligent handling equipment for heavy-duty factories, we provide comprehensive solutions for large stamping workshops with standardized manufacturing processes and quality control.
Customer Support
We welcome appointments to visit our exhibition hall or conduct on-site inspections of operational projects to experience the equipment's convenience and stability firsthand.
Quality Assurance
Our products hold multiple utility model patents, including heavy-duty trackless trolley drive steering mechanisms and dual-power seamless switching systems.
Service Commitment
Pre-Sale Services
Free working condition research and customized solutions based on your mold parameters, workshop layout, and production requirements.
After-Sales Support
Professional on-site installation and debugging with comprehensive operation and maintenance training. 12-month warranty with lifetime maintenance support and abundant spare parts supply.
