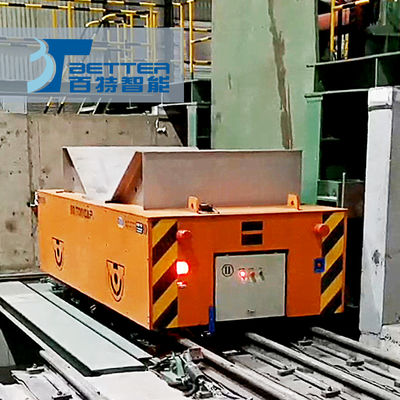

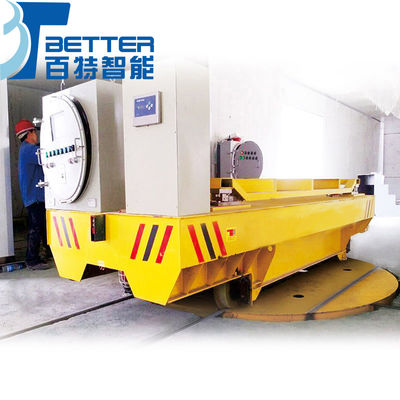

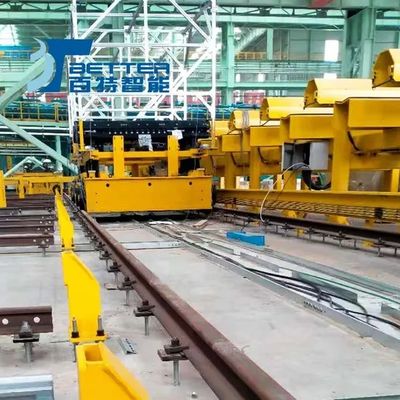

Steel Cross Rail Transfer Cart Engineered for Stable and Cross Track Material Movement in Harsh Industrial Conditions
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cross-rail Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Power Supply Method | Low-Voltage Rail Power Supply |
| Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized | Material | Steel |
| Color | Customized | Control Mode | Remote Control, Ground Control Panel |
| Safety Devices | Audio-visual Alarm, Anti-collision Bumper, Emergency Stop Button | Suitable Environment | Automated Production Line, Warehouse Logistics, Heavy Machinery Workshop |
| Highlight | steel cross rail transfer cart,industrial cross rail transfer cart,cross track material movement cart |
||
Product Description
Steel Cross Rail Transfer Cart
Heavy-duty transfer equipment engineered for stable cross-track material movement in harsh industrial environments including foundries, smelters, and heavy processing workshops.
Core Configuration
- Structure & Material: High-strength steel welded construction with reinforced impact-resistant components and heavy-duty anti-corrosion treatment
- Load Capacity: Standard series from 30 to 150 tons with excellent anti-deformation rigidity
- Walking System: Heavy-duty steel wheel sets with double flanges to prevent derailment
- Drive System: High-torque reduction motor or hydraulic motor for low-speed heavy-load operations
- Power Supply: Cable drum or safety sliding contact line for long-distance horizontal movement
Core Functions
- Cross-track stable transfer between different production lines without secondary hoisting
- Designed to withstand high-temperature radiation, high dust, humidity, and impact loads
- Heavy-load precise positioning with ±3mm accuracy through reliable control systems
- Sturdy mechanical structure with industrial-grade protective components for low failure rates
Safety Configuration
- Mechanical safety with travel limit blocks and buffers
- Electrical safety with motor overheat protection and conventional electrical safeguards
- Emergency manual release device for power failure situations
Customization Options
- Custom span and gauge for specific track spacing requirements

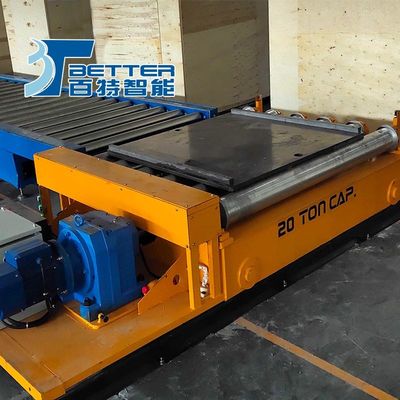

- Specialized carrier platforms including flat plates, slag tank supports, and steel ingot molds
- Special protection solutions such as heat insulation boards and splash protective covers
Industrial Applications
Designed for node workstations in process industries requiring horizontal connection of different tracks:

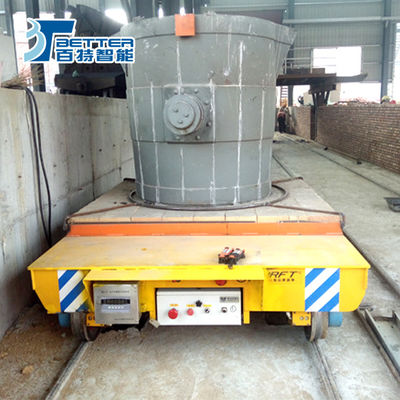

- Steel Metallurgy: Transfer ladles or molten iron tanks between casting lines; move hot steel ingots to rolling lines
- Foundry Industry: Transport molten metal from smelting furnaces to pouring stations
- Heavy Manufacturing: Schedule large components like hull sections and pressure vessels between workstations
Technical Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size L×W×H (mm) | 2000×1500×450 | 3500×2000×450 | 3600×2000×500 | 4000×2000×550 | 4000×2200×550 | 4500×2200×600 | 4500×2200×600 | 5000×2500×650 | 5500×2500×650 | 5600×2500×700 | 6000×2600×800 | 6500×2800×900 | 10000×3000×1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Key Advantages
- Low Noise Operation: Engineered for minimal noise levels in industrial environments
- Maximum Safety: Comprehensive safety features protecting operators and materials
- Easy Operation: User-friendly design with comprehensive support for optimal performance
- Easy Integration: Operates on standard floors without complex permanent installation
- Versatile Weight Handling: Modular fabrication supports loads from small to extremely heavy (up to 300 tons)
Packaging & Shipping
- Dimensions under 6m length and 2.2m width: 20ft container
- Length 5.9m-12m: 40ft container
- Multiple units (2-3 sets): Full container shipment
- Single unit: LCL container options available
- Oversized dimensions: Flat rack (20/40ft) or bulk cargo solutions
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
Transfer carts offer dedicated workplace material shuttling, accommodate long loads through restrictive passages, provide affordable heavy-load handling, feature compact designs for limited spaces, and offer customizable deck configurations.
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of heaviest load
- Dimensions (Length, Width, Height)
- Trip time and frequency requirements
- Travel area specifications and distance
- Other relevant operating conditions
Manufacturer Information
Henan PETTER Handling Equipment Co., Ltd. specializes in designing and manufacturing flat transfer trolleys to solve every material handling requirement. Our product line includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolleys, Scissor Lift Tables, Turntables, and other specialty items.
