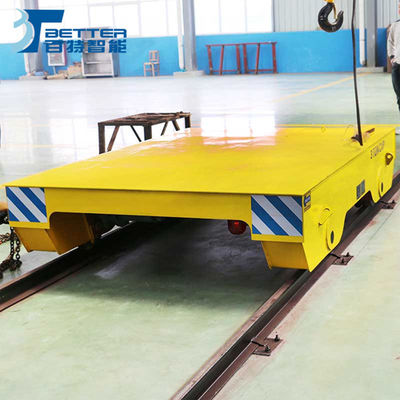

Battery-Powered Transfer Cart with 1-300ton Load Capacity and Customizable Options for Heavy Duty Material Transportation
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Running Speed | 0-25 M/min |
| Motor Power | 0.8-15 Kw | Wheel Diameter | 270-600 Mm |
Product Description
1-300t Cross Rail Transfer Cart - Rails to Trails Movement Solution
Battery Powered Rail Transfer Cart is an electric transport solution powered by internal batteries. The electrical control system manages DC traction motors to control start, stop, advance, retreat, and speed control functions.
This industrial rail transfer cart features simple structure, convenient operation, large carrying capacity, easy maintenance, and long service life. Its convenience, economy, practicality, and easy cleaning make it the preferred transport solution for moving heavy objects along fixed routes.
Product Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power (KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partial product transfers between stations
- Sub-Assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support (stand-off deck) for navigating loads within plant facilities
- Material shuttle for steel tubing (flat decking with guard rails)
- Elevating platform for assembly processes (integrated screw-jack table)
- Sand casting (flat decking)
How can Transfer Carts be customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length; Width; Height)
- Trip time and frequency (# of Trips per shift, Shifts per day)
- Travel area requirements (Rail/cement floor, Indoor/Outdoor, straight line travel, etc.)
- Distance to travel
- Other relevant information or using conditions
- Low noise - Operates with minimal noise levels
- Maximum safety - Ensures operator safety and material handling security
- Easy operation - User-friendly design for immediate operational capability
- Easy implementation - Operates on standard floors without complex installation
- Suitable for all weights - Modular fabrication supports payloads up to 300 tons per trolley
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container
For length between 5.9m and 12m: Transported by 40ft container
Multiple sets (2-3): Full container transport
Single set: LCL Container transport
For width beyond 2.2m with length less than 12m: Flat rack transport (20 or 40 ft)
Equipment beyond above dimensions: Bulk cargo transport considered based on quantity
Contact us for detailed certification information and compliance documentation.
