Cross Rail Transfer Cart Rails To Trails Move For People With Railroad Transfer Cart
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300 Ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Table Size | 2000*2000*500 Mm |
| Running Speed | 0-25 M/min | Motor Power | 0.8-15 KW |
| Wheel Diameter | 270-600 Mm | Ground Clearance | 50-75 Mm |
Product Description

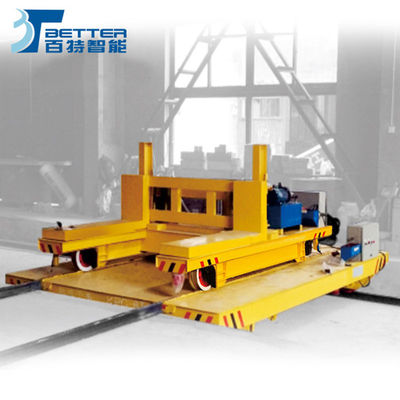

Cross Rail Transfer Cart - Rails To Trails Movement System
Product Overview
A track-powered horizontal transfer vehicle specially designed for cross-track layout that achieves 90° directional change between longitudinal and lateral tracks, solving material transfer challenges between vertical direction tracks.
Core Configuration
- Load capacity: 5 tons to 150 tons, customizable as per requirements
- Walking method: Longitudinal walking + Lateral walking (90° direction change)
- Power supply method: Lithium battery / Lead-acid battery / Cable reel / Contact cable (optional)
- Drive system: Frequency conversion motor drive, speed range 0-25 meters per minute with stepless speed adjustment
- Shifting mechanism: Hydraulic lifting + slewing bearing for smooth lifting and accurate positioning
- Control mode: Wireless remote control + Onboard line control dual mode
Core Functions
- Bidirectional operation: Performs longitudinal and lateral movement on intersecting tracks
- Smooth and reliable reversing: Hydraulic-driven platform rises, lowers, rotates 90°, and completes reversing
- Precise positioning and docking: Encoder + proximity switch / laser ranging with ±5mm accuracy
- Wireless flexible operation: Battery-powered for cable-free navigation through complex track networks
Safety Configuration
- Emergency stop button (vehicle body and remote control configurations)
- Sound and light alarm + Anti-collision buffer strip
- Electromagnetic braking with automatic braking in case of signal loss
Customization Options
- Customizable countertop size and load-bearing capacity
- Optional V-shaped saddle seat, T-shaped slot platform, and lifting platform
- Upgrade to PLC automatic control with multiple docking stations preset
- Optional track sweeper to prevent foreign objects from getting stuck
Product Parameters
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Applications
- Workshop cross-track system: Transfer of molds, workpieces and raw materials between vertical tracks
- Parallel production line connection: Transfer materials from production line A to production line B
- Railway network nodes: Replace traditional turntables for flexible multi-directional rail connections
- Warehouse and production area connection: Transfer materials from warehouse tracks to workshop production lines
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partially completed products
- Sub-Assembly shuttle from one line to another line
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within plant facilities
- Material shuttle for steel tubing
- Elevating platform for assembly processes
- Sand casting operations
How can Transfer Carts be customized?
Please provide the following information for customization:
- What load or product will be transferred onto the cart?
- Weight of the heaviest lift or load
- Dimensions (Length; Width; Height)
- Trip time and frequency (# of Trips per shift, Shifts per day)
- Travel area requirements (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- Distance to travel
- Other relevant information or using conditions
Our Advantages
- Low noise operation with minimal noise level
- Maximum safety guarantee for operators and handled materials
- Easy operation with user-friendly driving controls
- Easy implementation into manufacturing processes without complex installation
- Suitable for all kinds of weight with modular fabrication and payloads up to 300 tons
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container. For length between 5.9m and 12m: Transported by 40ft container. Multiple sets can be transported by full container, single sets by LCL Container. For equipment beyond standard dimensions: Transported by flat rack or bulk cargo.
