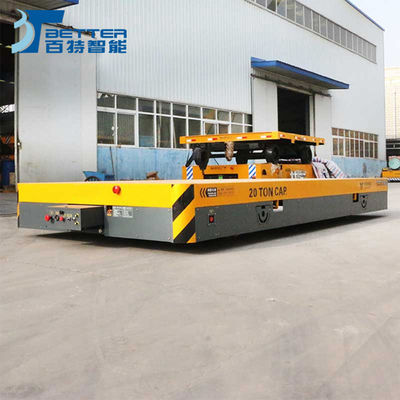

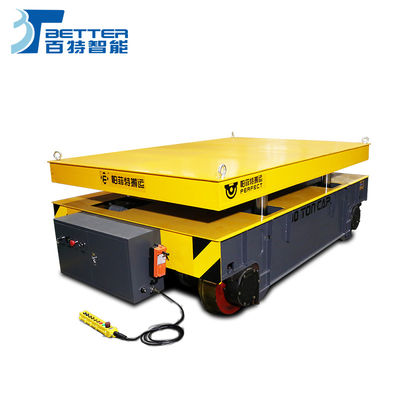

Battery Powered Hydraulic Lifting Transfer Car For Die Plant Cargo Handling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | battery powered hydraulic lifting cart,die plant cargo handling cart,trackless transfer cart with warranty |
||
Product Description

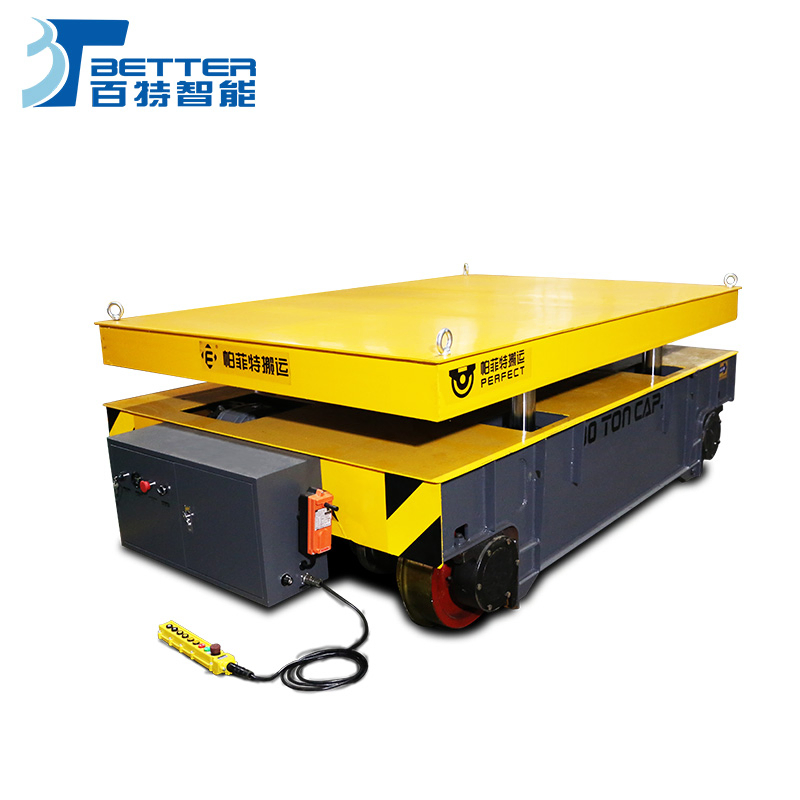

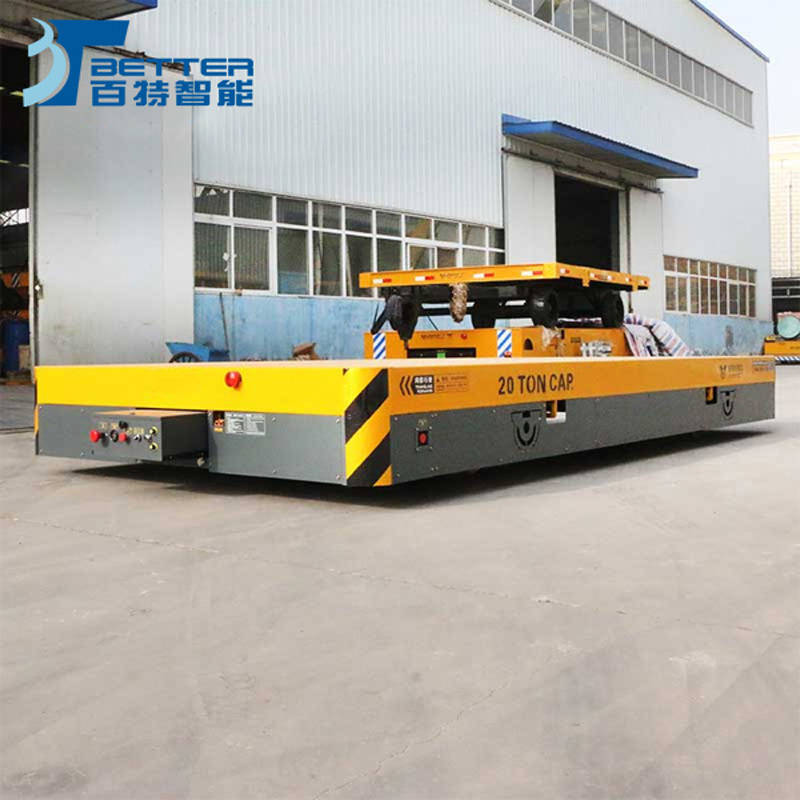

Battery Powered Hydraulic Lifting Transfer Car
Multi-functional material handling equipment specifically designed for mold manufacturing, maintenance, and usage facilities. Combines battery-powered flexibility with hydraulic lifting capacity for efficient, safe transfer and precise positioning of heavy molds, mold bases, workpieces, and raw materials throughout workshop operations.
Core Configuration
- Power System: Industrial lithium battery pack with zero emissions, unlimited movement range, and fast charging/battery swapping
- Lifting System: Hydraulic lifting with capacity from 5 to 300 tons and lifting stroke up to 300-600mm
- Walking Drive: DC traction motor or hydrostatic drive for low speed and high torque
- Control Method: Wireless remote control with optional wired flashlight switch
- Load-bearing Platform: Heavy-duty steel structure with anti-slip steel plates or T-slots
Core Functions
- Cable-Free Handling: Battery-powered operation allows free movement throughout the workshop without cable constraints
- Heavy-Duty Precise Lifting: Hydraulic system provides smooth, powerful lifting for molds and workpieces from several tons to tens of tons
- Multi-Functionality: Adaptable to various mold sizes and shapes with simple fixture replacements
- Micro-Movement Positioning: Low-speed crawling gear for precise positioning with press or machining center worktables
Safety Configuration
- Lifting Safety: Mechanical lock valve prevents accidental descent with overload protection
- Driving Safety: Emergency stop buttons on remote control and vehicle body, low battery speed limit/alarm, sound and light warnings
- Structural Safety: Low center of gravity design with platform fences or blocks to prevent workpiece sliding
Customization Options
- Platform Customization: Rotating platforms, side-shifting functions, or angle tilting platforms for mold flipping and centering
- Specialized Tooling: Mold-specific saddles, vacuum suction cups for large flat molds, or automatic positioning pins
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Applications
Designed for internal material handling throughout mold manufacturing and usage processes:
- Mold assembly and maintenance area: Transfer and lifting positioning between assembly tables, inspection tables, and maintenance areas
- Stamping/injection molding workshop: Mold replacement and transportation between mold library and press/injection molding machines
- Raw materials and semi-finished products warehouse: Handling and stacking of large die steel billets and semi-finished die frames
Frequently Asked Questions
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partial products
- Sub-Assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within plant facilities
- Material shuttle for steel tubing
- Elevating platform for assembly processes
- Sand casting (flat decking)
How can Transfer Carts be customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of heaviest lift or load
- Dimensions (Length, Width, Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area requirements (rail/cement floor, indoor/outdoor, straight line travel)
- Distance to travel
- Other relevant information or usage conditions
Our Advantages
- Low Noise: Minimal noise level operation
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly driving with comprehensive support
- Easy Implementation: Operates on standard floors without complex installation
- Suitable for All Weights: Modular fabrication handles both small and extremely large loads up to 300 tons
Packaging & Shipping
- Length < 6m, width < 2.2m: Transported by 20ft container
- Length 5.9m-12m: Transported by 40ft container
- 2-3 sets: Full container transport
- 1 set: LCL Container transport
- Length < 12m, width > 2.2m: Flat rack transport (20 or 40 ft)
- Beyond above dimensions: Bulk cargo transport
