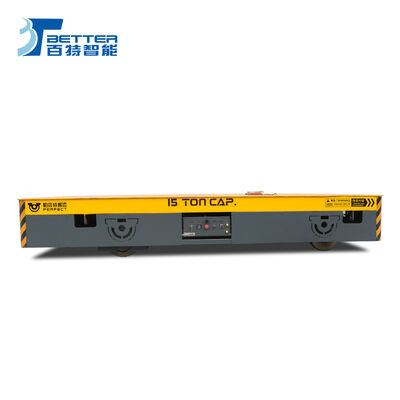

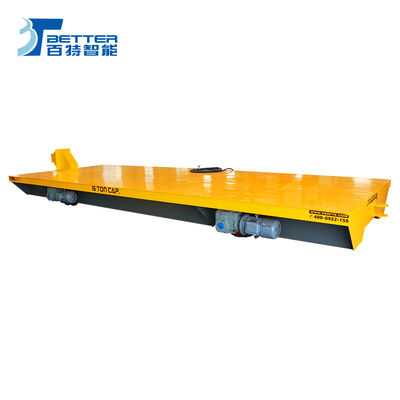

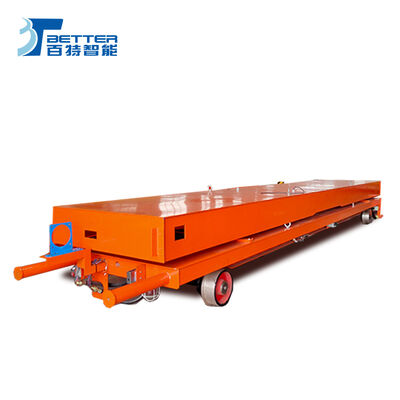

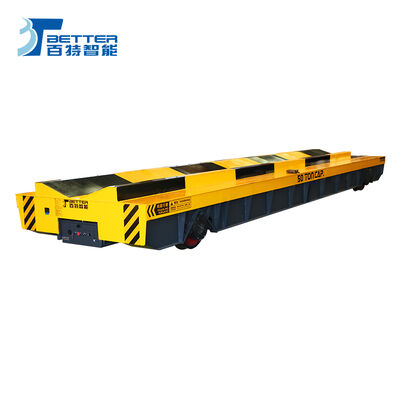

High Maneuverability Electric Driven 30 Tons Load Transfer Trolley For Handling Heavy Material
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | ||
| Highlight | 30 ton electric rail transfer cart,heavy material handling trolley,high maneuverability load transfer cart |
||
Product Description
High Maneuverability Electric Driven 30 Tons Load Transfer Trolley
This electric-driven heavy-duty handling equipment combines excellent maneuverability with strong 30-ton load-bearing capacity. Designed for efficient and precise transportation of heavy materials in space-constrained environments within heavy industries, large-scale manufacturing, and logistics hubs.
Core Configuration
- Load Capacity: Rated at 30 tons with highly rigid vehicle body structure optimized for high mobility
- Drive System: High-torque permanent magnet synchronous electric drive axle with rapid power response
- Power System: High energy density lithium battery pack supporting intense continuous operation
- Steering System: Full-wheel hydraulic power-assisted or four-wheel independent electronically controlled steering
- Control Mode: Panoramic driver's cabin or industrial-grade wireless remote control dual mode
Core Functions
- Superior Maneuverability: Multiple steering modes enable flexible navigation in narrow passages with minimum turning radius reduced by over 50% compared to traditional vehicles
- Precise Positioning: Advanced line-controlled steering and drive technology enables centimeter-level parking accuracy
- Powerful Performance: Electric drive system provides instantaneous high torque and strong heavy-load starting capabilities
- Intelligent Energy Management: Optimizes energy consumption and extends range with real-time vehicle status feedback
Safety Features
- Active Safety Perception: 360° surround-view camera system with millimeter-wave/sound wave radars for blind spot monitoring
- Stability Control: Integrated load and center of gravity monitoring system for stability assistance
- Multiple Braking Safeguards: Energy recovery braking, electric braking, hydraulic braking, and mechanical parking brake redundancy
- Operational Safety: Ergonomic driver's cab and safe operator positioning in remote control mode
Customized Functions
- Platform Customization: Integration of hydraulic lifting, lateral movement, rotating platform, or specialized fixtures
- Navigation & Automation: Upgrade to laser SLAM navigation for semi-automatic or fully automatic driving
- Environmental Adaptability: Enhanced protection for dusty, humid, or mild corrosive environments
Product Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Designed for High-Flexibility Applications
- Heavy Equipment Manufacturing: Efficient transportation of large structural components and engine assemblies
- Steel and Non-Ferrous Metals: High-density stacking and picking operations for steel coils and plates
- Port and Railway Freight Yards: Rapid transfer and alignment of containers in crowded storage areas
- Large-Scale Engineering Projects: Transporting prefabricated bridge sections and large modules at construction sites
Manufacturing Process
- CNC Cutting: Transport steel plates to cutting workshop for precision cutting
- Preliminary Assembling: Assemble cut steel plates according to design specifications
- Welding: Automated welding of steel plate components
- Post Weld Treatment: Testing, polishing, burring, and stress elimination
- Spray Primer: Zinc-rich epoxy antirust paint application in two layers
- Assembling: Integration of wheels, motors, and gear boxes
- Paint Finish: Final painting and inspection
- Debugging: Electrical system testing with no-load and load testing
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
Transfer carts offer dedicated material handling solutions with excellent affordability for heavy loads. Their compact design works well in limited floor areas, and custom deck configurations accommodate specific load requirements better than standard lift trucks.
What Product Handling Applications Use Transfer Carts?
- Coils (V-Groove deck)
- Tanks and uniformly distributed loads
- Assembly fixtures for complete builds or partial products
- Sub-assembly shuttle between production lines
- Maintenance carts for motors and pumps
- Equipment support with stand-off decking
- Material shuttle for steel tubing with guard rails
- Elevating platforms for assembly processes
- Sand casting on flat decking
How Can Transfer Carts Be Customized?
Please provide the following information for customization:
- Type of load or product to be transferred
- Weight of heaviest load
- Dimensions (Length × Width × Height)
- Trip time and frequency
- Travel area specifications (rail/cement floor, indoor/outdoor)
- Travel distance
- Other relevant usage conditions
Our Advantages
- Low Noise Operation: Minimal noise level for improved working environment
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly driving with comprehensive support
- Easy Implementation: Operates on standard floors without complex installation
- Suitable for All Weights: Modular fabrication handles both small and extremely large loads up to 300 tons
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container. For length between 5.9m and 12m: Transported by 40ft container. Multiple sets can be shipped in full containers, single sets via LCL Container. For widths beyond 2.2m or lengths beyond standard dimensions: Transported by flat rack or bulk cargo.
