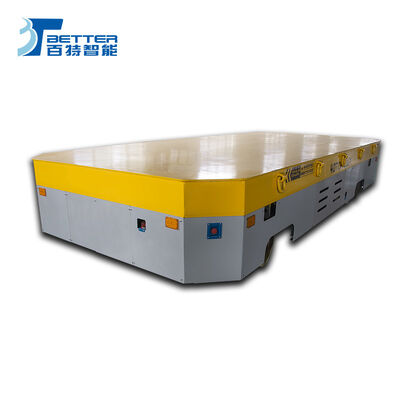

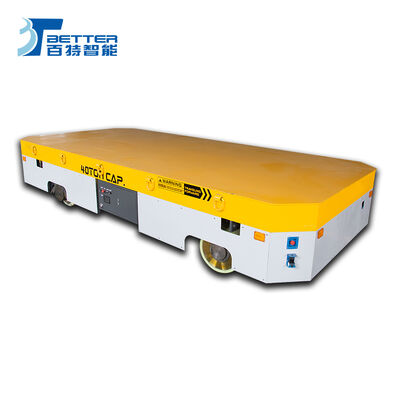

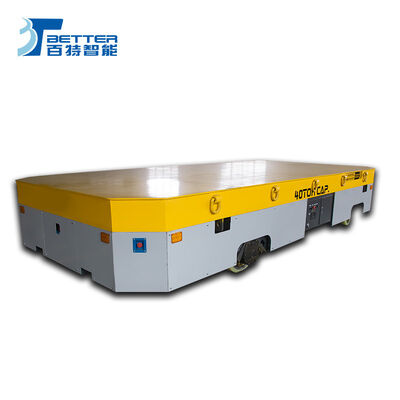

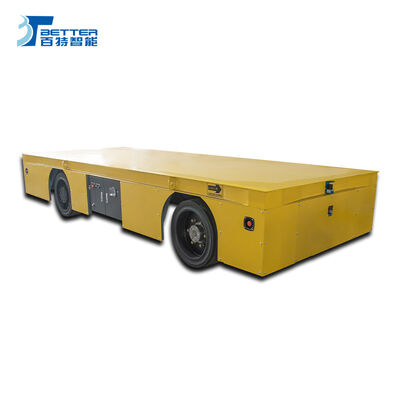

Customizable Trackless Transfer Cart Electric Platform Trolley for Manufacturing Execution Systems Integration
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month |
Product Description
Customizable Trackless Transfer Cart Electric Platform Trolley
Designed for Manufacturing Execution Systems Integration in intelligent manufacturing factories. This railless electric transfer platform vehicle features modular design with flexible configuration options for various process requirements.
Core Configuration
- Load Capacity: 1 ton to 1,500 tons
- Power System: High energy density lithium iron phosphate battery pack with 8-12 hour range, supports rapid battery swapping
- Drive System: Servo motor drive with optional two-wheel drive, four-wheel drive or omnidirectional wheel sets
- Navigation: Laser SLAM natural navigation, QR code/magnetic pin navigation, and inertial navigation
- Control Modes: Wireless remote control, vehicle-mounted touch screen, and MES remote scheduling
- Safety System: 360° laser radar collision prevention, load center of gravity monitoring, multiple braking redundancy, audible and visual warnings
Detailed Features
Customizable Modular Platform
- Vehicle modules: V-shaped saddle seat, roller line, lifting platform, grippers
- Function expansion: Optional hydraulic lifting, platform rotation, side movement
- Size flexibility: Custom length, width, and height for various material sizes including long pieces, irregular shapes, and ultra-wide pieces
Safety Configuration
- 360° all-round collision prevention with multiple line laser radars, ultrasonic sensors, and mechanical anti-collision strips
- Multiple emergency stop buttons around vehicle body and remote control
- Automatic braking in case of signal loss
Customization Options
- Platform customization: Dimensions, shape, and ground clearance tailored to workpiece requirements
- Special carriers: V-shaped saddle seats, T-shaped slot platforms, roller lines, clamping devices, air-floating platforms
- Environmental adaptability: Explosion-proof, clean room, high-temperature resistant, and low-temperature resistant versions available
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
Applications
Designed specifically to meet the digital and flexible logistics requirements of intelligent manufacturing factories:
- Automobile Component Manufacturing: JIT precise distribution of engines, gearboxes, and seats among assembly lines, linked with MES system for material error prevention
- Electronics and Semiconductors: Clean room collaboration with MES system for precise traceability and automatic circulation of wafer boxes and PCB boards
- Aerospace: Precise alignment and real-time status reporting of aircraft structural components and engine parts on digital assembly lines
- Heavy Machinery: Automatic transfer of large structural components among welding, machining, and painting processes with real-time production status updates
- Pharmaceuticals and Medical Devices: Clean transfer in accordance with GMP standards, linked with MES system for batch traceability and electronic batch records
- New Energy Batteries: Automatic distribution and data binding of battery cells, modules, and PACK packages during charging, aging, and assembly processes
Customization Inquiry
To customize your transfer cart, please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc.)
- What is the distance to travel?
- Other relevant information or using conditions
Our Advantages
- Low Noise: Causes low noise level during operation
- Maximum Safety: Offers guarantee of maximum safety for operators and materials handled
- Easy Operation: Easy to drive and operate for immediate use upon delivery
- Easy Implementation: Operates on standard floors without complex or permanent installation
- Suitable for All Weights: Modular fabrication supports both small and extremely huge loads up to 300 tons per trolley
