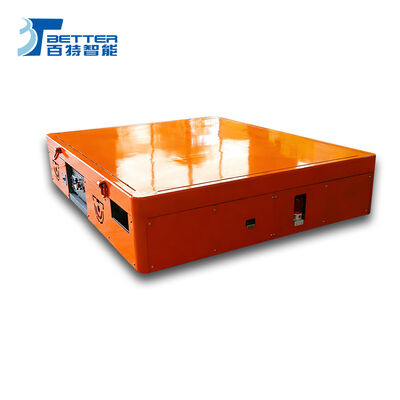

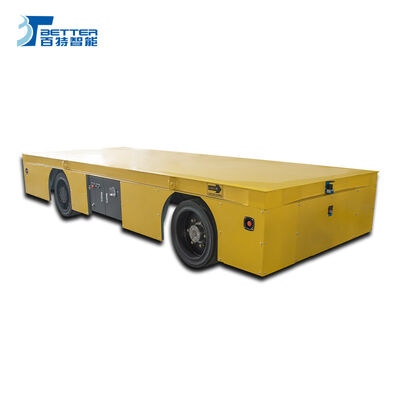

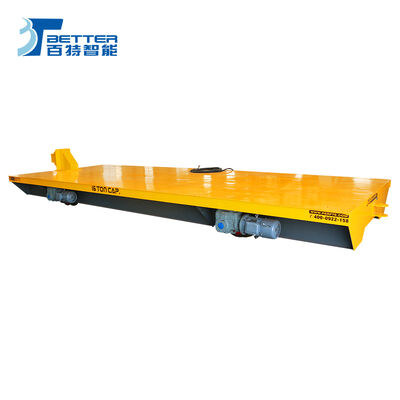

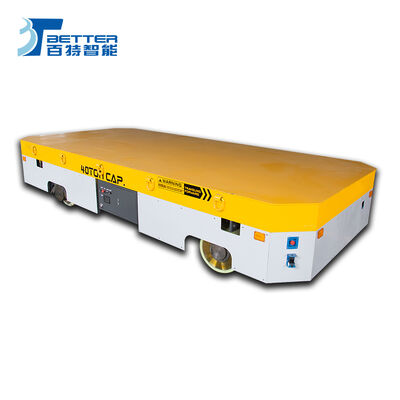

Heavy Duty Battery Powered Trackless Transfer Cart with Heat Resistant Materials for Foundries and Steel Mills
Product Details
| Product Name | Battery-Power Transfer Cart | Usage | Heavy Duty Material Transportation |
|---|---|---|---|
| Load Capacity | 1-300ton | Special Function | Anti-Explosion,Heat-Resistant,Lifting,Customized |
| Material | Steel | Transport Package | The Whole Cart Will Be Packed By Tarp. |
| Specification | 2000*2000*500 | Trademark | BETTER |
| Origin | Xinxiang | HS Code | 84289090 |
| Production Capacity | 50 Sets/Month | Dimensions | 2000*2000*500 |
| Wheel Diameter | 270-600mm | Running Speed | 0-25m/min |
| Battery Voltage | 48-72V |
Product Description
Heavy Duty Trackless Transfer Cart
Engineered to withstand extreme industrial environments, including prolonged exposure to high temperatures and highly abrasive conditions. Constructed with heat-resistant materials, reinforced plating, and sealed components, it maintains operational integrity while transporting molten materials, hot castings, or abrasive raw goods.
Its heavy-duty chassis and specialized wheel systems resist deformation and wear, ensuring reliable performance in foundries, steel mills, or cement plants. Equipped with advanced cooling and dust-protection systems, the cart enables safe, continuous material handling where standard equipment would fail.
This durable solution minimizes downtime, extends service life, and supports efficient logistics in the most demanding settings.
Detailed Photos
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size Length (mm) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Size Width (mm) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Size Height (mm) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Total Power (kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 |
| Battery Capacity (Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 |
| Running Distance for One Charge (km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
Application
Reliable Transportation for Extreme Environments
Designed specifically for high-temperature, dusty and high-wear working conditions, featuring outstanding heat resistance and structural robustness to ensure stable performance of heavy material handling tasks in harsh environments such as casting and metallurgy.
Safe High-Temperature Material Handling
With dedicated thermal protection and wear-resistant design, it can safely and reliably transport high-temperature loads such as red-hot billets and molten metal containers, significantly reducing production safety risks.
Optimized Production Logistics
Establishes flexible connections among production links such as high-temperature heat treatment and cleaning and grinding to reduce equipment reliance and enhance the coherence and efficiency of the entire process flow.
Persistent Operation in Harsh Conditions
Enhanced vehicle body, high-temperature resistant components and anti-wear design effectively counteract thermal stress and abrasive wear, ensuring long service life and low failure rate under harsh conditions.
Customization FAQ
How can Transfer Carts be customized? Please provide the following information:
- What load or product will be transferred onto the cart?
- What is the weight of the heaviest lift or load?
- What are the dimensions? (Length; Width; Height)
- What is the trip time and frequency? (# of Trips per shift, Shifts per day)
- What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
- What is the distance to travel?
- Other relevant information or using conditions
Our Advantages
- Low Noise: Causes low noise level during operation
- Maximum Safety: Offers guarantee of maximum safety for operators and materials handled
- Easy Operation: Vehicles are easy to drive and operate with minimal training
- Easy Implementation: Operates on standard floors without complex or permanent installation
- Suitable for All Weights: Modular fabrication supports payloads up to 300 tons per trolley
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m, transportation is via 20ft container. For length between 5.9m and 12m, 40ft container is used. Multiple sets can be transported by full container, while single sets use LCL Container.
For equipment with length less than 12m but width beyond 2.2m, flat rack containers (20 or 40 ft) are required. Equipment beyond these dimensions requires bulk cargo shipping.
